DTC P0133: O2S Circuit. Slow Response. Sensor 1.: Notes

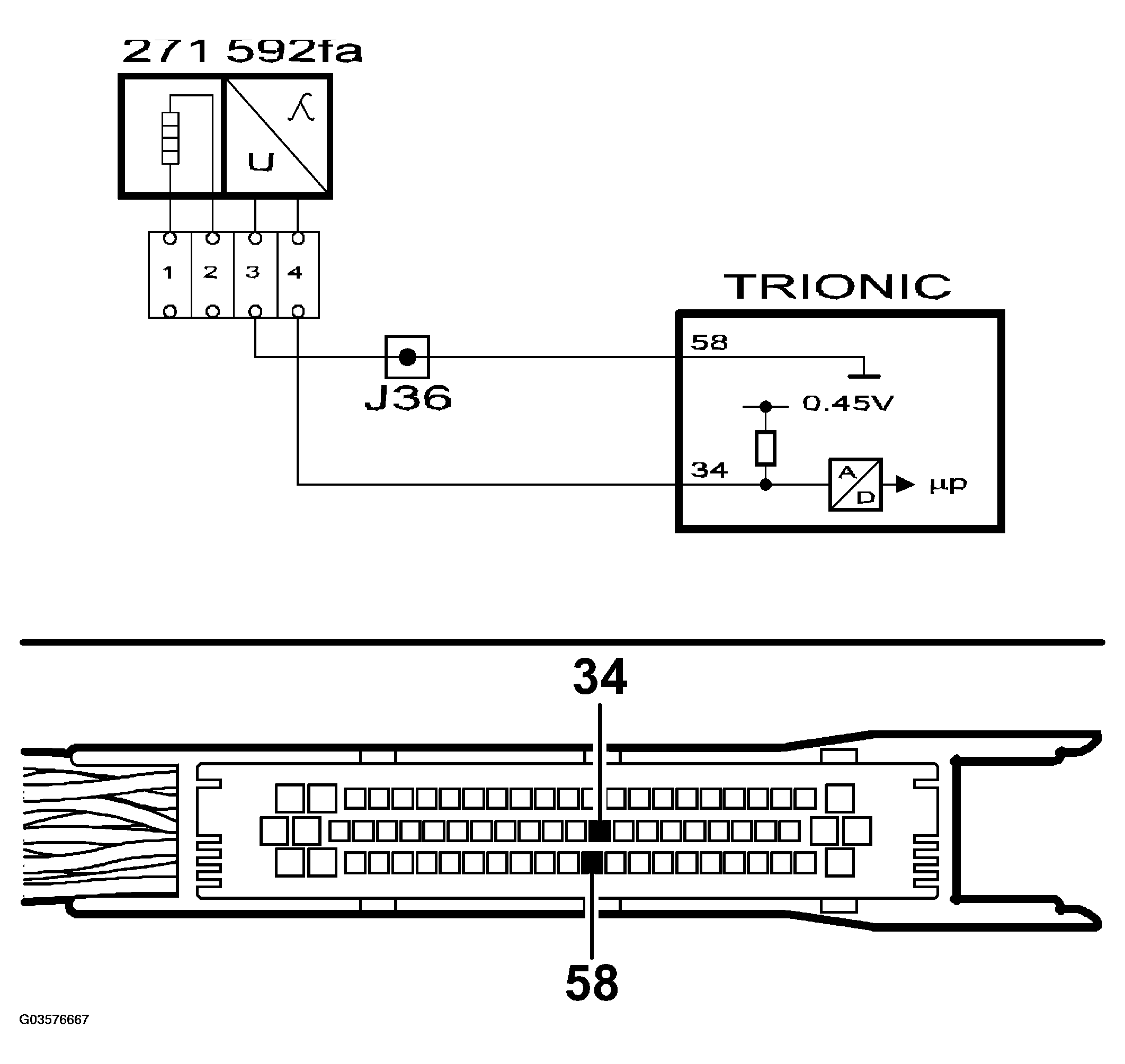

Fig 1: O2S Circuit Diagram - Slow Response - Sensor 1
G03576667Courtesy of SAAB-SCANIA OF AMERICA, INC.
