DTC P1131: O2S. Switch point - lean. Sensor 1: Notes

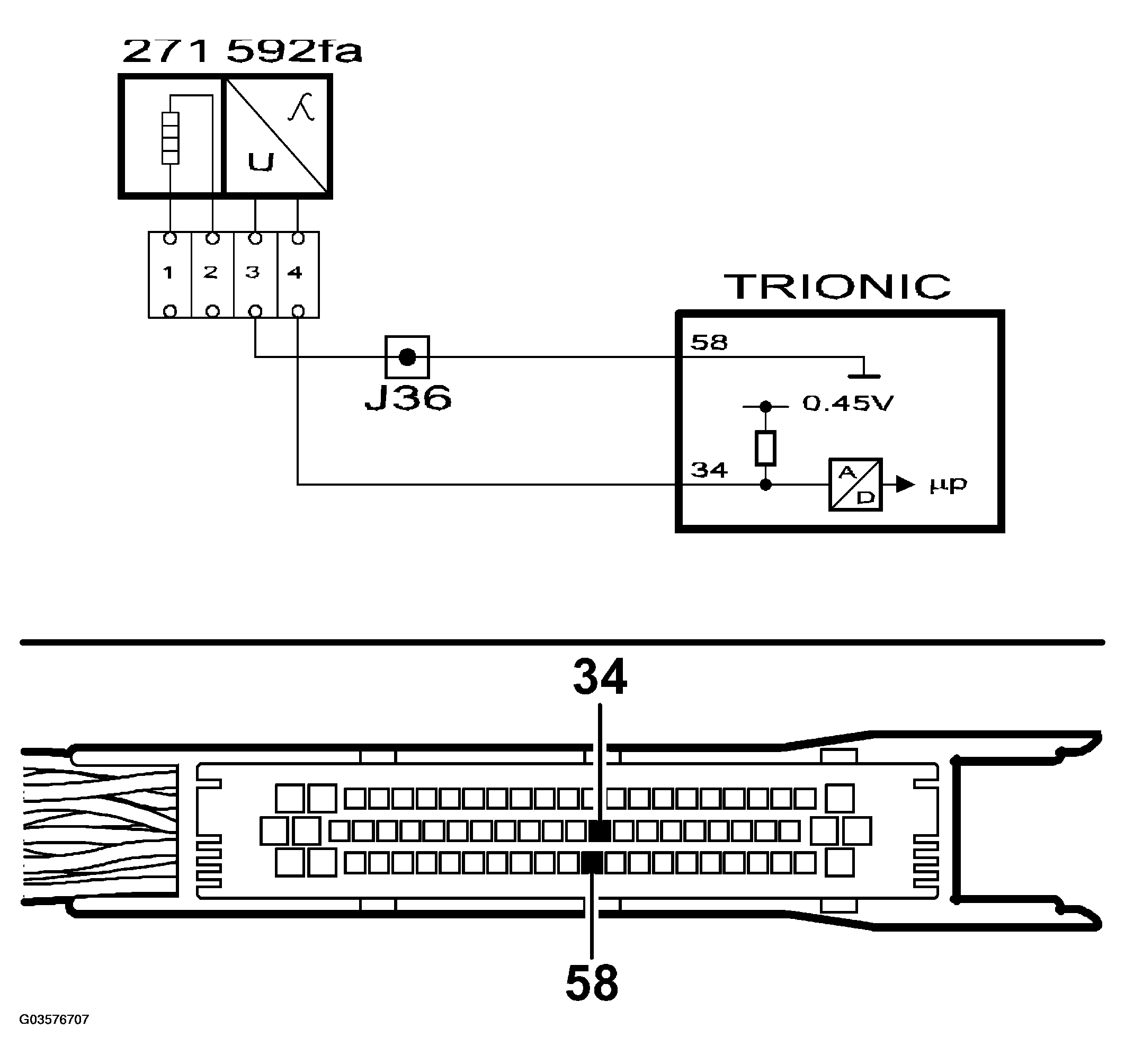

Fig 1: Circuit Diagram - O2S. Switch Point - Lean (Sensor 1)
G03576707Courtesy of SAAB-SCANIA OF AMERICA, INC.
