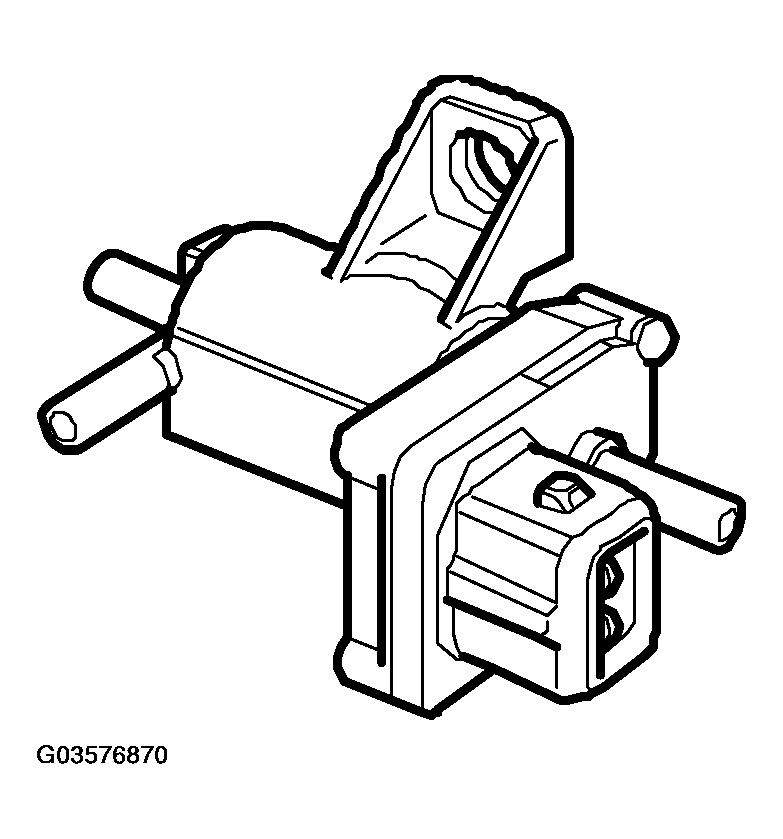

Control valve, bypass (605)
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - CONTROL VALVE, BYPASS
| Location |
|
In engine bay on bulkhead |
| Characteristics |
|
Zero current closed |
| Resistance at 20°C (68°F) |
Ohms |
40+/-5 |
When the solenoid valve is unenergized, the bypass valve control line is connected after the throttle.
