EVAP pressure sensor (585)

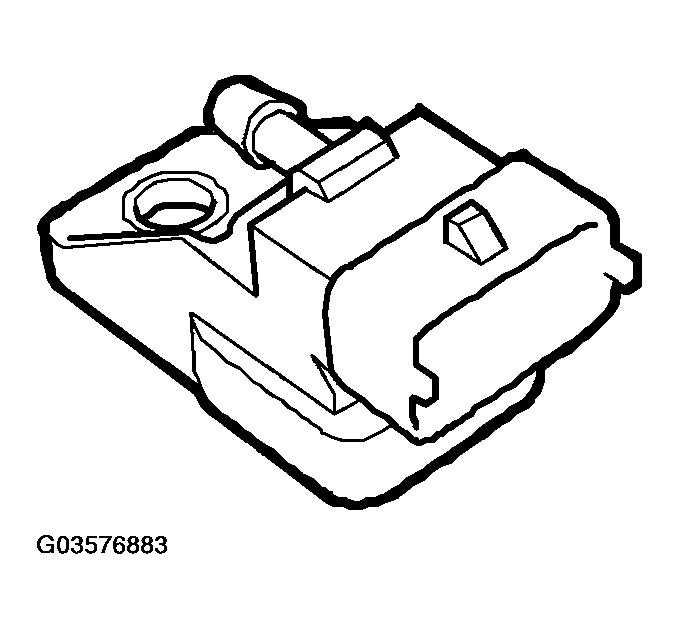

Fig 1: Identifying EVAP Pressure Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

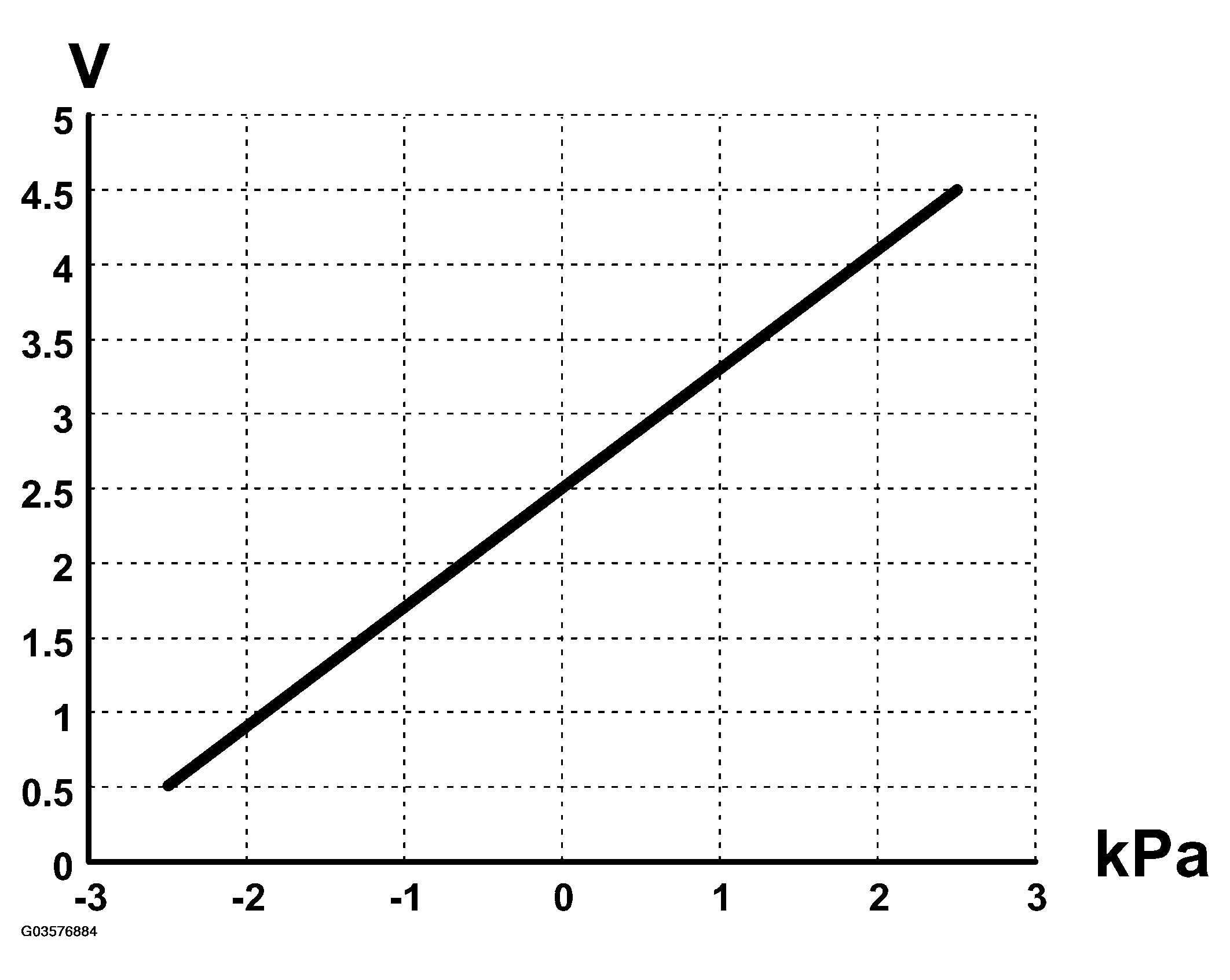

Fig 2: EVAP Pressure Graph

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - EVAP PRESSURE SENSOR

Location		On fuel tank by fuel pump
Power supply	V	5
Differential pressure
-3.7 kPa ( -0.37 bar)	V	approx. 0.5
0 kPa (0 bar)	V	approx. 2.5
1.2 kPa (0.012 bar)	V	approx. 4.5

The pressure sensor determines the difference in pressure between the tank and the atmosphere, and supplies the control module with a proportional voltage.
