Intake air temperature sensor (407)

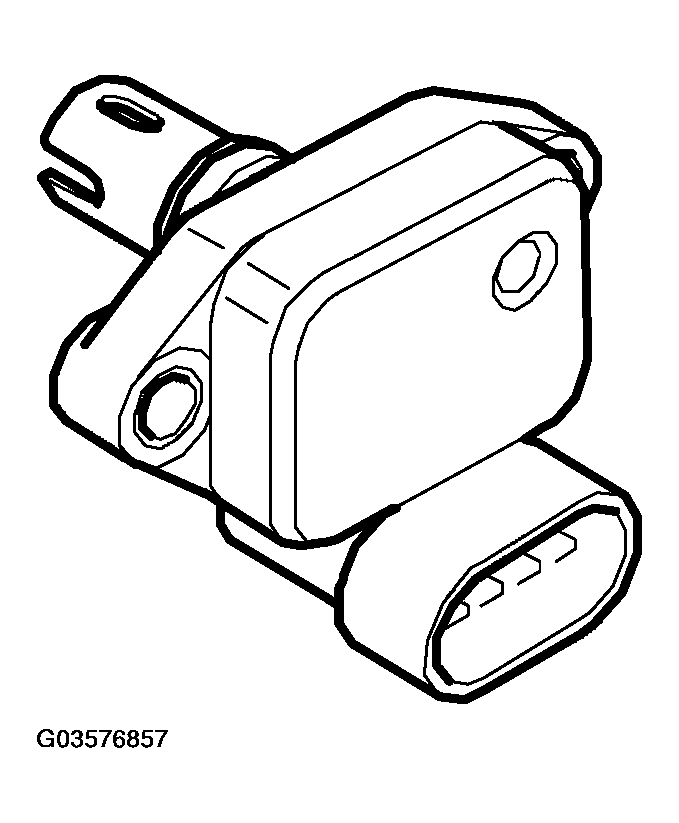

Fig 1: Identifying Intake Air Temperature Sensor

G03576857

Courtesy of SAAB-SCANIA OF AMERICA, INC.

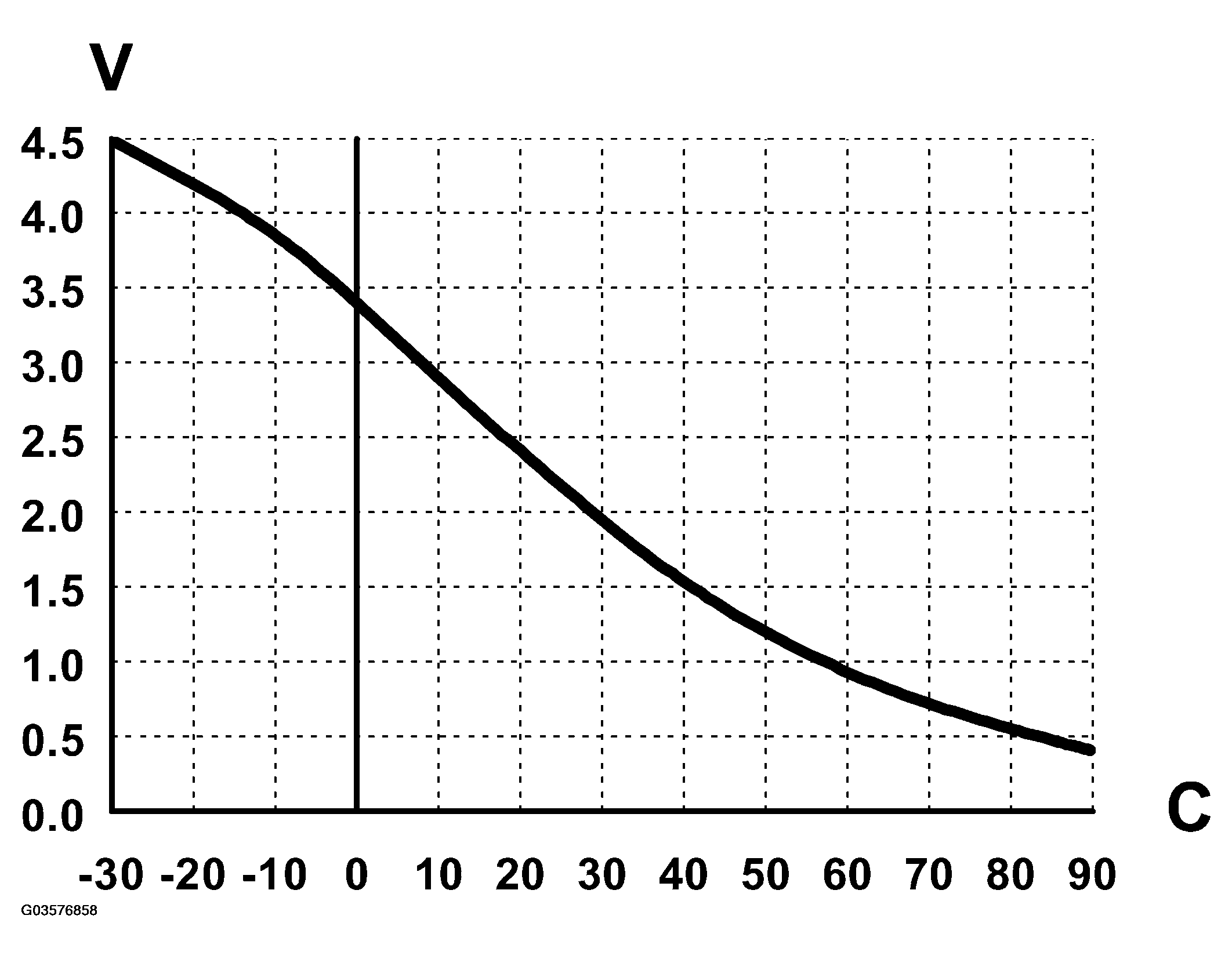

Fig 2: Intake Air Temperature Graph

G03576858

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - INTAKE AIR TEMPERATURE SENSOR

Location		On intake manifold
°C (°F)	kohm	V
-30 (-22)	20--30	approx. 4.5
-10 (14)	7.0--11.4	approx. 3.9
20 (68)	2.1--2.9	approx. 2.4
40 (104)	1.0--1.3	approx. 1.5
60 (140)	0.565--0.670	approx. 0.9
80 (176)	0.295--0.365	approx. 0.54
90 (194)	0.24--0.26	approx. 0.41

Power supply 5 V through a 2.74 kohm resistor in the control module.
