Relay, A/C (156): Notes

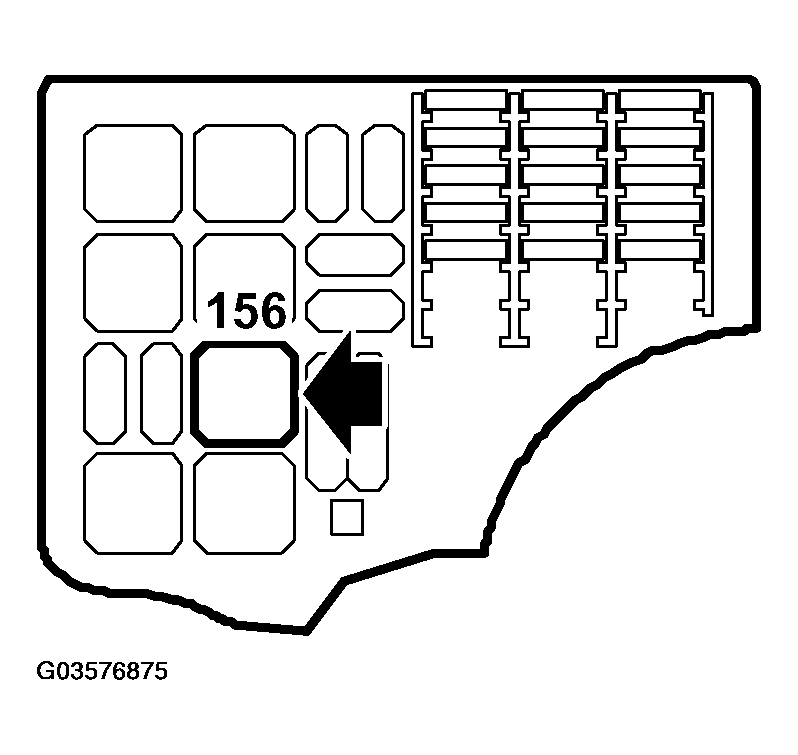

Fig 1: Identifying A/C Relay
G03576875Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - A/C RELAY

Location   In engine bay main relay board
Resistance, winding at 20°C (68°F) Ohms 85+/-5
Nominal control voltage V 12
Rated current A 30
