To remove

  1. Ignition key in the position LOCK.
  2. Removing the passenger seat.
  3. Release the handbrake.
  4. Remove the center console's front side panel.

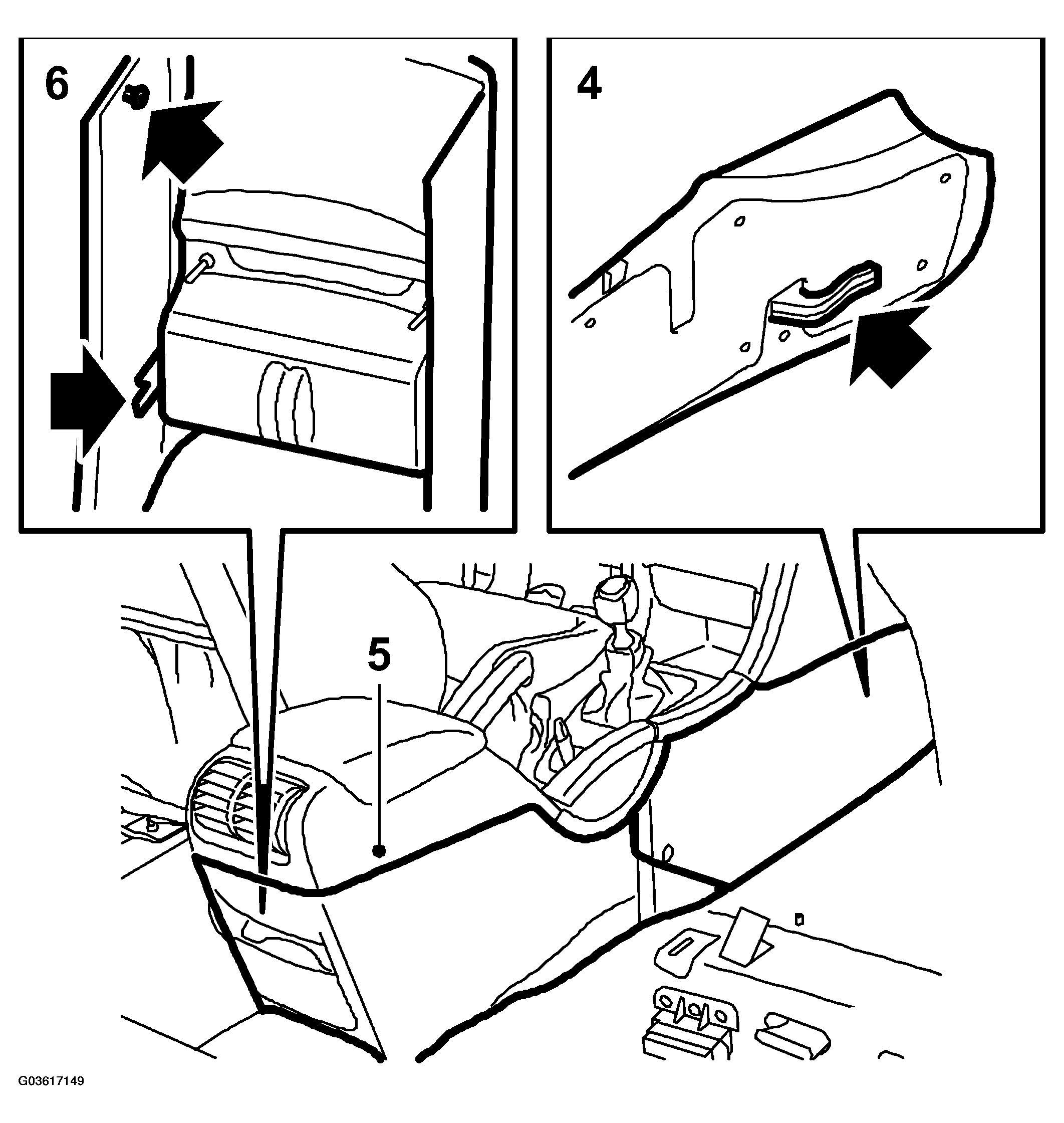

    Fig 1: Illustration For Step 4 And 5
    G03617149Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the center console's rear side panel.
  6. Remove the center console's rear cover.
  7. Dismantle the connector to the ignition switch.
  8. Remove the rear legroom adjuster screws on the center console's aluminum frame.

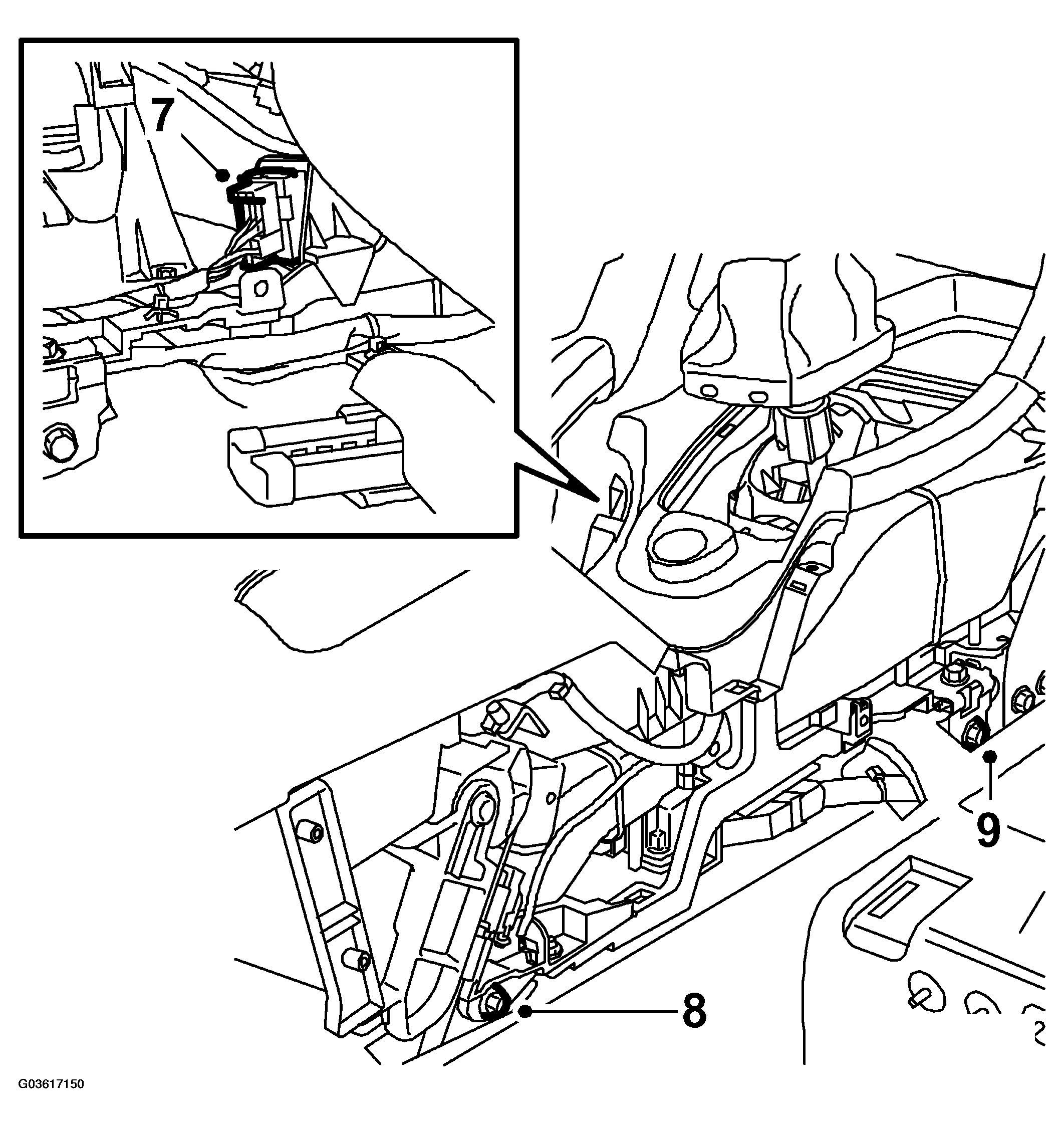

    Fig 2: Illustration For Step 7 To 9
    G03617150Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Remove the front legroom adjuster screws on the center console's aluminum frame.
  10. Dismantle the screws that hold the Airbag Control Module.

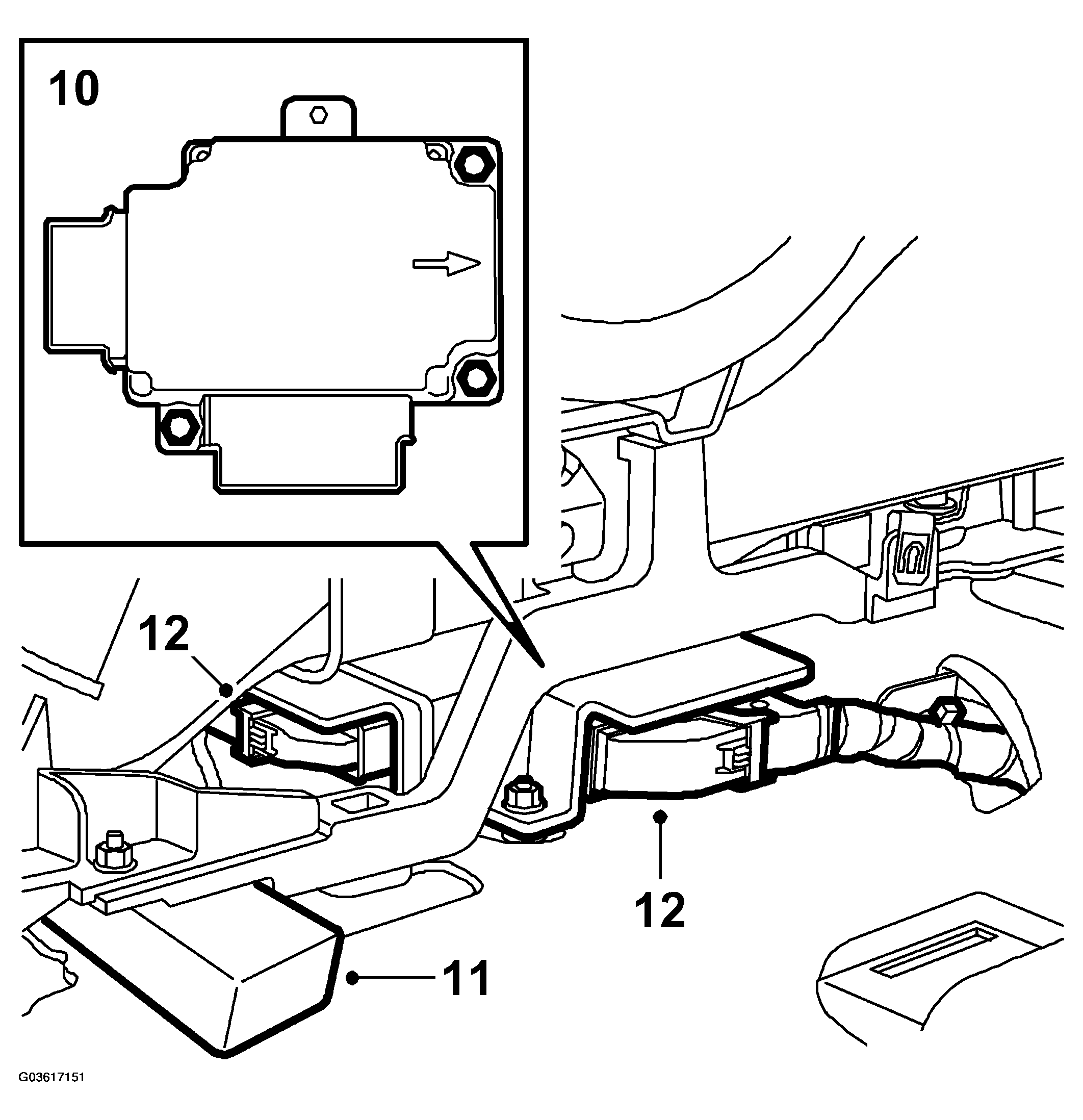

    Fig 3: Illustration For Step 11 And 12
    G03617151Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Drive in a wedge between the floor and the aluminum frame so that the aluminum frame is lifted about 2 cm.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  12. Dismantle the Airbag Control Module's two connectors.
  13. Lift up and carefully move the Airbag Control Module out between the aluminum frame and the floor.
