To fit

Fit the control module. Do not forget the ground cable.

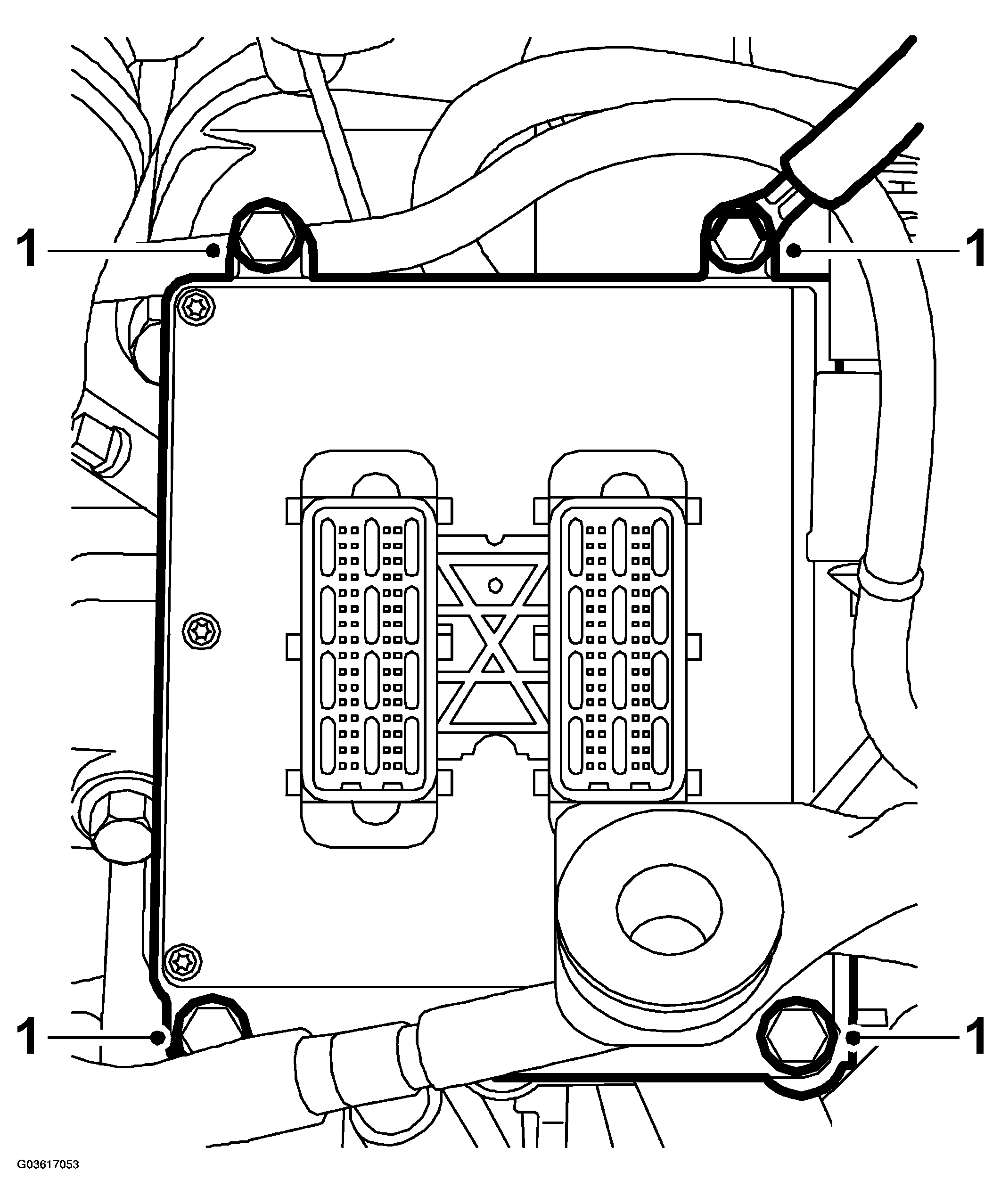

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 10 N.m (7 lbf ft)

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
Plug in the connectors and check that they are locked.

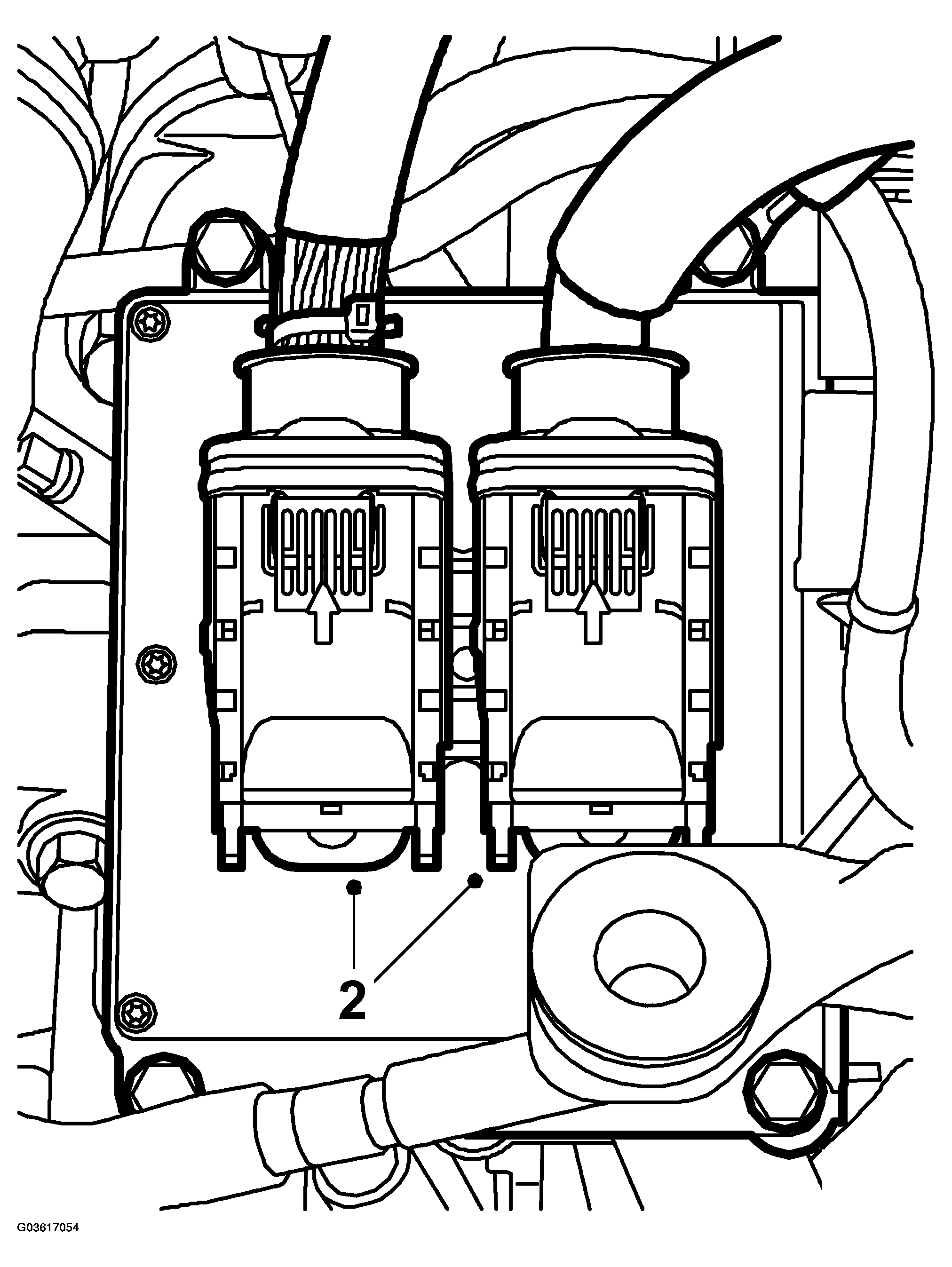

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the upper engine cover.

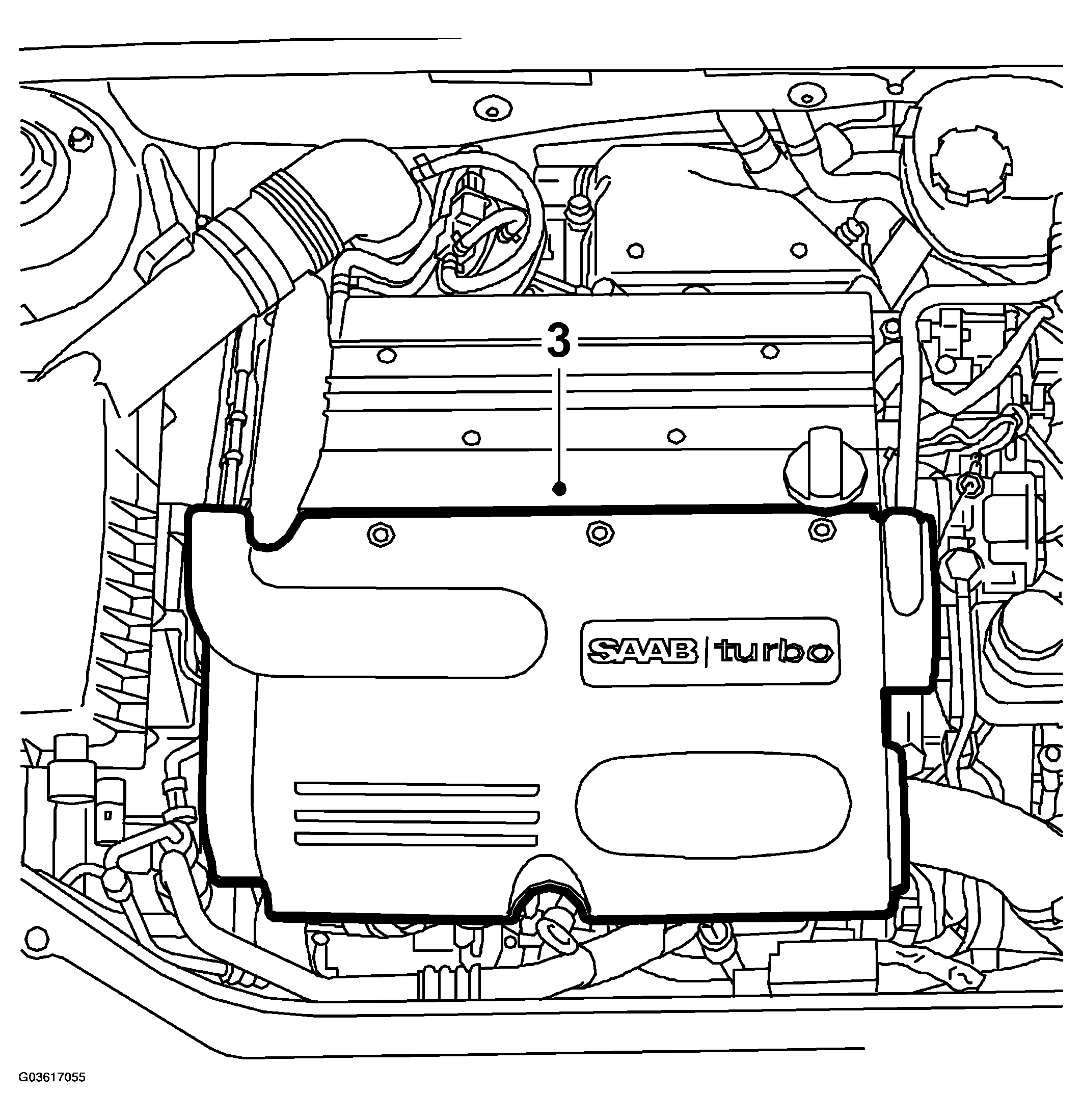

Fig 3: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Carry out actions after replacement of control module.
