To remove

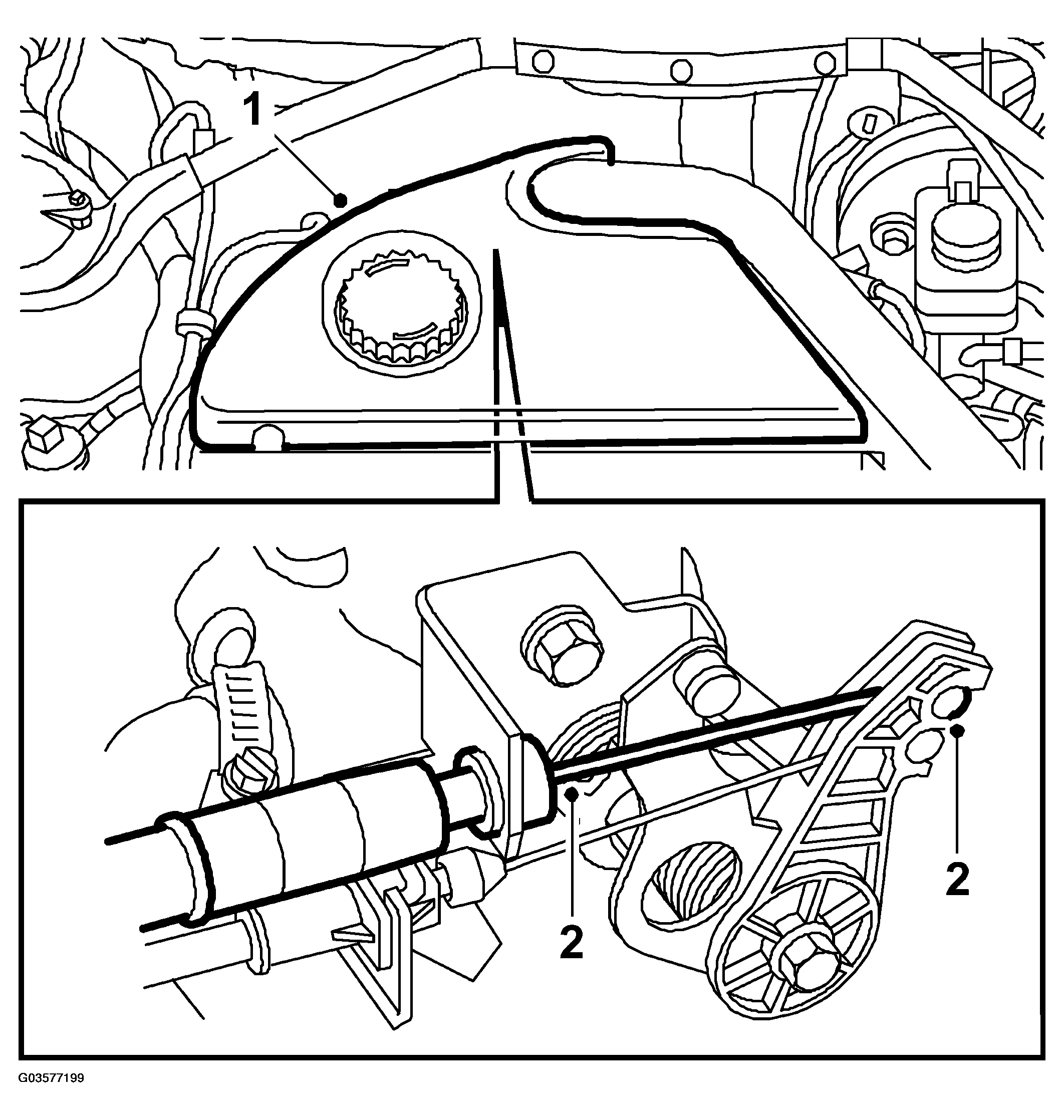

Fig 1: Illustration For Steps 1 & 2
G03577199Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the resonating chamber or the cover over the intake manifold.
  2. Undo the clips and unhook the throttle cable from the link arm and cable mounting.
  3. Remove the lower section of the dashboard and unhook the throttle cable from the accelerator.

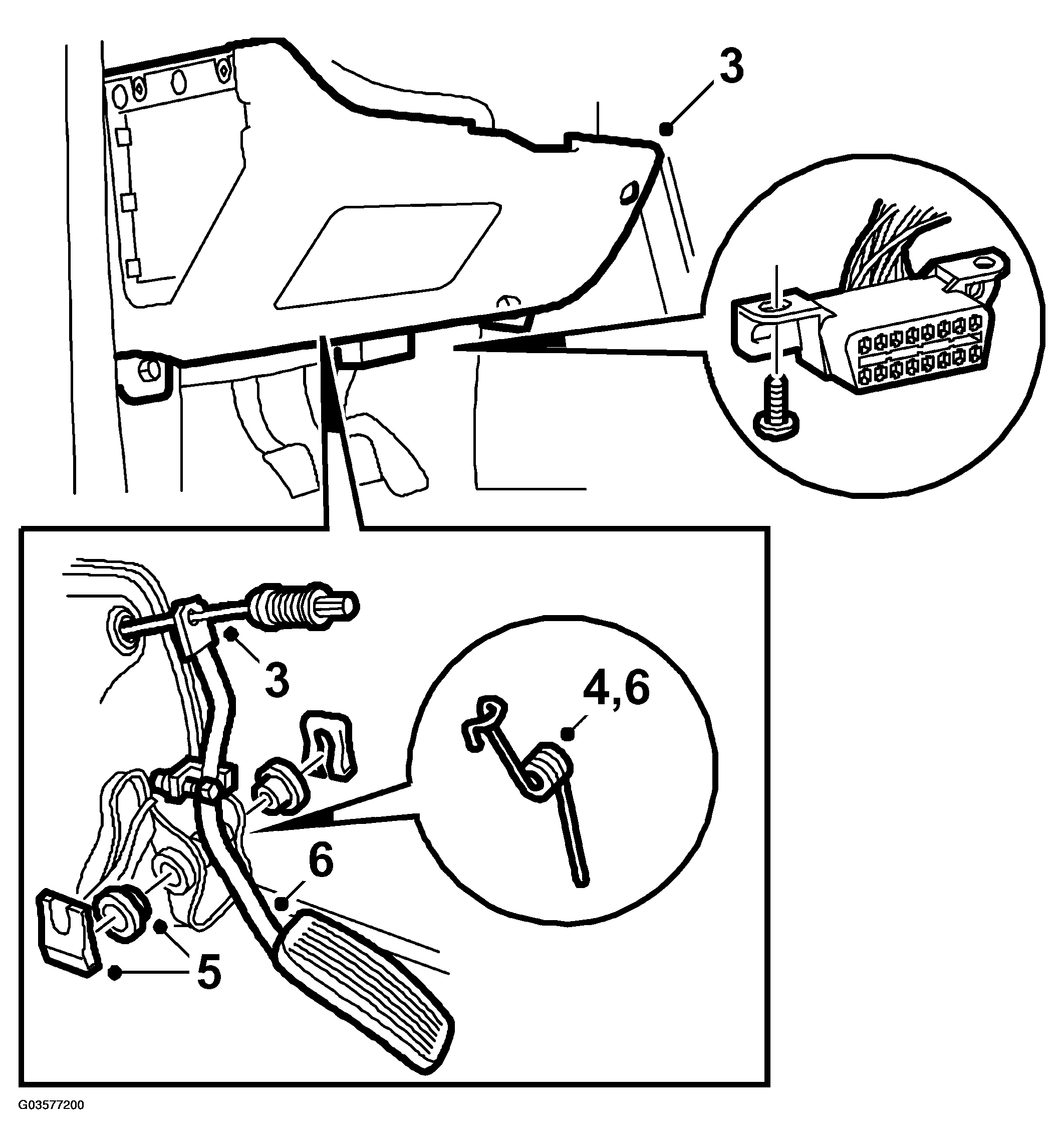

    Fig 2: Illustration For Steps 3 & 6
    G03577200Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unhook the accelerator pedal's return spring.
  5. Remove the clips and the bushes.
  6. Extract the accelerator pedal and remove the return spring.
