Adjusting the accelerator pedal cable.

  1. Remove the engine cover.

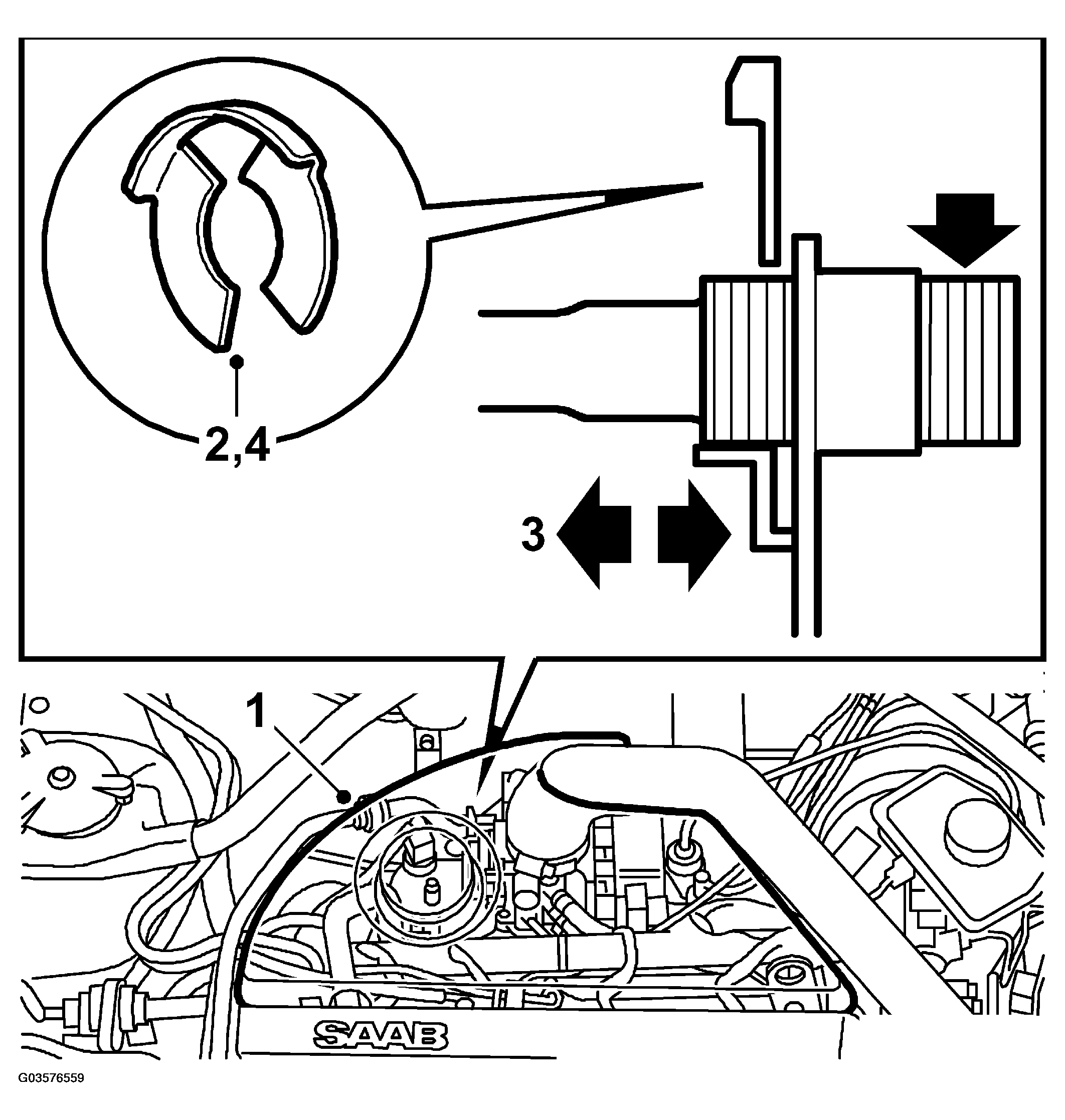

    Fig 1: Illustration For Steps 1-3-4
    G03576559Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the cable adjuster clip.
  3. Adjust the play in the cable by holding the pedal arm in its fully sprung-back position and pull the cable with the other hand until it is taut. Then slacken it to the closes groove in the sleeve.
  4. Fit the clip.
