To fit

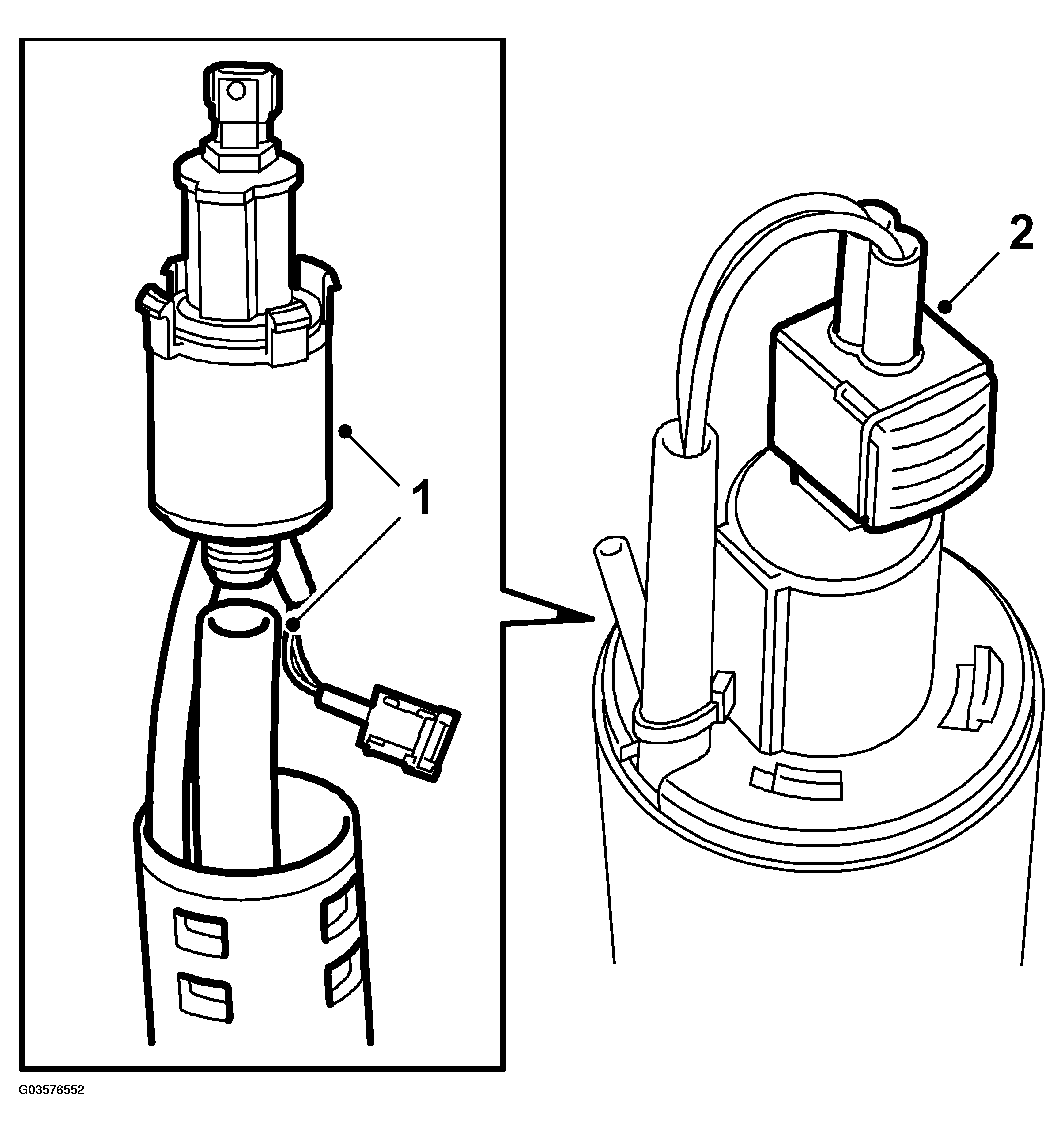

Fig 1: Illustration For Steps 1-2
G03576552Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Connect the valve to the hose. Make sure that the opening for the cable is correctly positioned.
  2. Spray with Kontakt 61 and plug in the connector.
  3. Carefully insert the valve into the vent hose.
    IMPORTANT: Be careful with the foam rubber filter so that it is not damaged or incorrectly positioned.
  4. Fit the cap.
    Fig 2: Illustration For Steps 4-6
    G03576553Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Raise the car.
  6. Adjust and connect the shut-off valve hose to the EVAP canister.
  7. Lower the car to the floor.
