Main relay, engine management system (229)

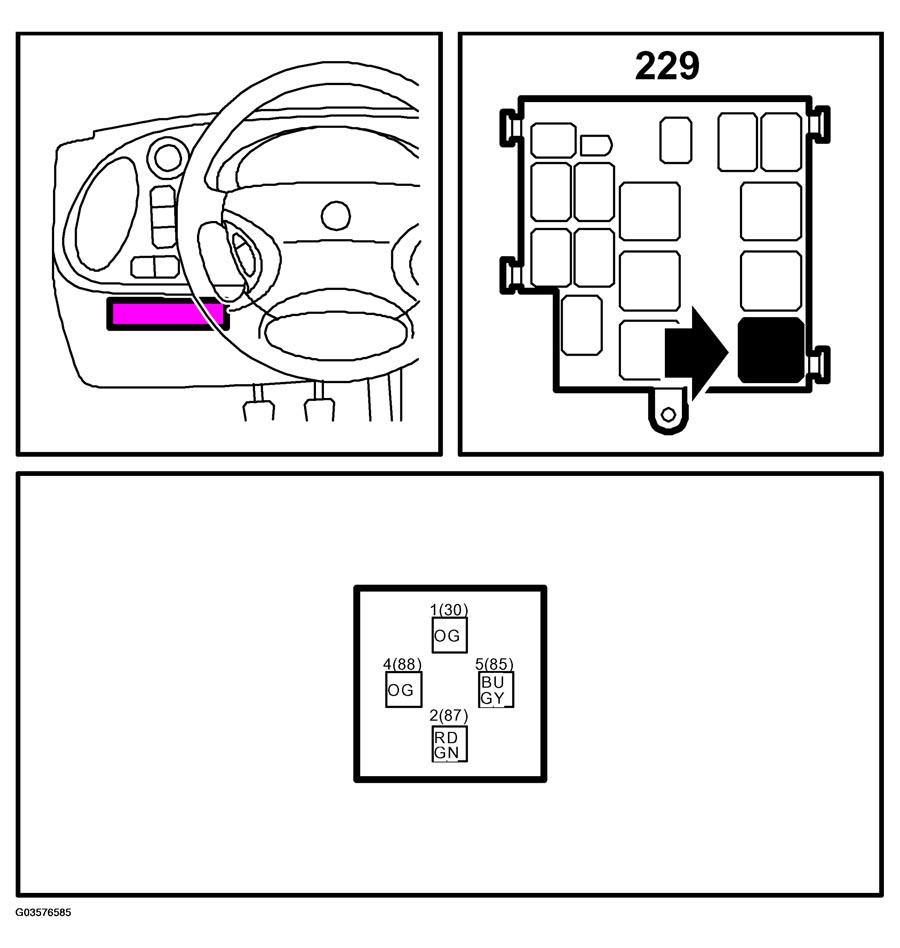

Fig 1: Identifying Main Relay - Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
