Mass air flow sensor (205): PSG16

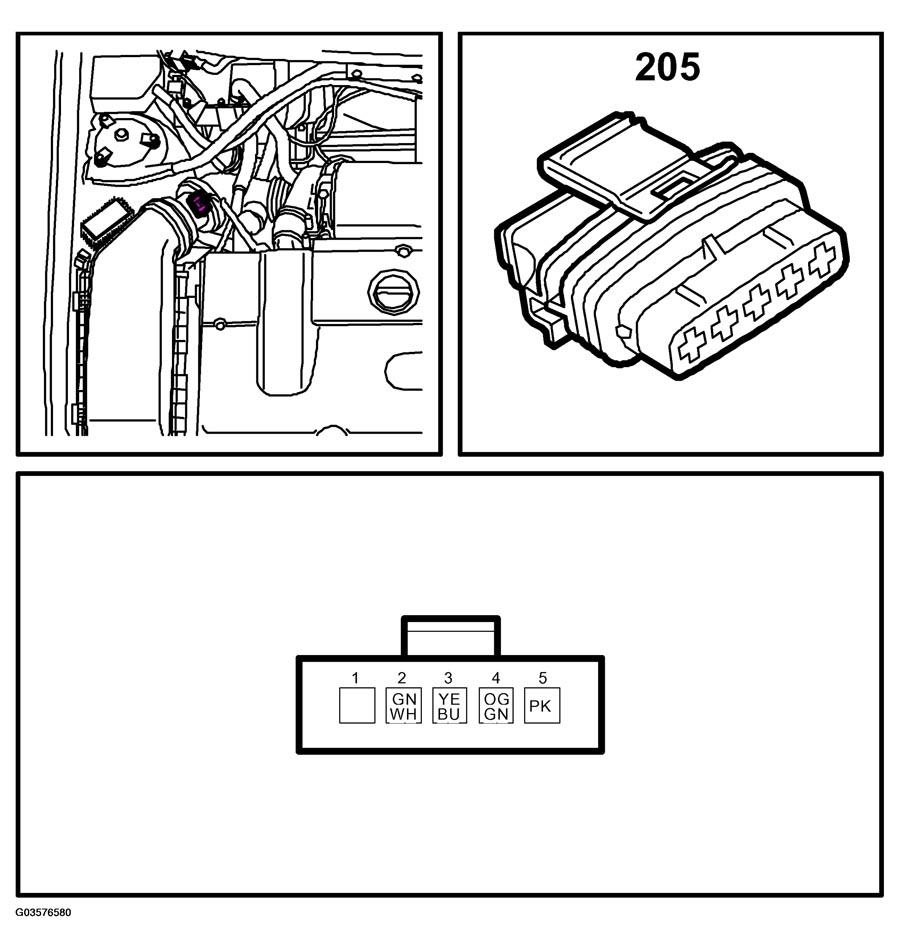

Fig 1: Identifying Mass Air Flow Sensor Connector Pinouts - PSG16
G03576580Courtesy of SAAB-SCANIA OF AMERICA, INC.
