Position sensor, crankshaft (345): EDC15

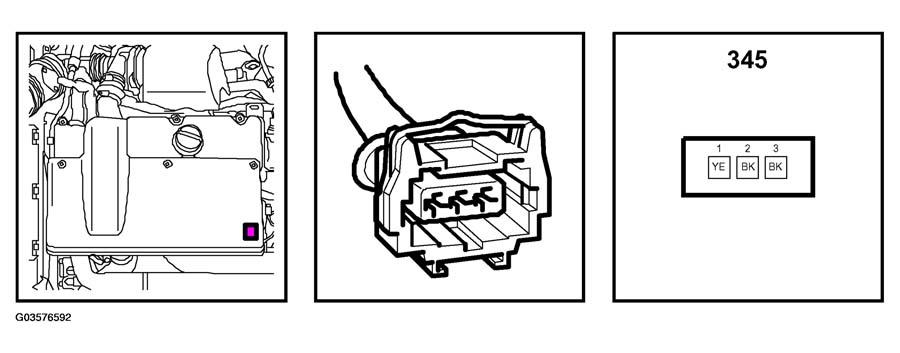

Fig 1: Identifying Crankshaft Position Sensor Connector Pinouts - EDC15
G03576592Courtesy of SAAB-SCANIA OF AMERICA, INC.
