Temperature sensor, intake air (407): PSG16

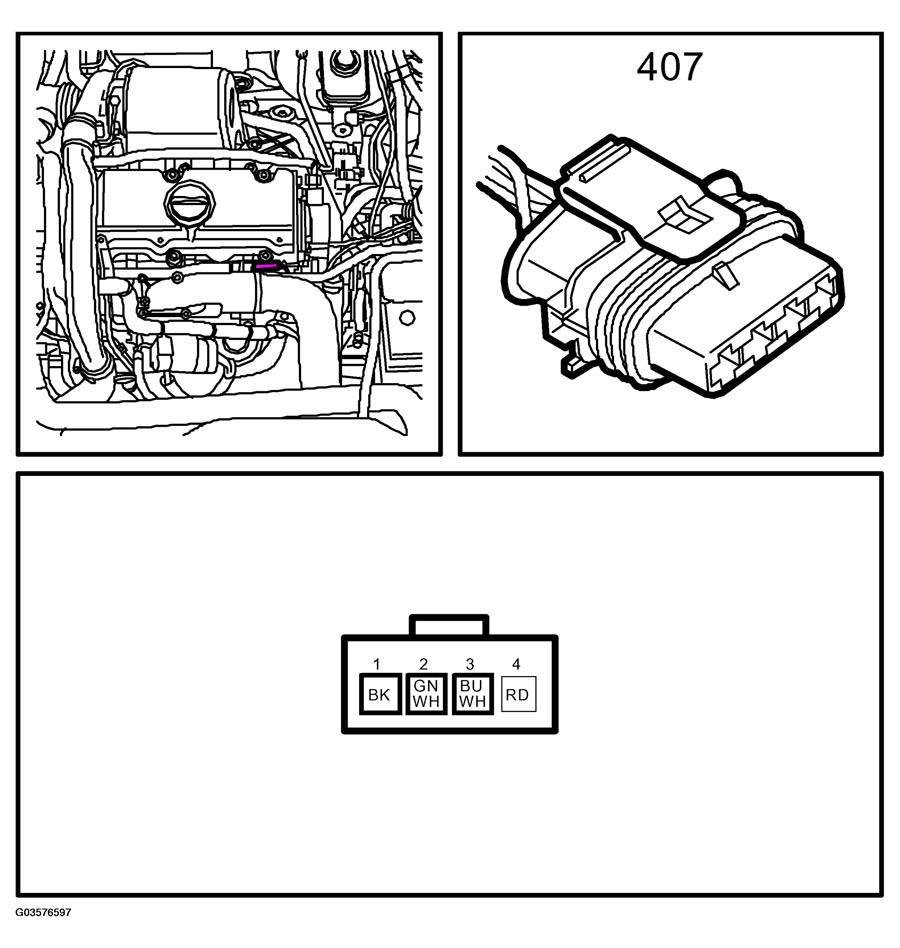

Fig 1: Identifying Intake Air Temperature Sensor Connector Pinouts - PSG16
G03576597Courtesy of SAAB-SCANIA OF AMERICA, INC.
