To remove

Carry out actions before removing control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

1. Remove the left-hand front seat.

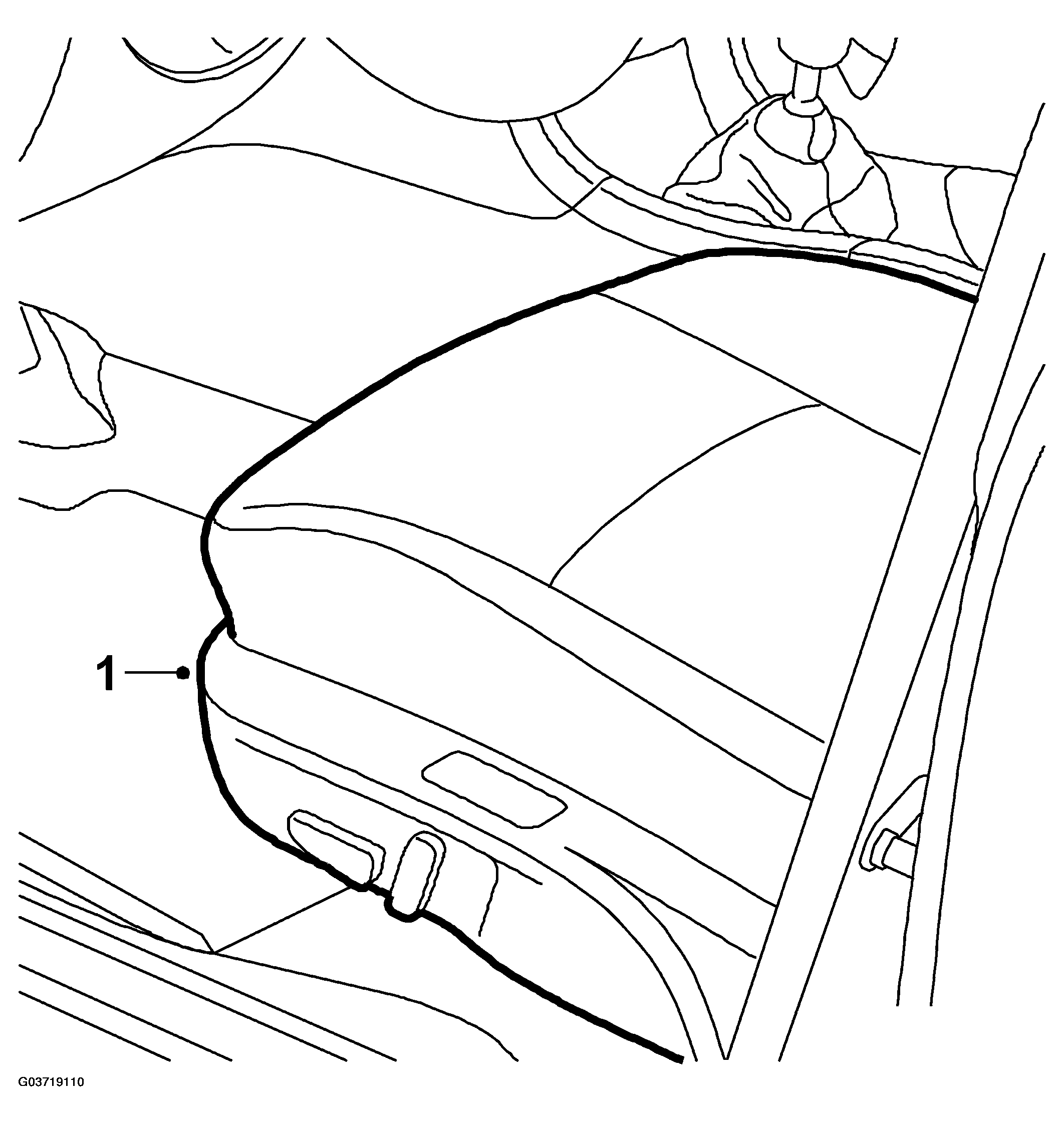

   Fig 1: Illustration For Step 1

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Remove the bolt.

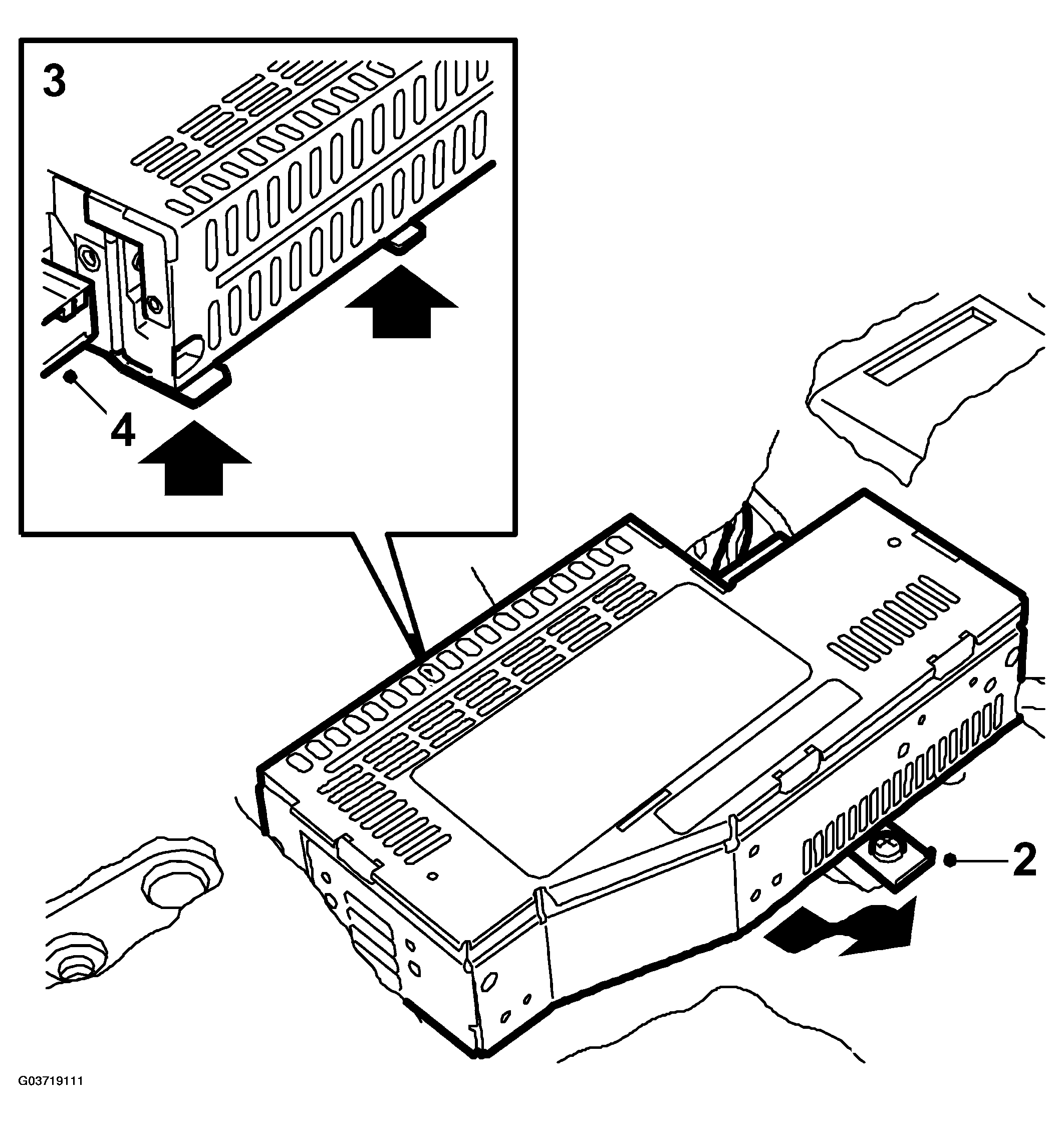

   Fig 2: Illustration For Steps 2 & 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Remove the amplifier.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
4. Unplug the connector.
