To fit

  1. Fit the control module.

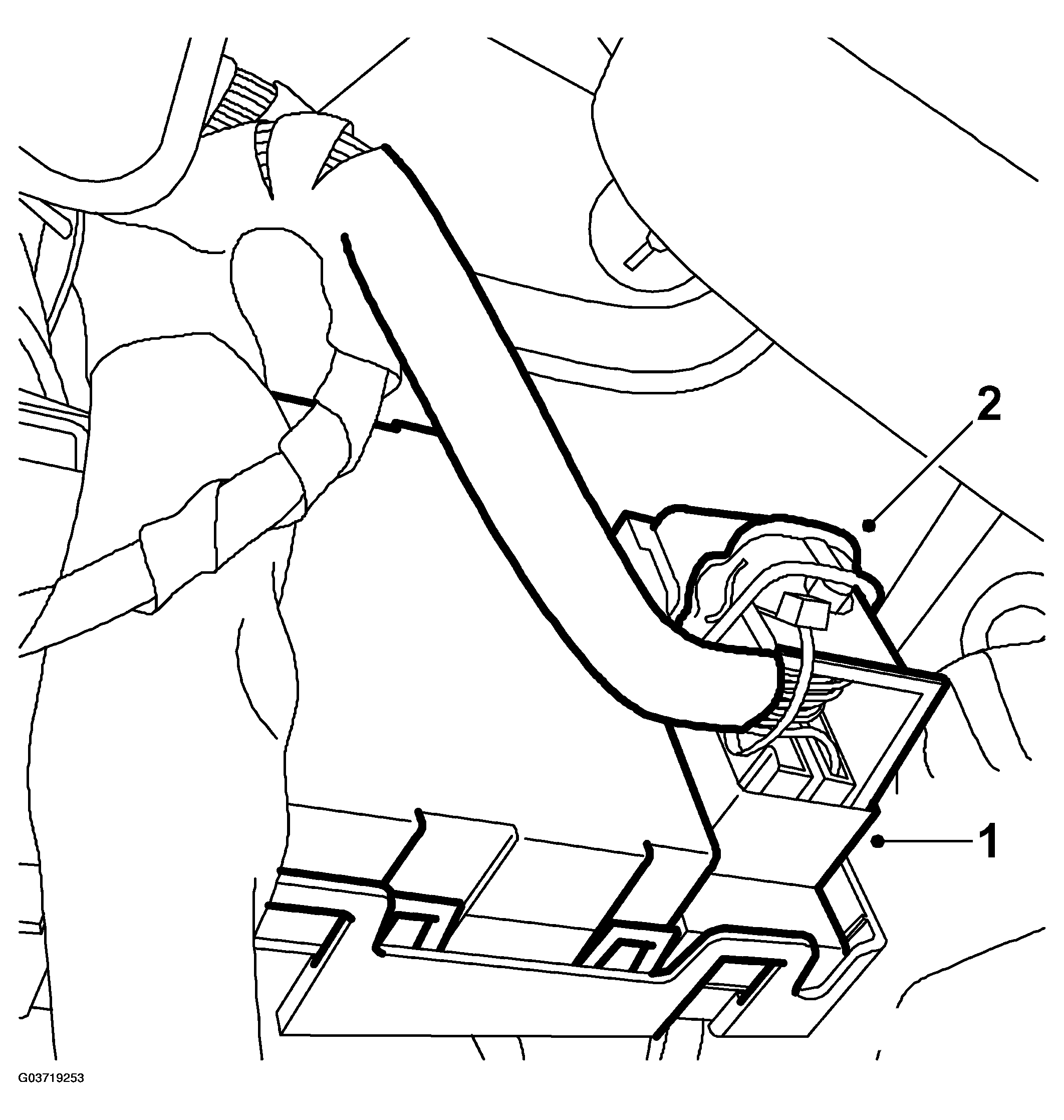

    Fig 1: Illustration For Steps 1-2
    G03719253Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  2. Plug in the connector.
  3. Fit the lower section of the dashboard

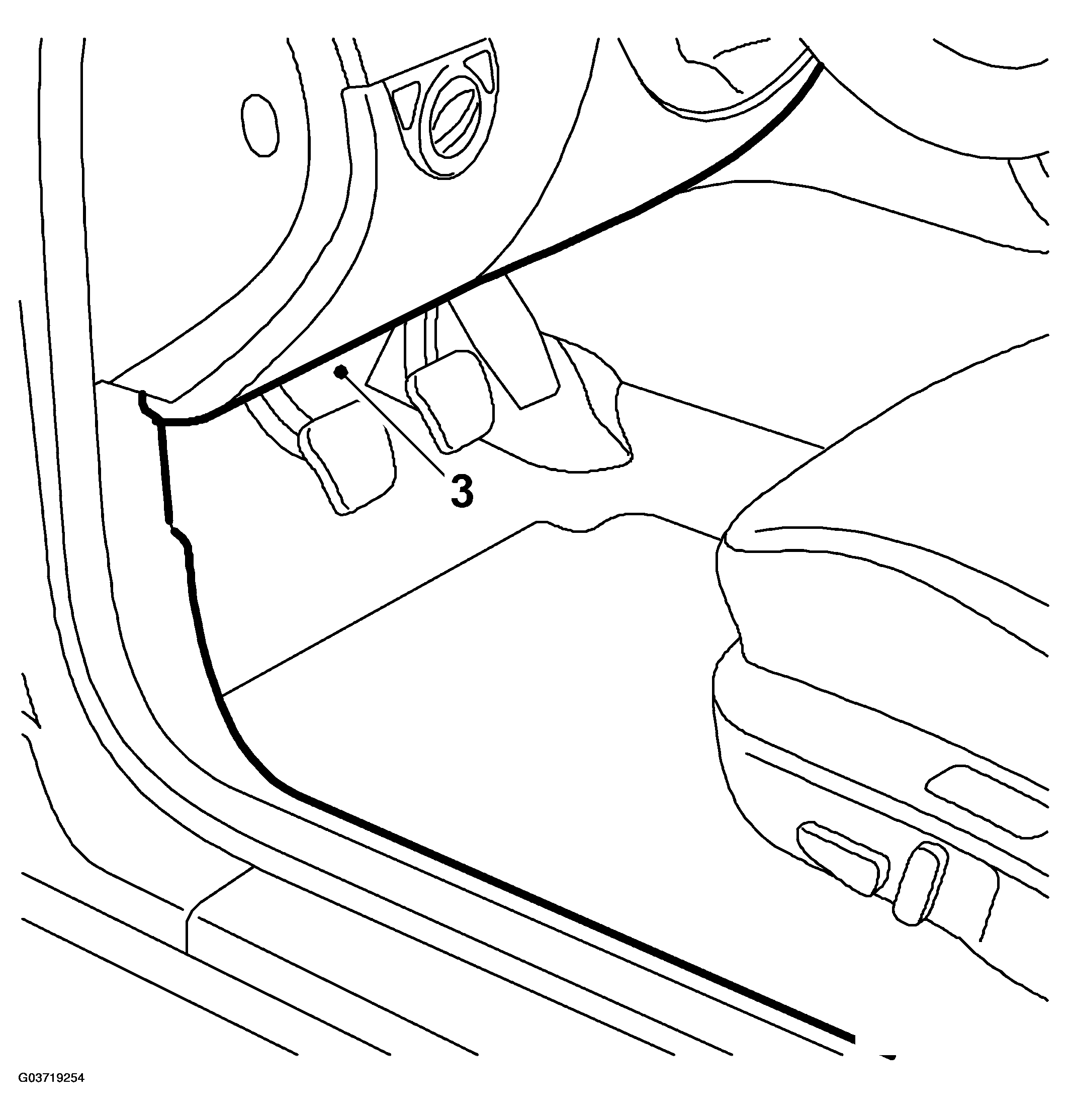

    Fig 2: Illustration For Step 3
    G03719254Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. If the control module has been replaced:  Carry out procedures after changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
