To remove

  1. Carry out procedures before removing a control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .
  2. Remove the lower section of the dashboard

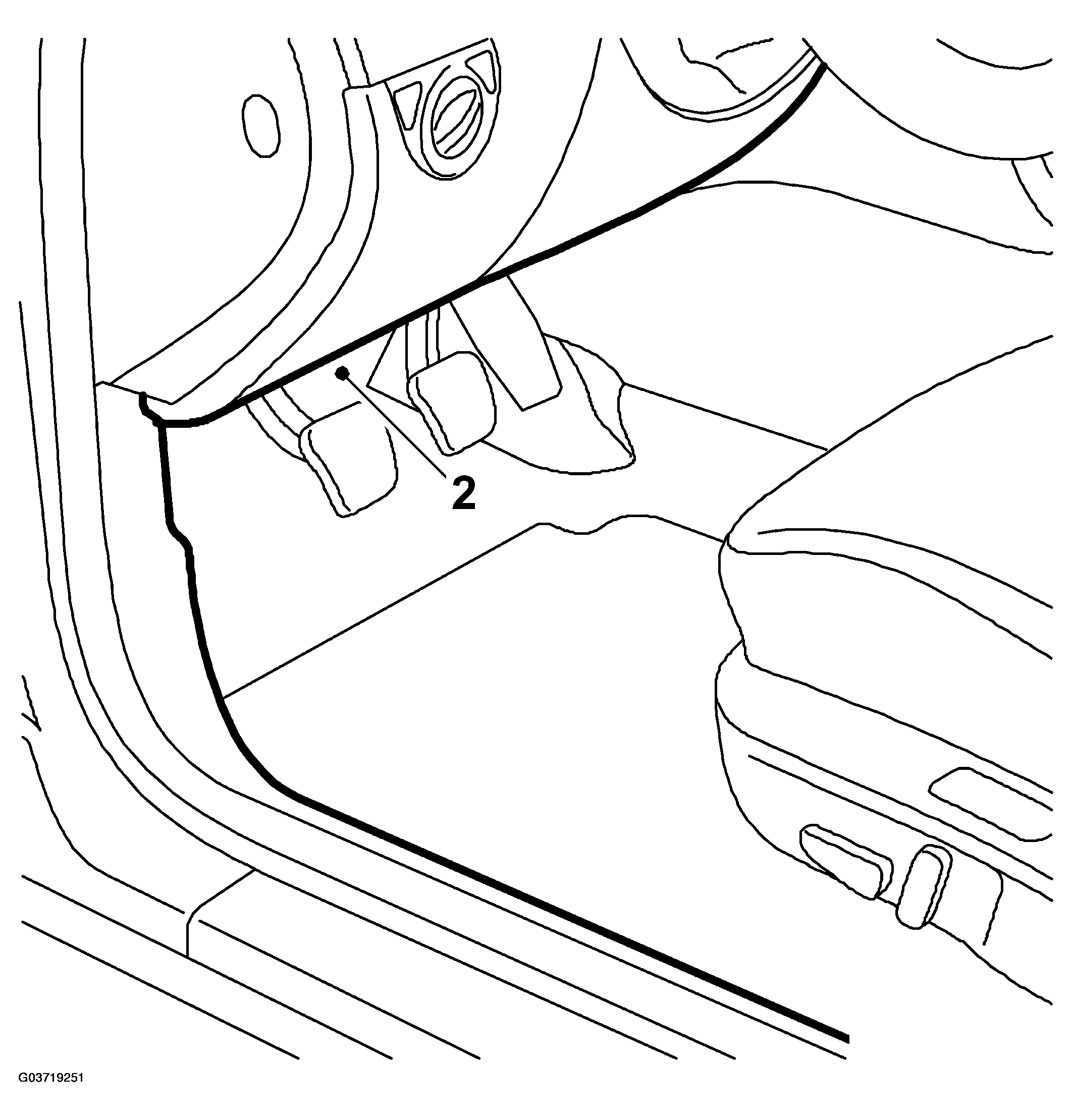

    Fig 1: Illustration For Step 2
    G03719251Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  3. Unplug the control module connector.

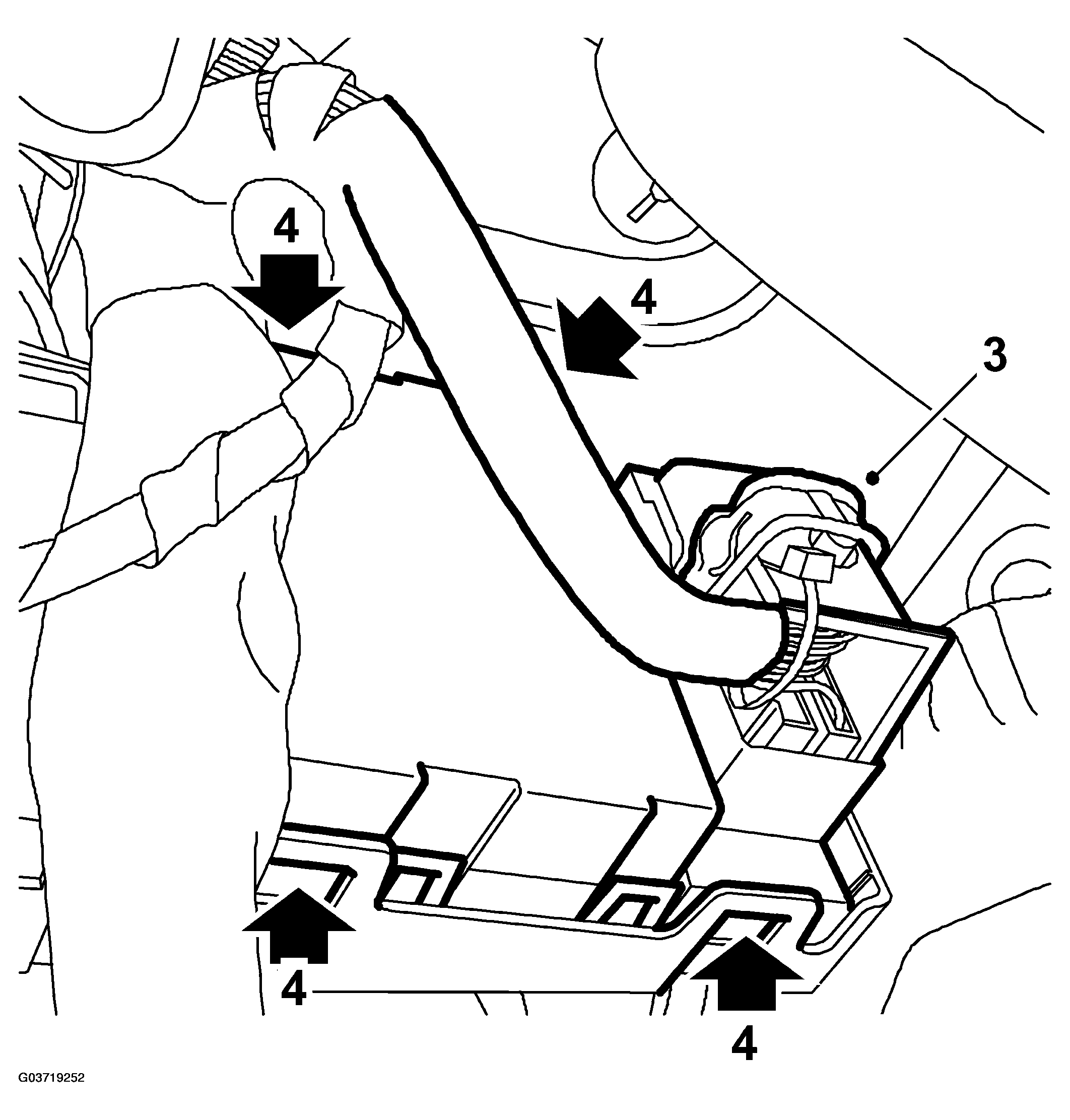

    Fig 2: Illustration For Steps 3-4
    G03719252Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the control module by pressing in the 4 snap fasteners.
