To remove

  1. Carry out "Procedure before removing the control module". See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

    Remove the steering wheel.

  2. Remove the gaiter from the control module and press it against the instrument panel.

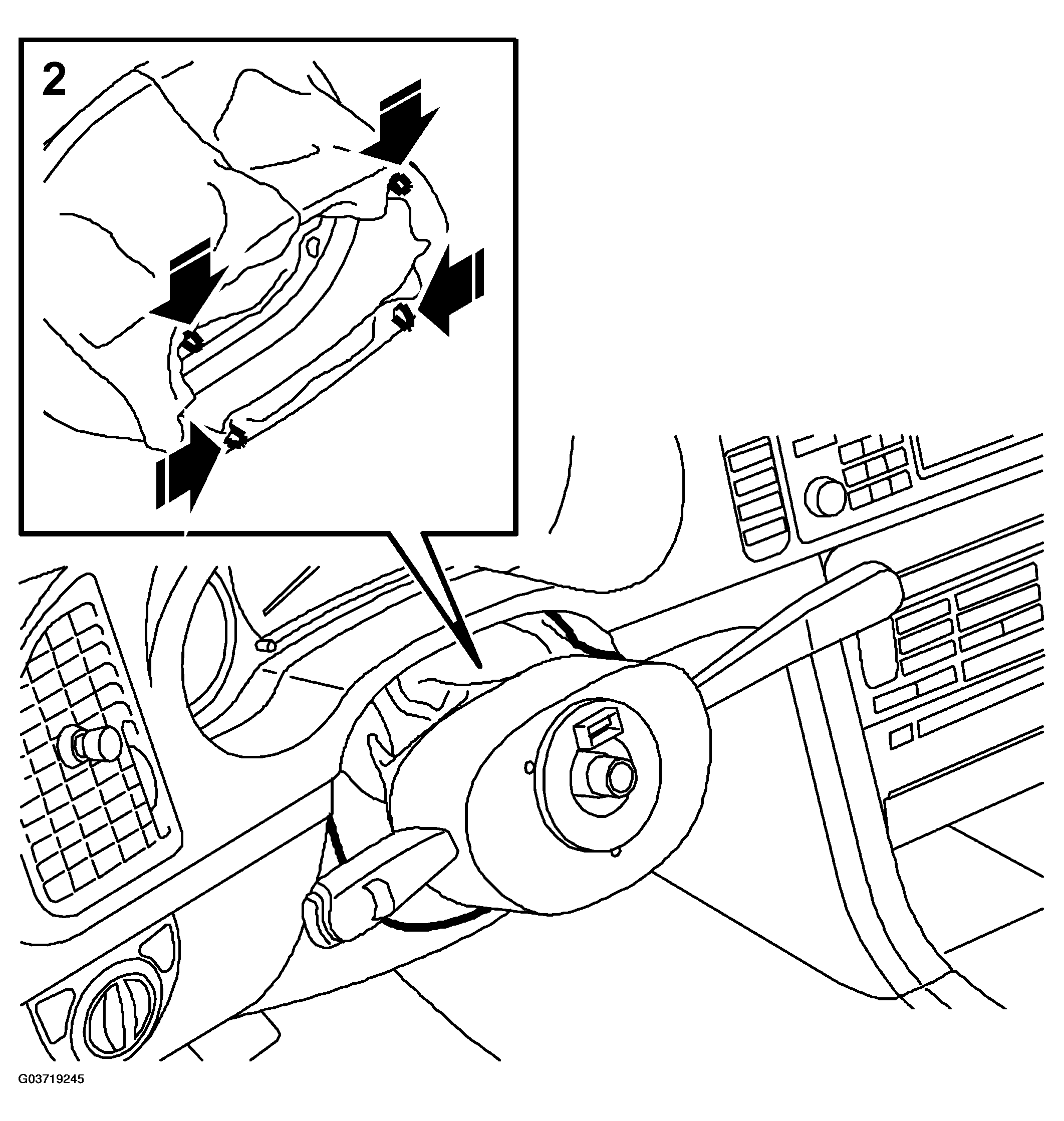

    Fig 1: Illustration For Step 2
    G03719245Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the control module from the steering shaft. Press in the steering column while pulling the control module outwards.

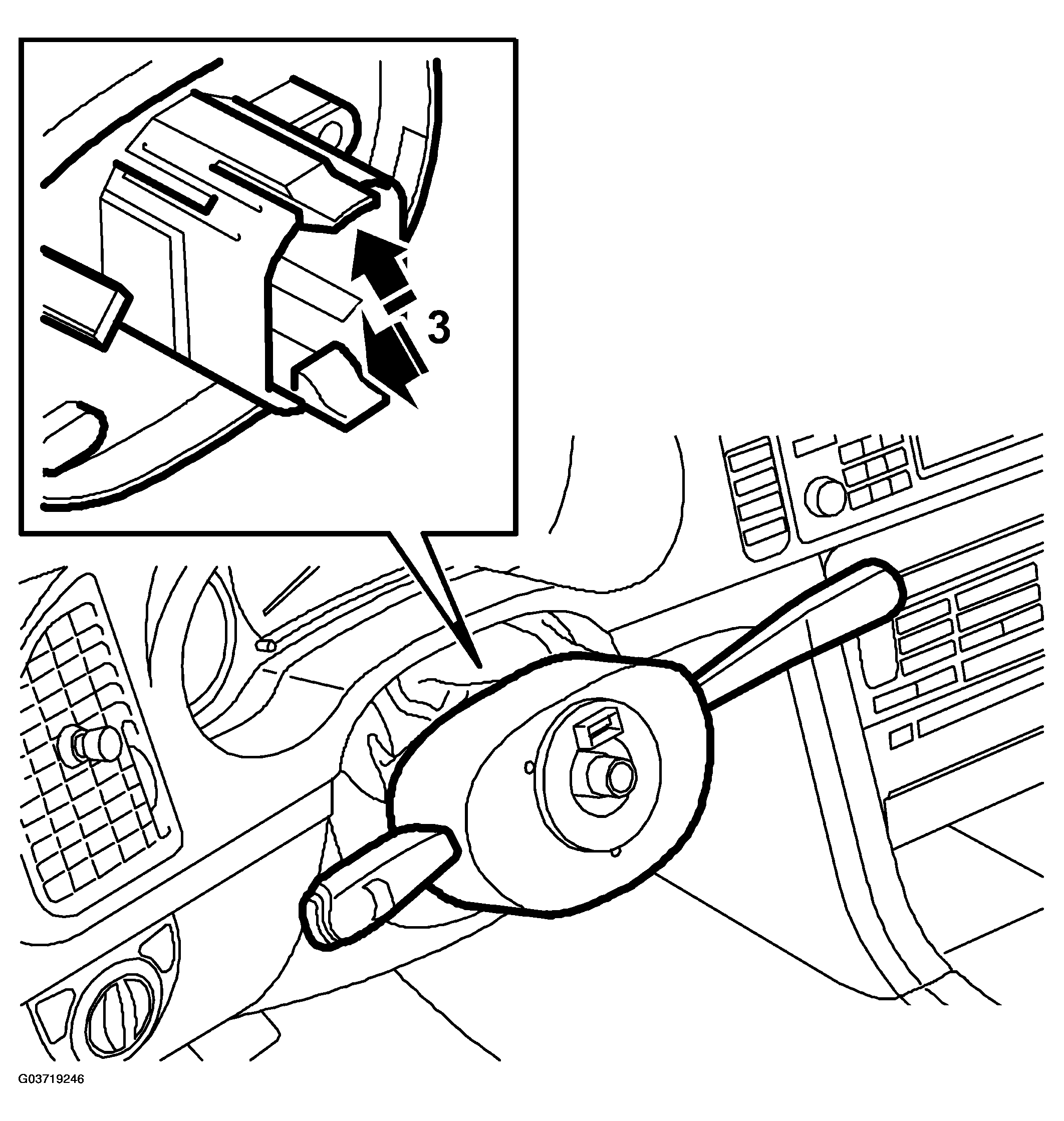

    Fig 2: Illustration For Step 3
    G03719246Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  4. Unplug the connector and remove the clip.

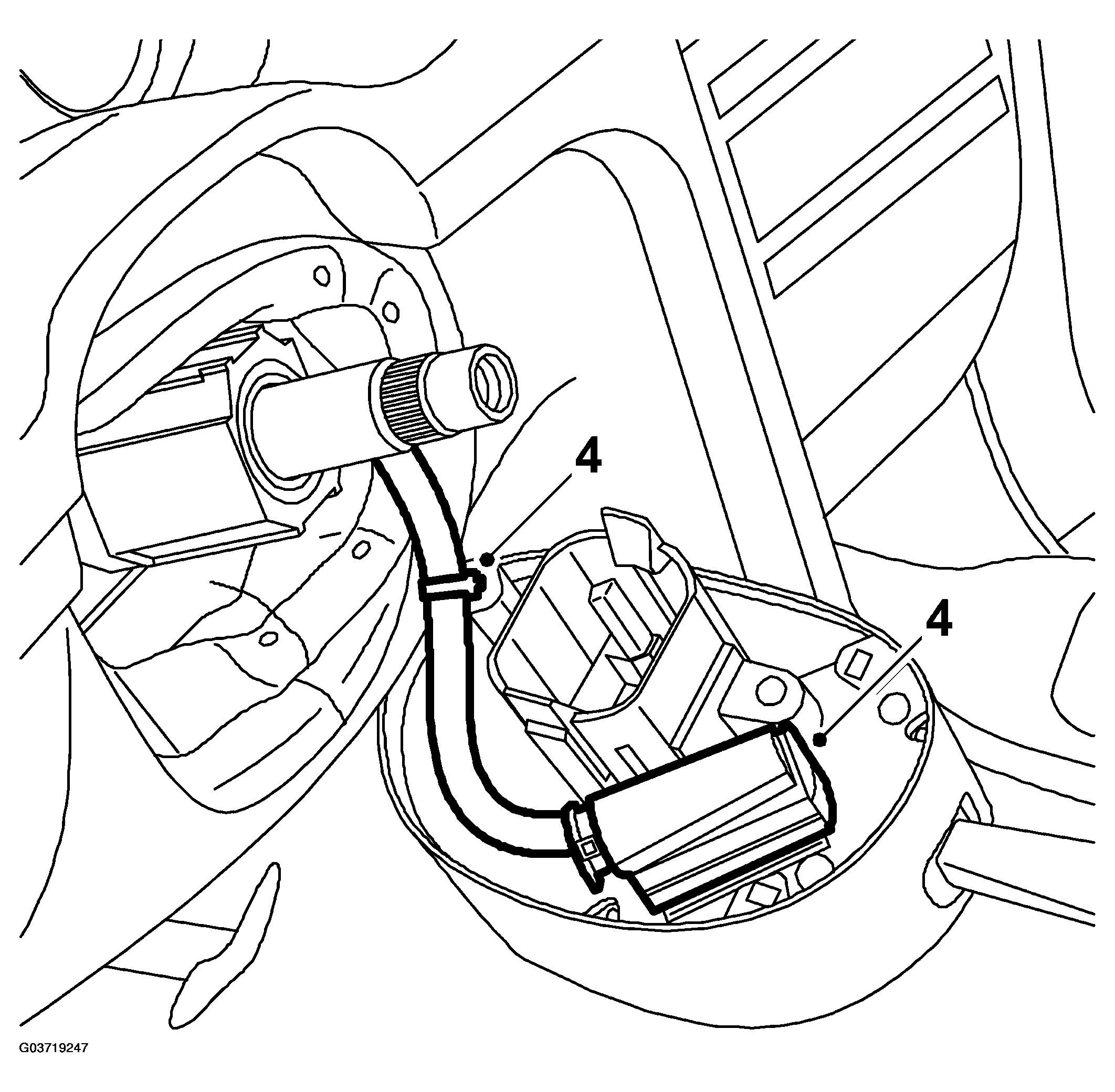

    Fig 3: Illustration For Step 4
    G03719247Courtesy of SAAB-SCANIA OF AMERICA, INC.
