To remove

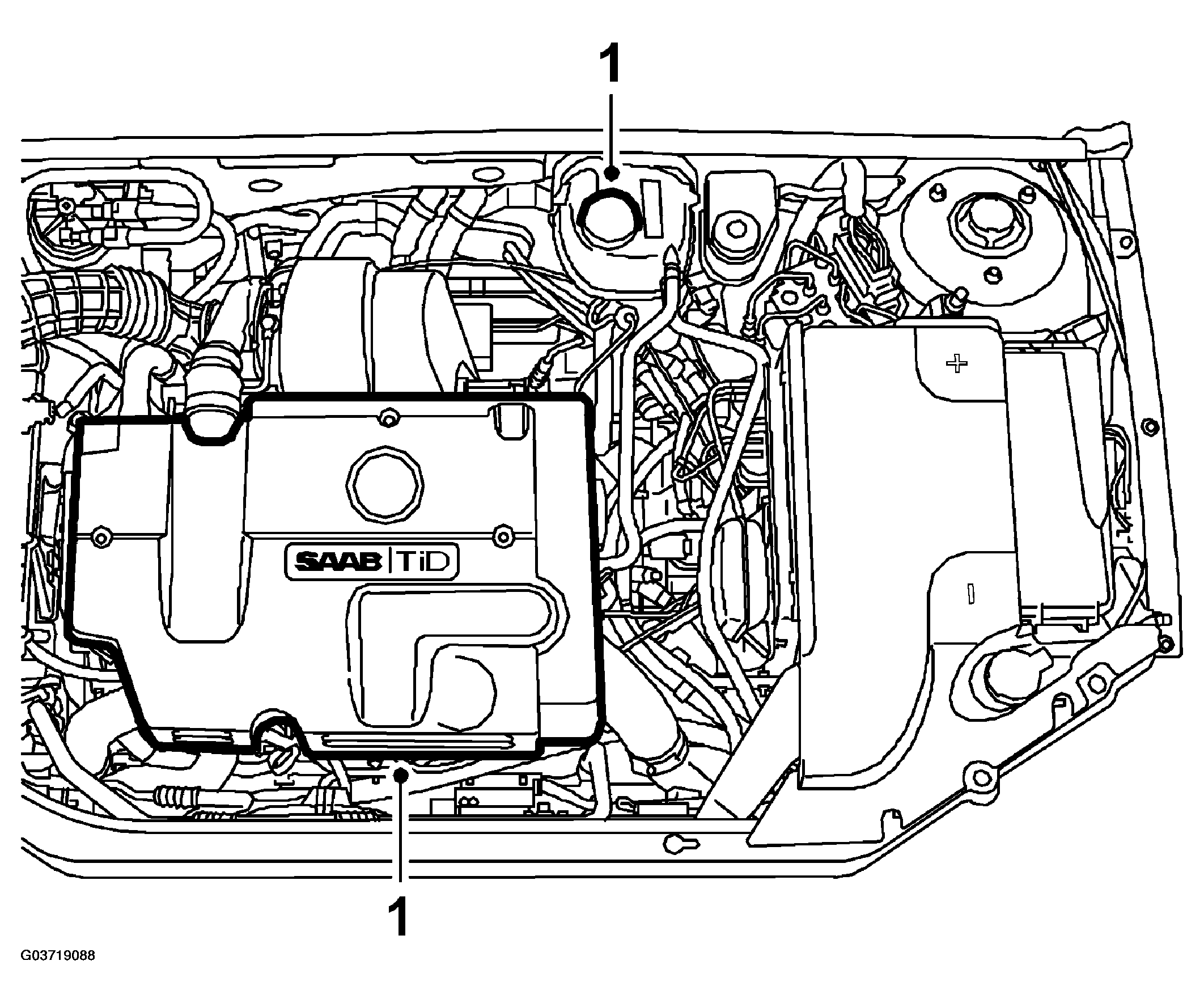

Remove the upper engine cover and undo the expansion tank cap to release any excess pressure in the cooling system.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the connector and detach the EGR valve from the intake manifold.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

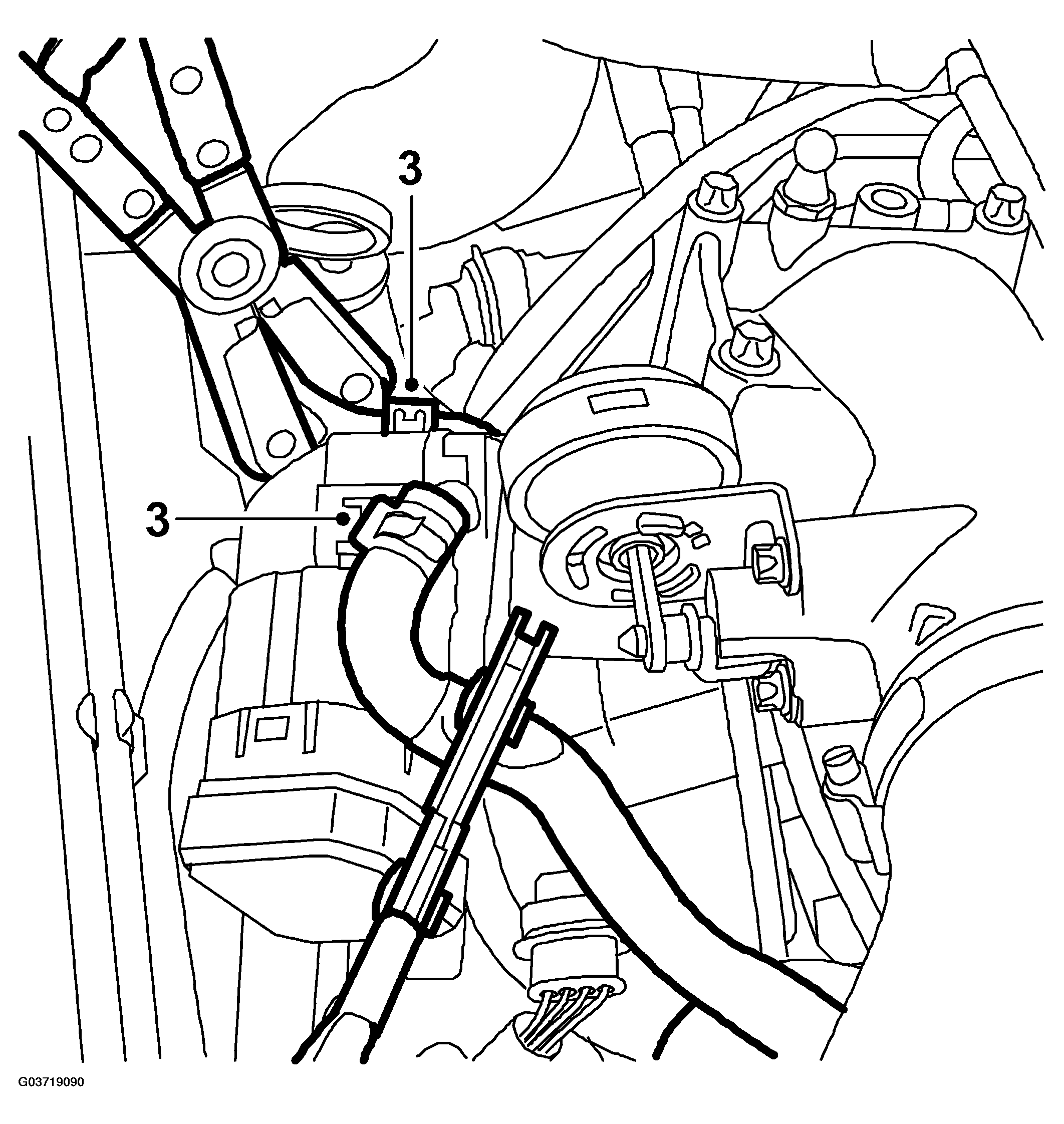

Clamp the EGR valve coolant hoses using 30 07 739 Hose pinch-off pliers and detach the hoses from the valve.

Fig 3: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: ESD-SENSITIVE COMPONENT
Earth yourself by touching the car body before plugging in/unplugging components. Do not touch the component pins .
Unplug the connector of the engine control module to which the measures apply.
