To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  1. Connect the control module connector.

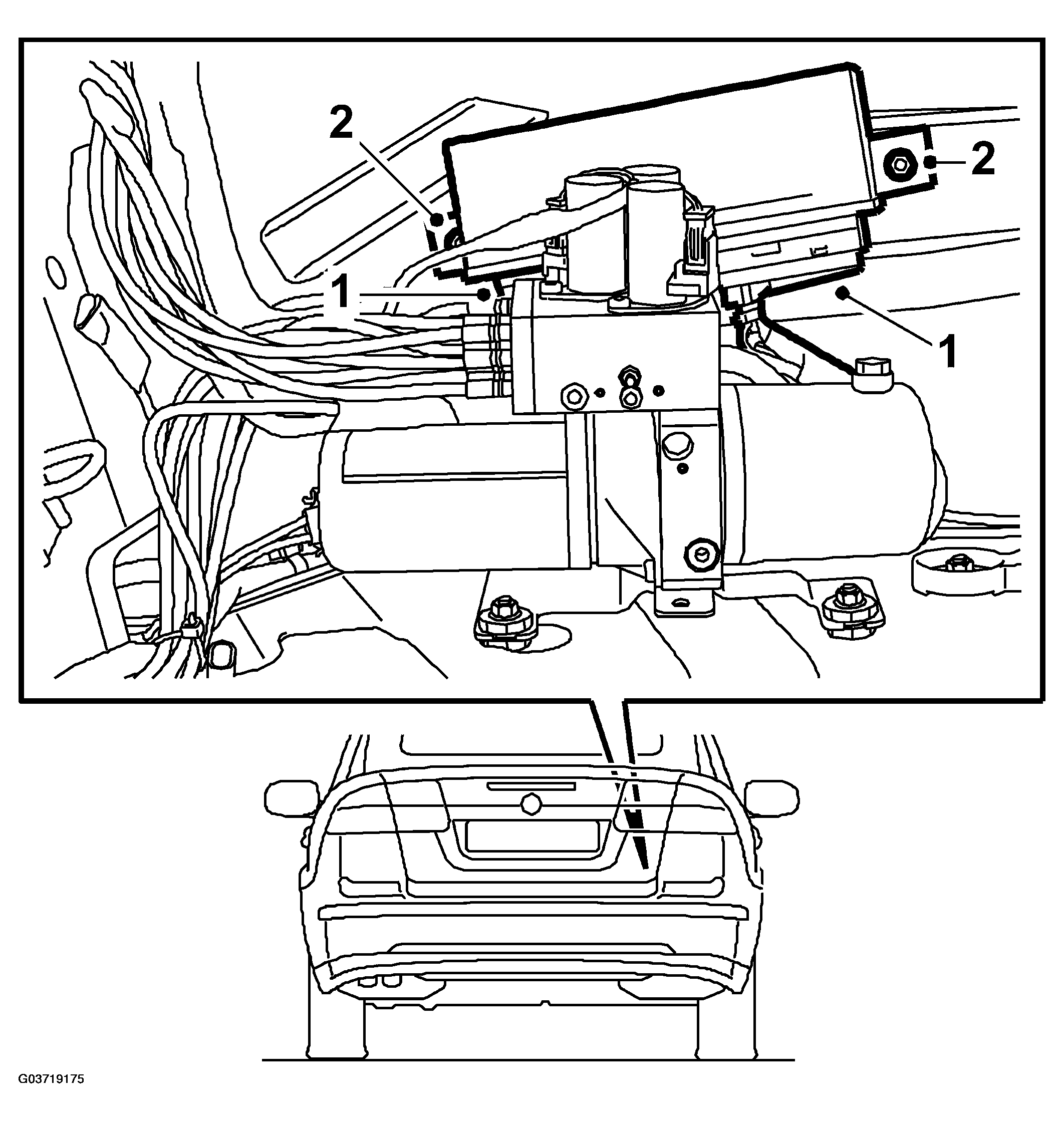

    Fig 1: Illustration For Steps 1-2
    G03719175Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the control module.
  3. Connect the diagnostics tool and erase any diagnostic trouble code.
  4. Test the operation of the soft top.
  5. Fit Luggage compartment side trim.

Carry out measures after replacing the control module.
