To remove

Carry out measures before dismantling the control module.

1. Raise the soft top fully.
2. Remove Luggage compartment side trim, CV on the right hand side.
3. Remove the control module nuts.

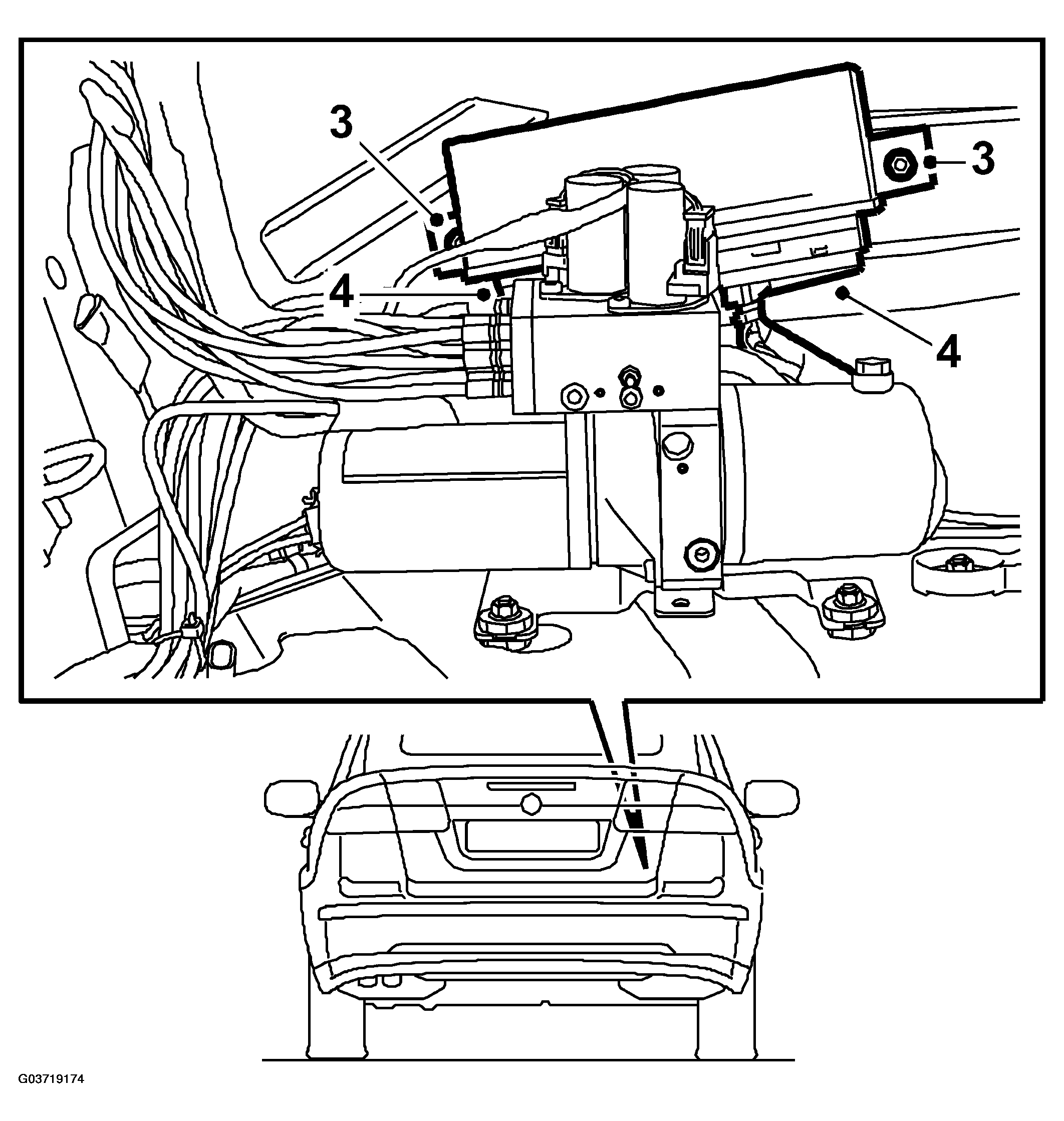

   Fig 1: Illustration For Steps 3-4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
4. Detach the control module connector.
