To fit

  1. Fit the door module pressing it obliquely upward so that the clip engages.

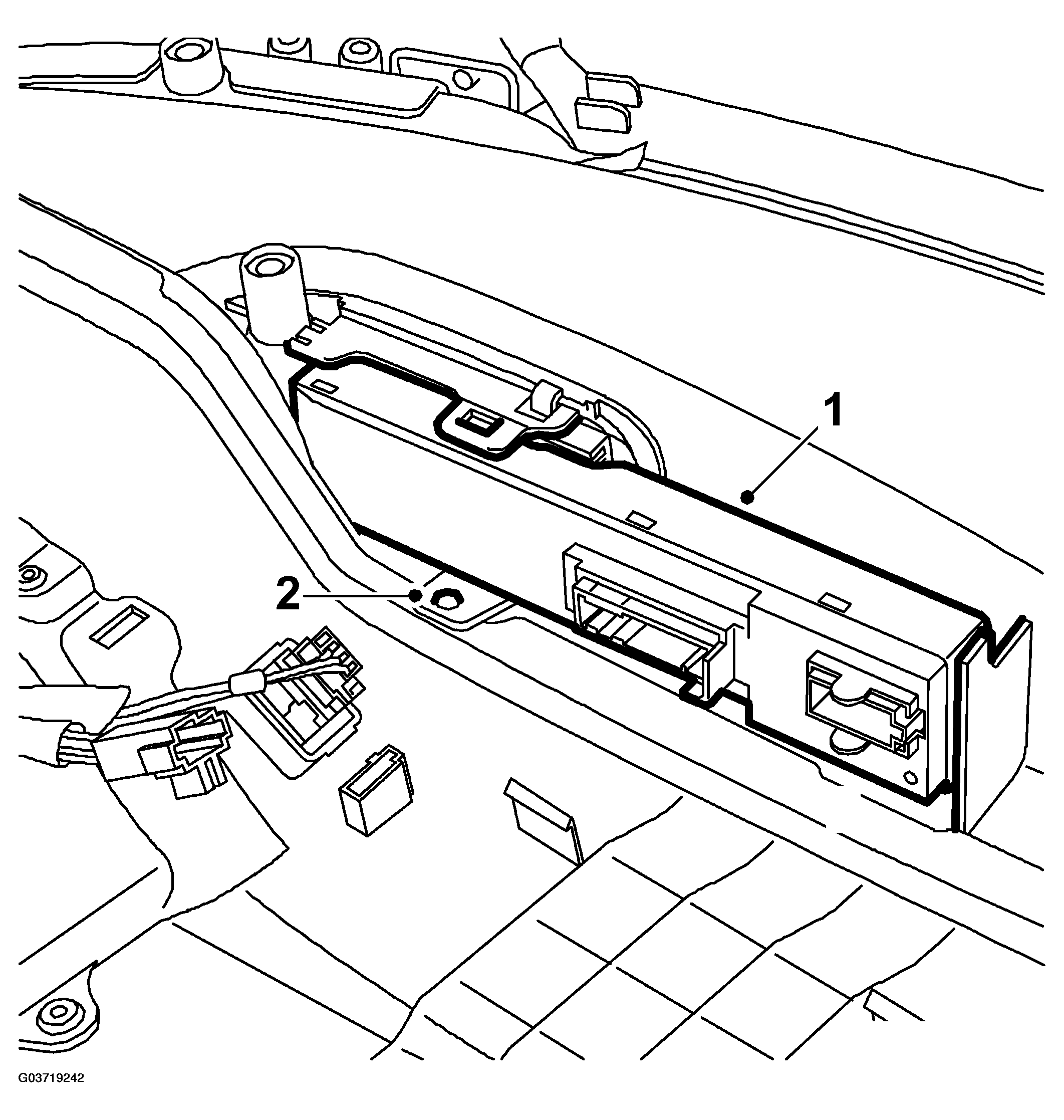

    Fig 1: Illustration For Steps 1-2
    G03719242Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. When changing the driver door module:  Fit the door trim screw.
  3. When changing the driver door module:  Affix the cell block with double-sided tape. The use of 16-30 20 807 is recommended.
  4. Make sure the door trim clips are in place and intact. Replace the clips if necessary.
  5. Fit the door trim.
  6. Cars with pinch protection:  Perform Programming of the pinch protection. See ELECTRIC MOTOR FOR SUNROOF (WITH PINCH PROTECTION)  .
  7. If the control module has been changed  , perform Measures after changing the control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
