To remove

  1. Perform Preparations prior to removing a control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .
  2. Remove the Front door trim.
  3. Lay the side of the door on a clean and soft surface.
  4. When changing the driver door module:  Remove the cell block from under the door module.
  5. When changing the driver door module:  Remove door trim screw.

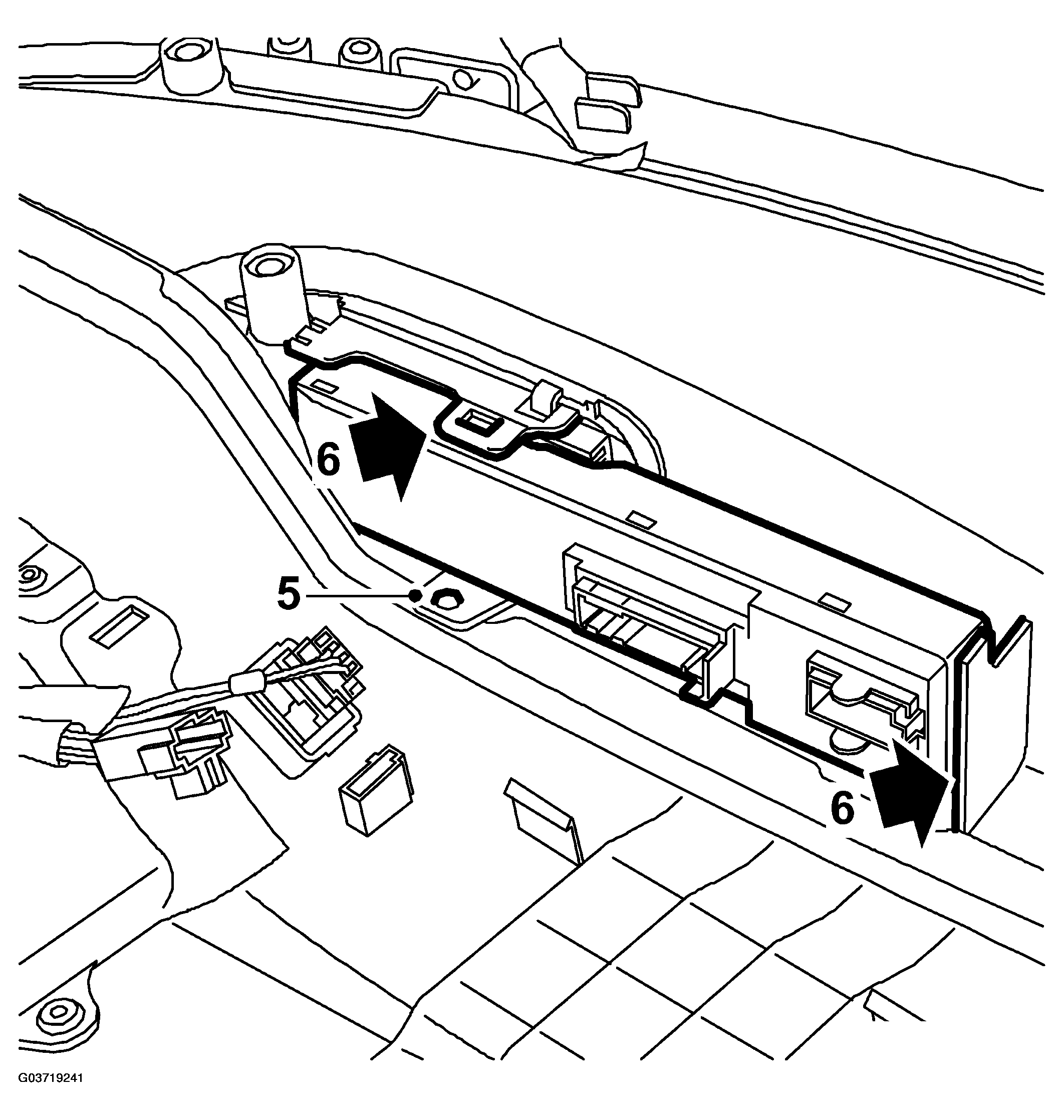

    Fig 1: Illustration For Steps 5-6
    G03719241Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the door module using a screwdriver. First undo the rear clip.

    Then undo the clips on the outer and inner sides of the door module. Pull the module carefully back/down.
