To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  1. Plug in the control module connector.

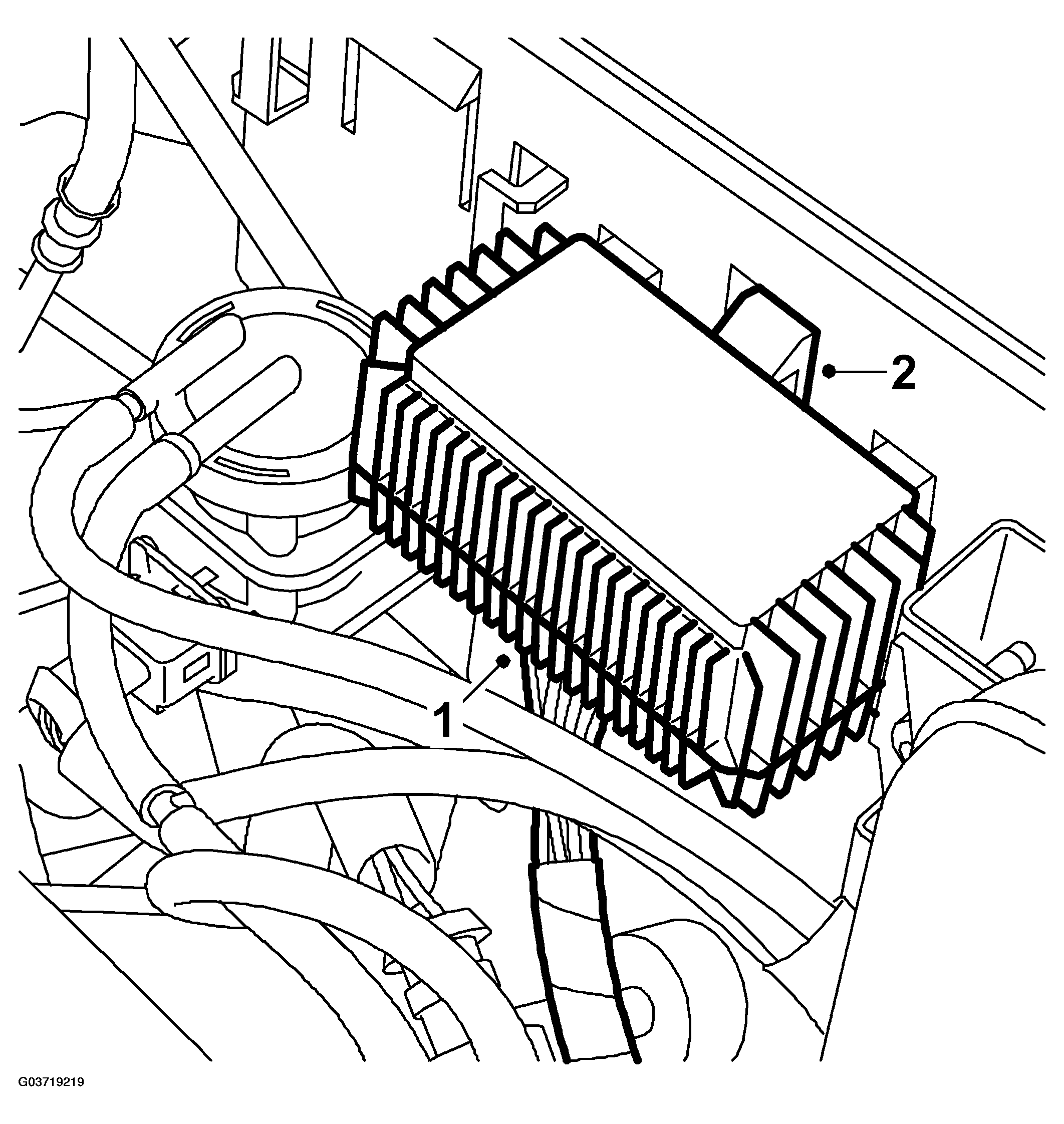

    Fig 1: Illustration For Step 2
    G03719219Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the control module on the bracket.
