To remove

  1. Remove the control module from the bracket.

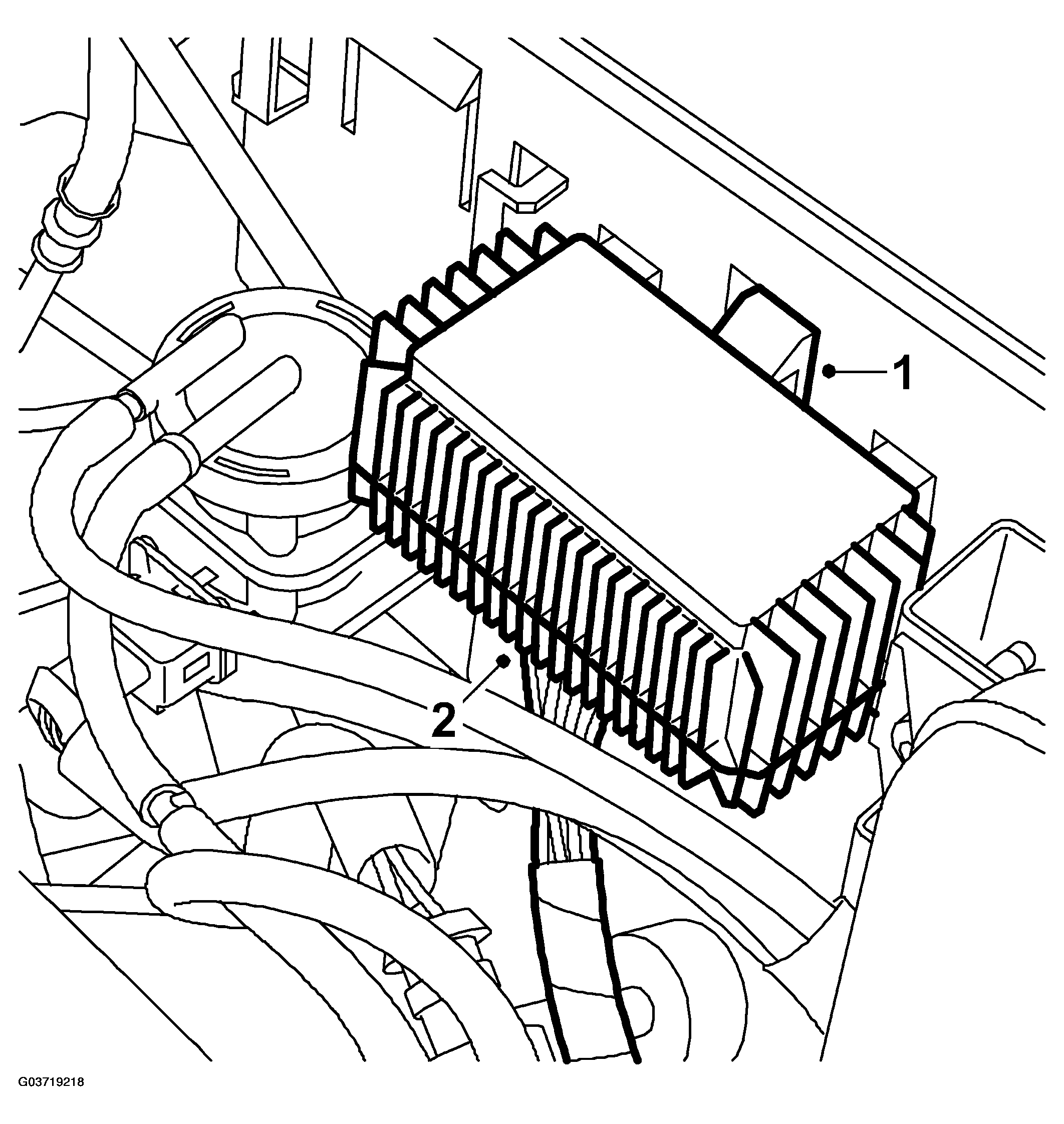

    Fig 1: Illustration For Step 1
    G03719218Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  2. Unplug the control module connector.
