To fit

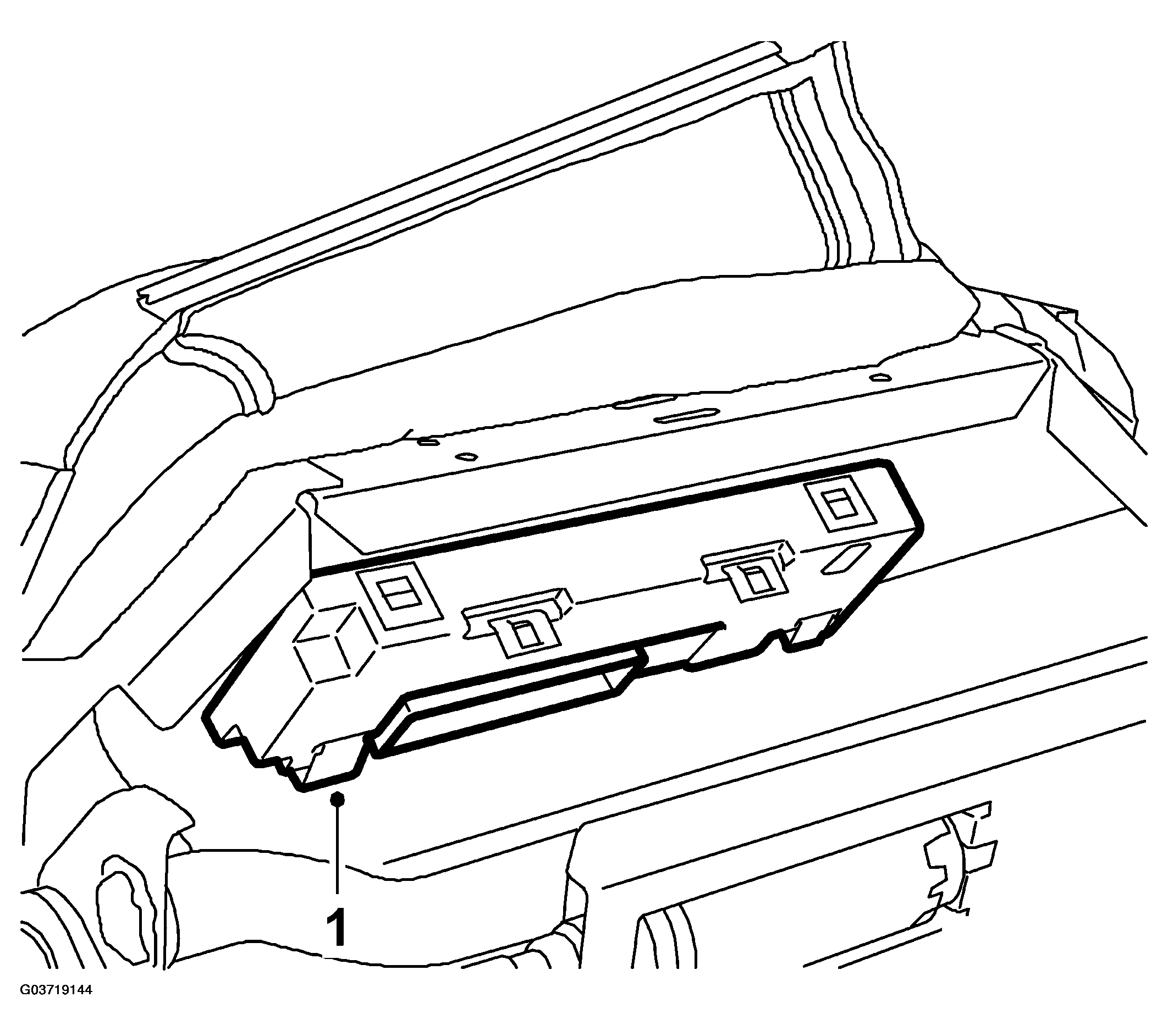

1. Move the control module forwards into the clamps.
   Fig 1: Illustration For Step 1

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Push the control module back and twist up to the mounting position.

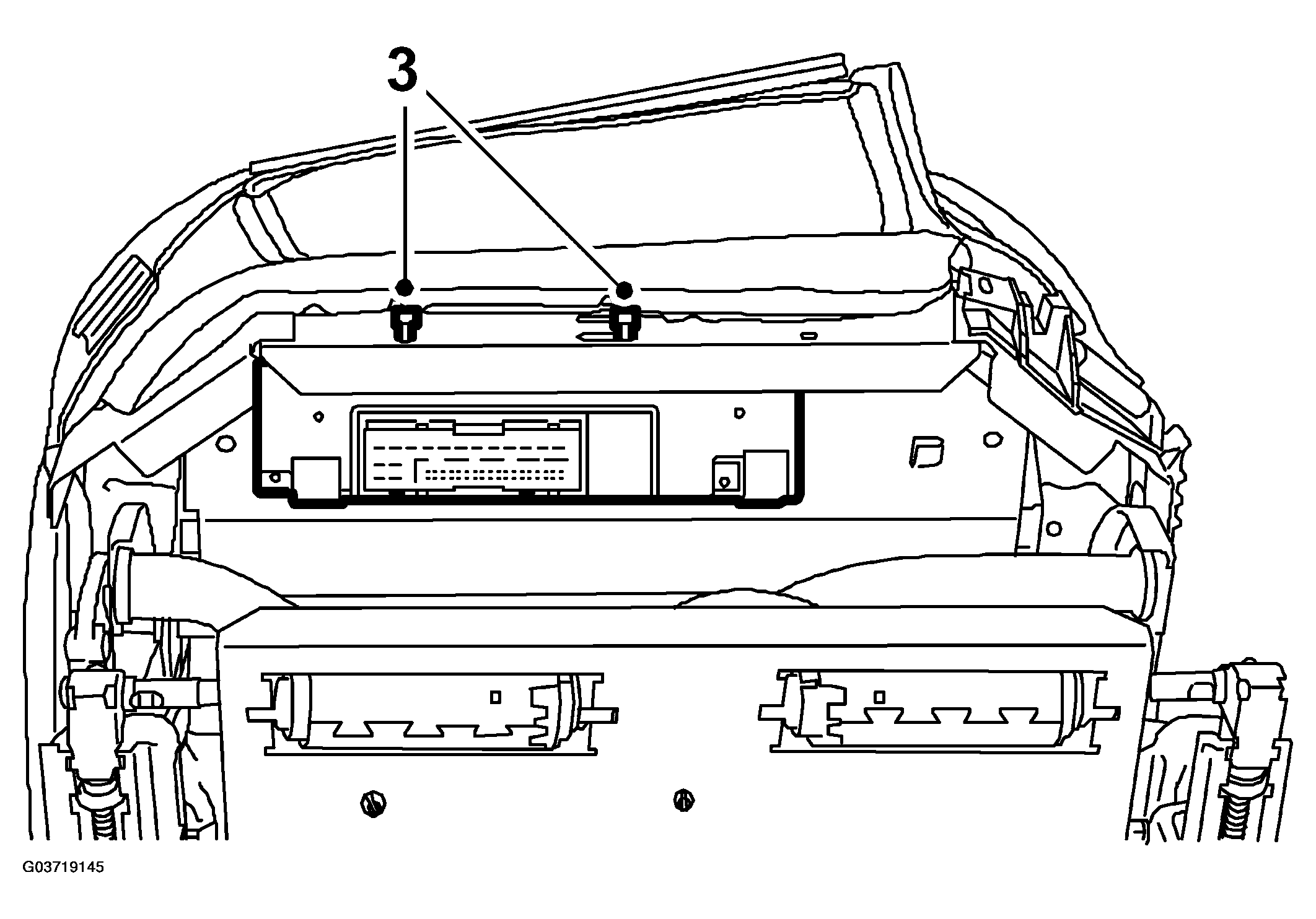

3. Fit the cable tie to the control module front edge.
   Fig 2: Illustration For Step 3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

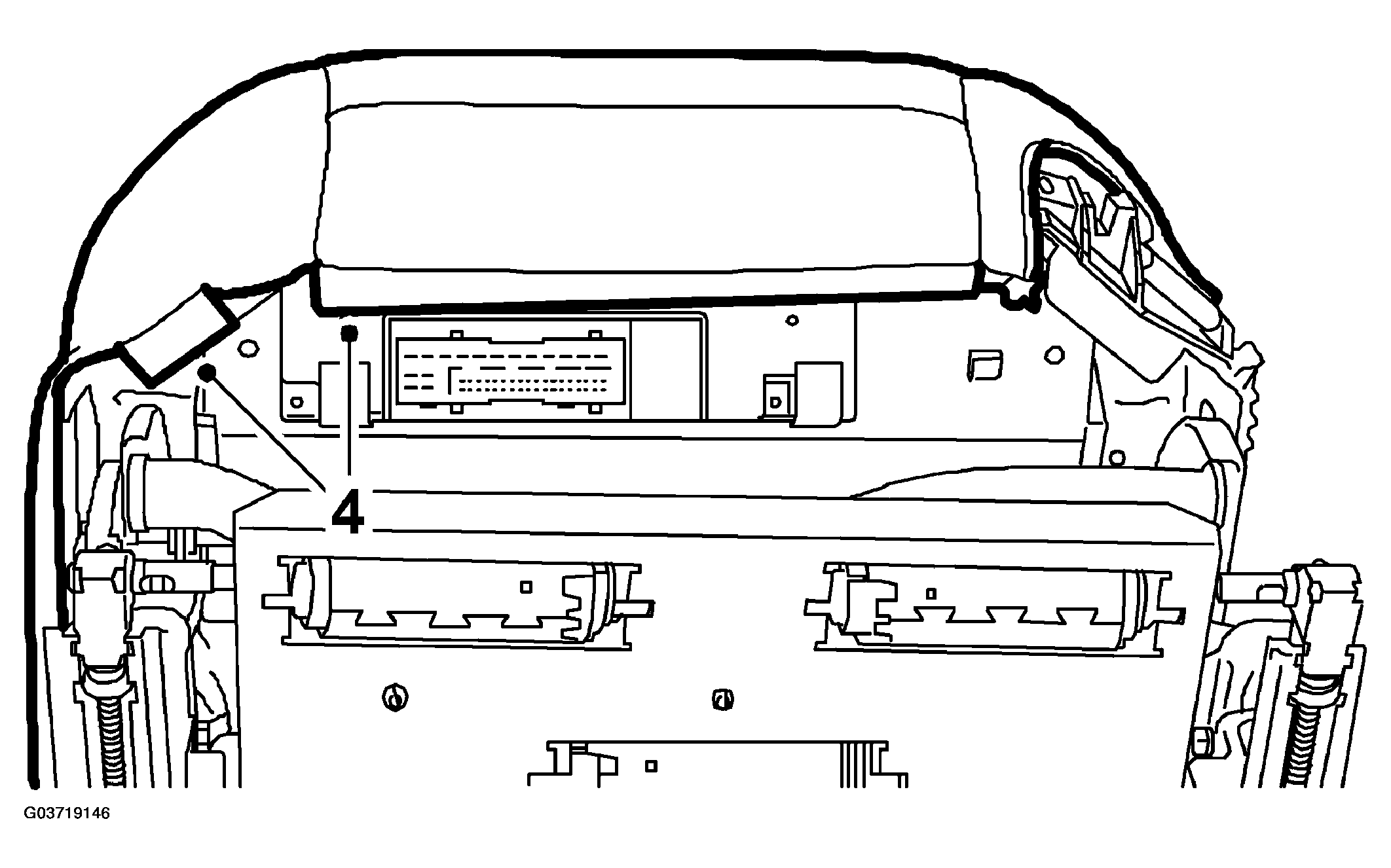

4. Fit the seat front edge upholstery.
   Fig 3: Illustration For Step 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
5. Connect the control module connector.
   Fig 4: Illustration For Step 5

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

Perform the procedure after changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
