To remove

Carry out measures before dismantling the control module.

1. Move seat to its highest position.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .

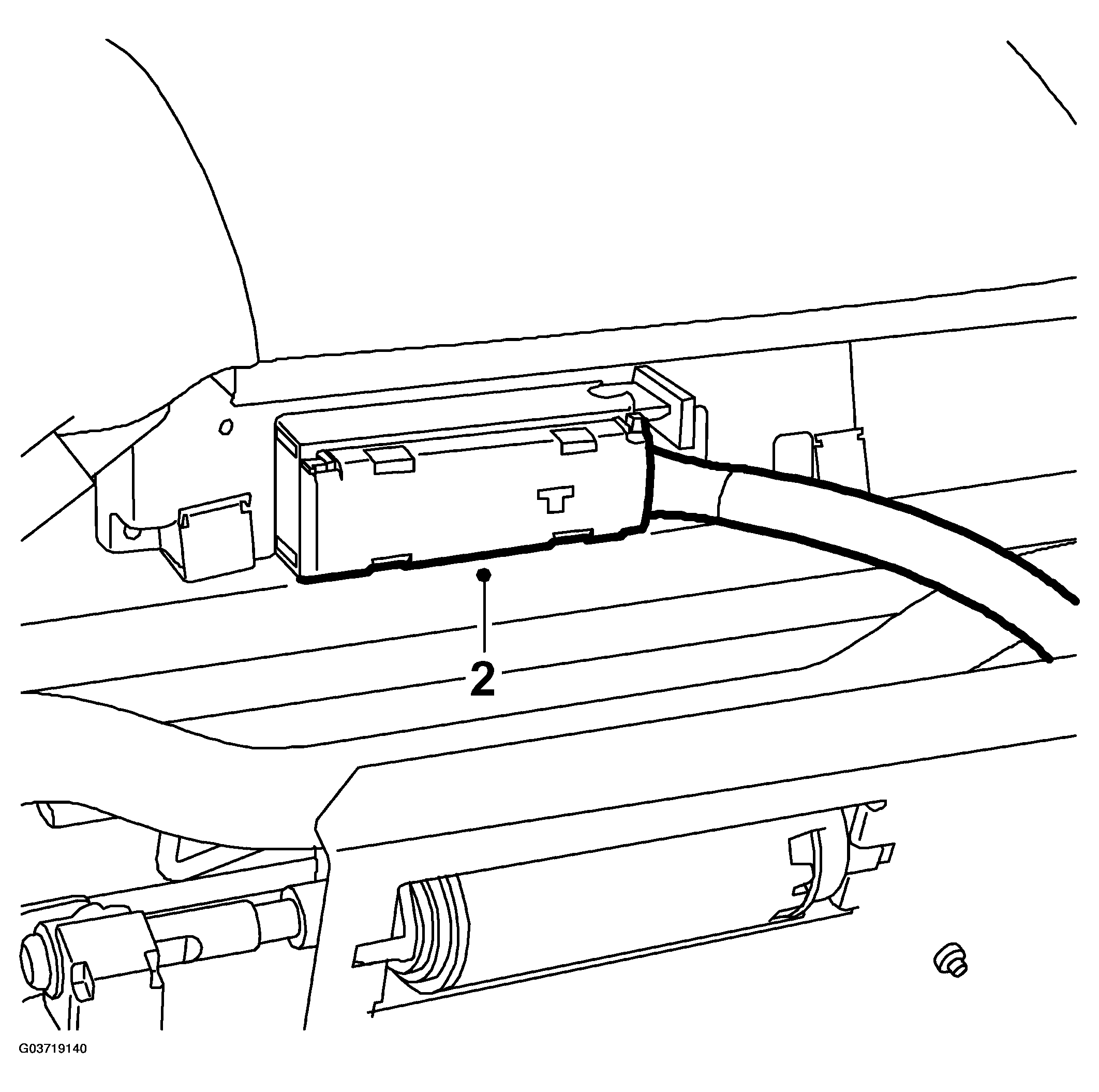

2. Disconnect the connector from the control module.
   Fig 1: Illustration For Step 2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

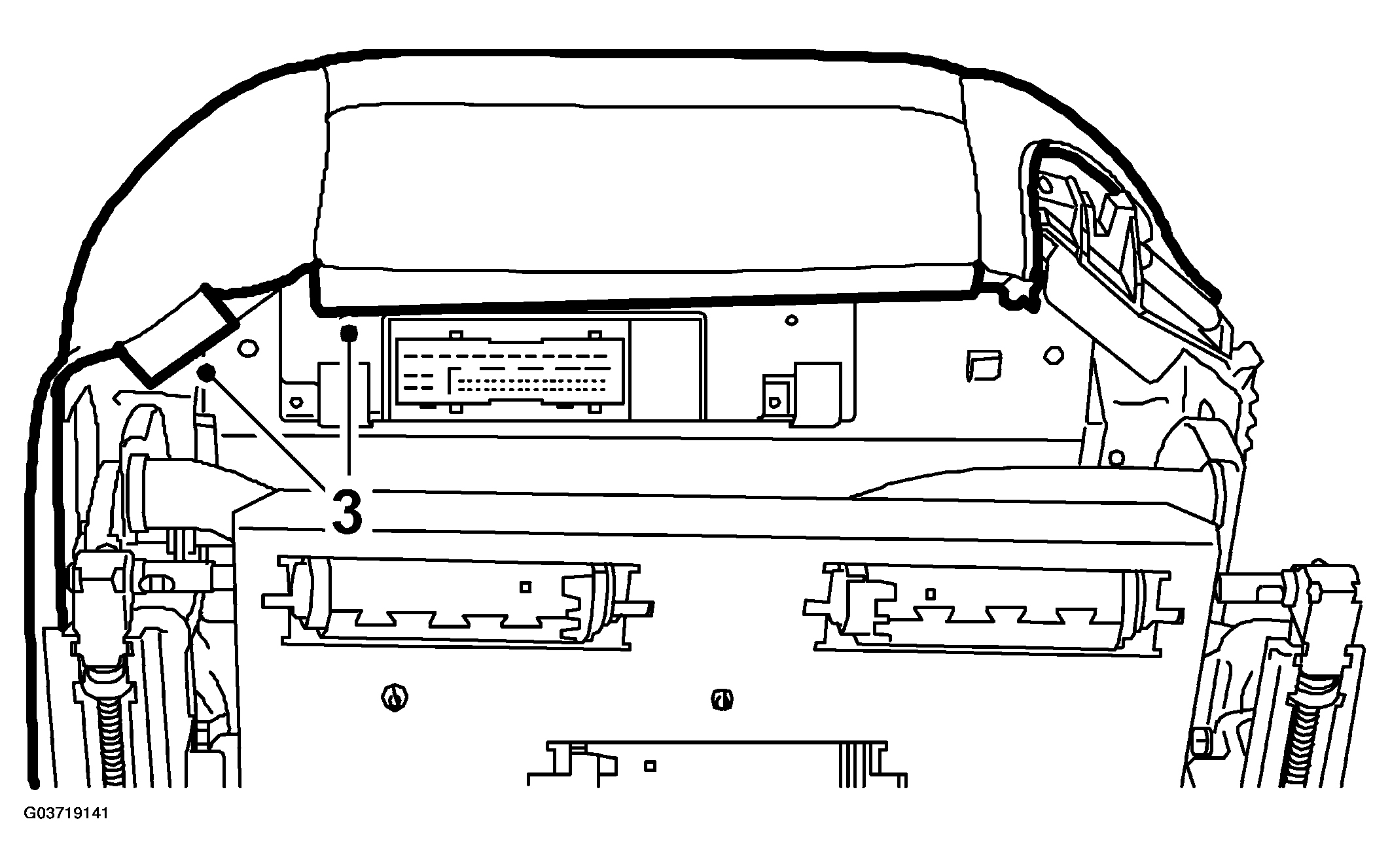

3. Remove the upholstery from the seat front edge.
   Fig 2: Illustration For Step 3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

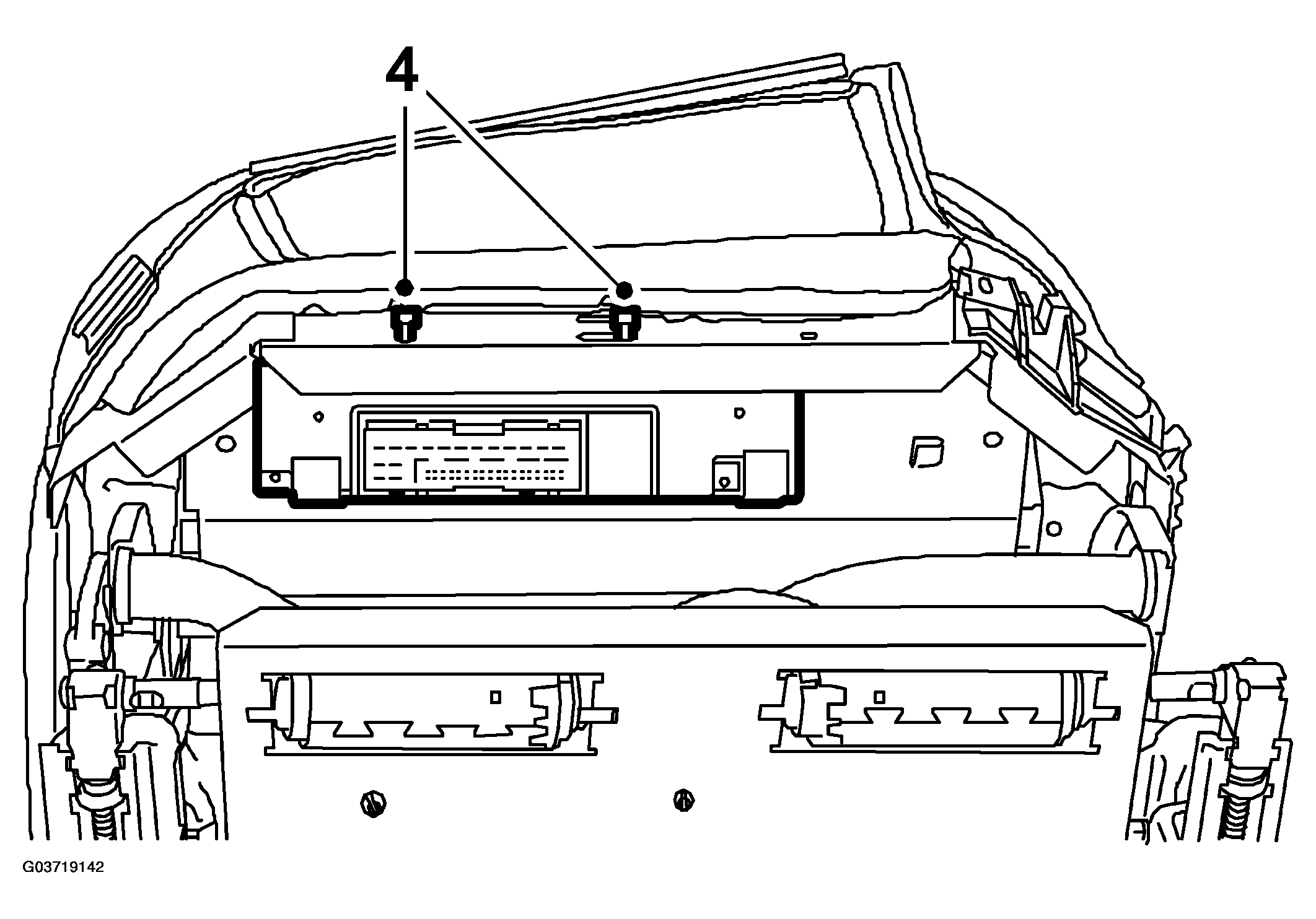

4. Remove the cable tie.
   Fig 3: Illustration For Step 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

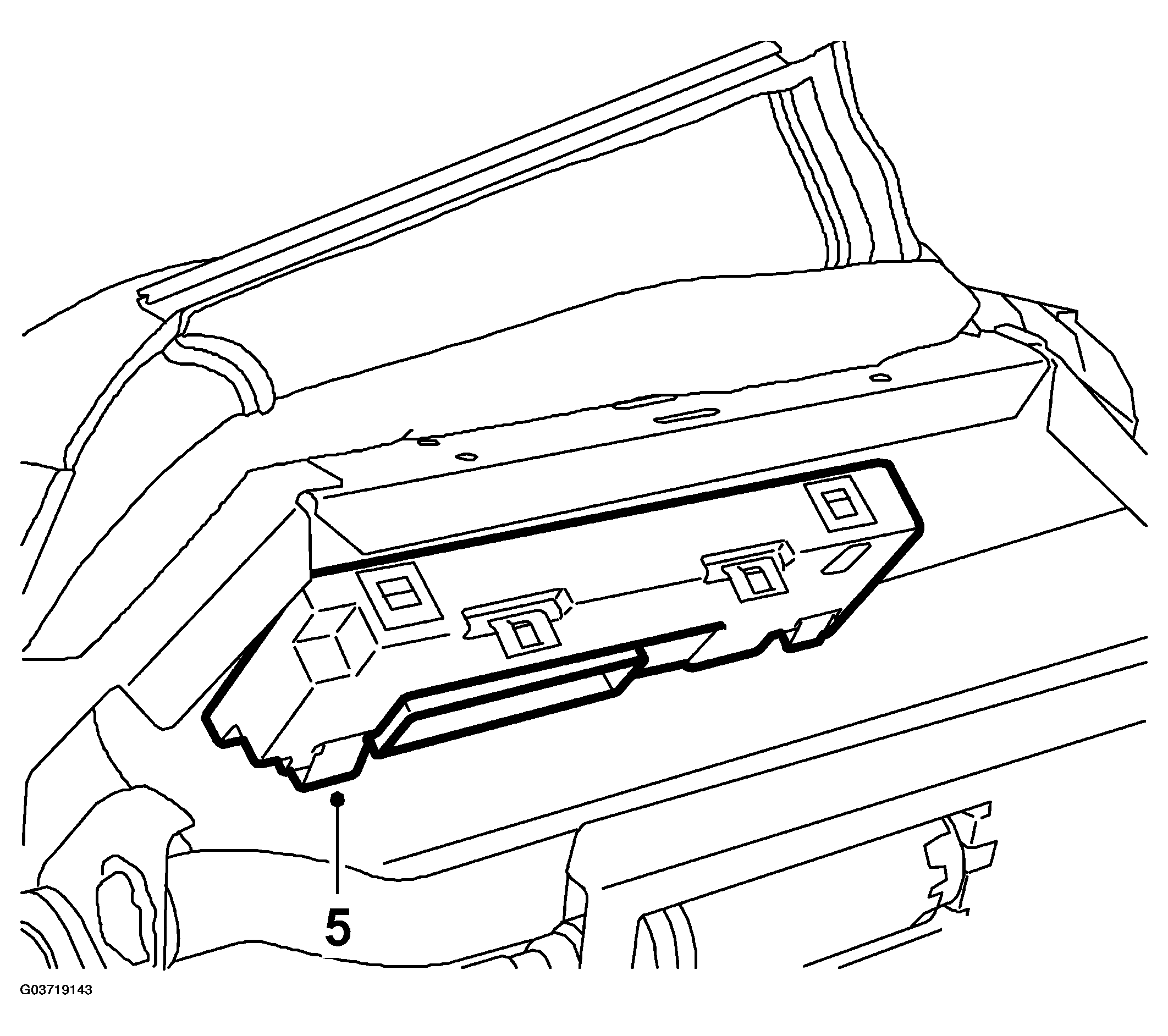

5. Push the control module back so that it detaches.
   Fig 4: Illustration For Step 5

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
