To remove

  1. Perform the procedure for Before removing a control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .
  2. Remove Door trim, CV.
  3. Lay the side of the door on a clean, soft surface.
  4. Unplug the connector for the luggage compartment switch.
  5. When replacing the driver's door module: Remove the door trim bolt.

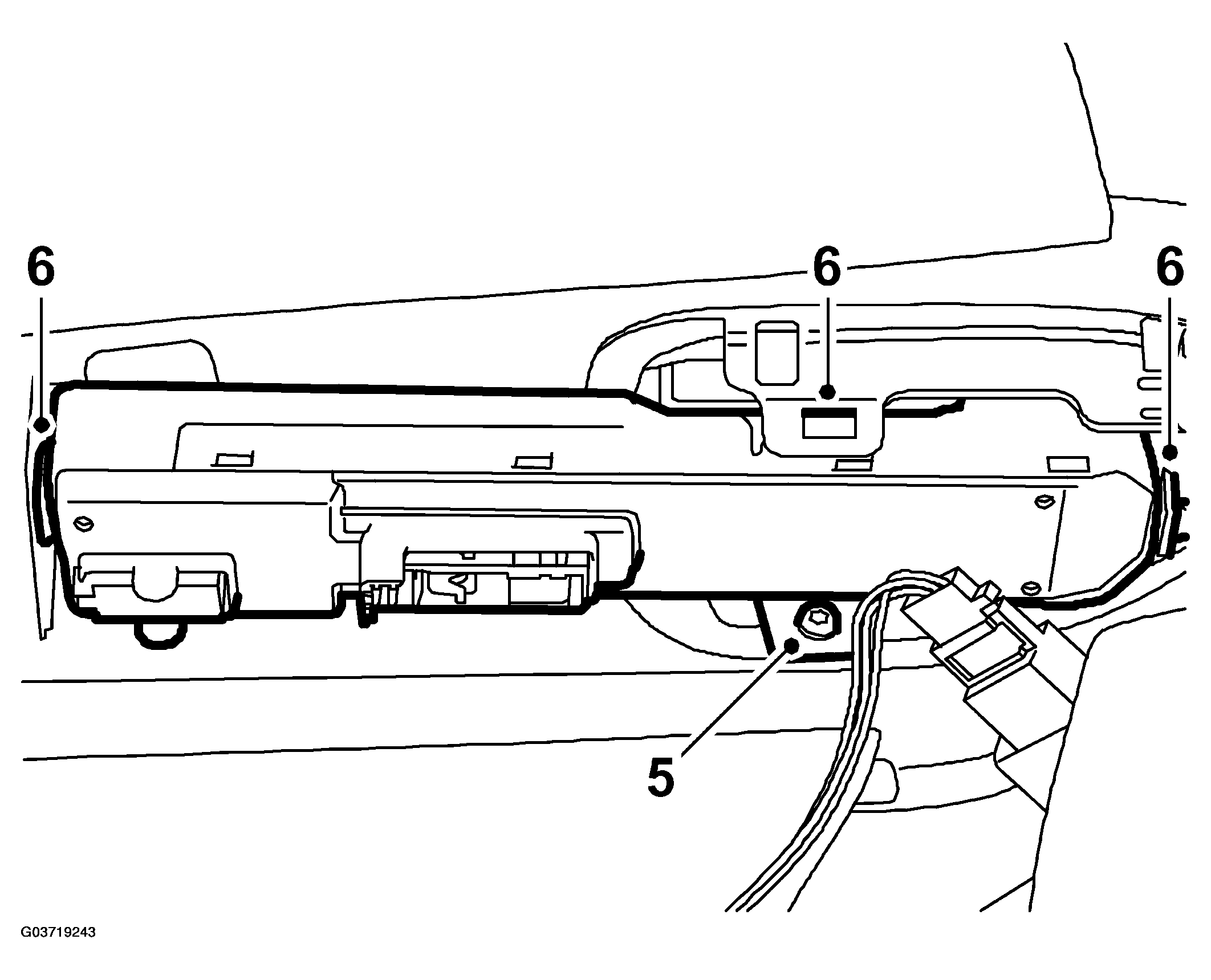

    Fig 1: Illustration For Steps 5-6
    G03719243Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the control module with a screwdriver. First, remove the rear clip followed by the internal and external door module clips. Carefully pull the control module downwards and to the rear.
