To remove

Carry out procedures before removing a control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

1. Remove the center air vent from the instrument panel by carefully bending the hooks that are accessible through the grille.

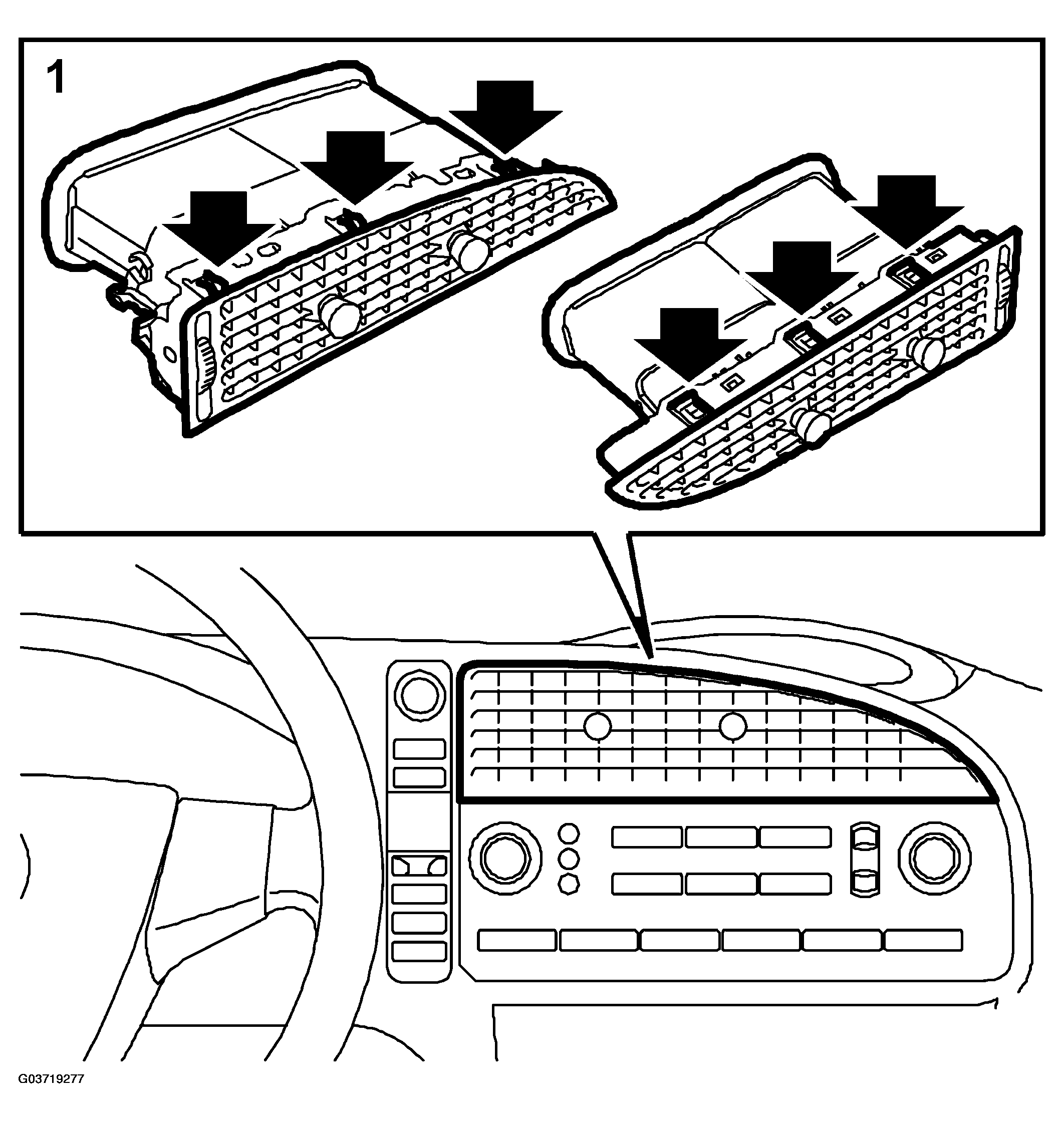

   Fig 1: Illustration For Step 1

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   NOTE: It is essential the correct hooks are bent as the hooks holding together the air vent are also visible through the grille.
2. Remove the ICM retaining screws.

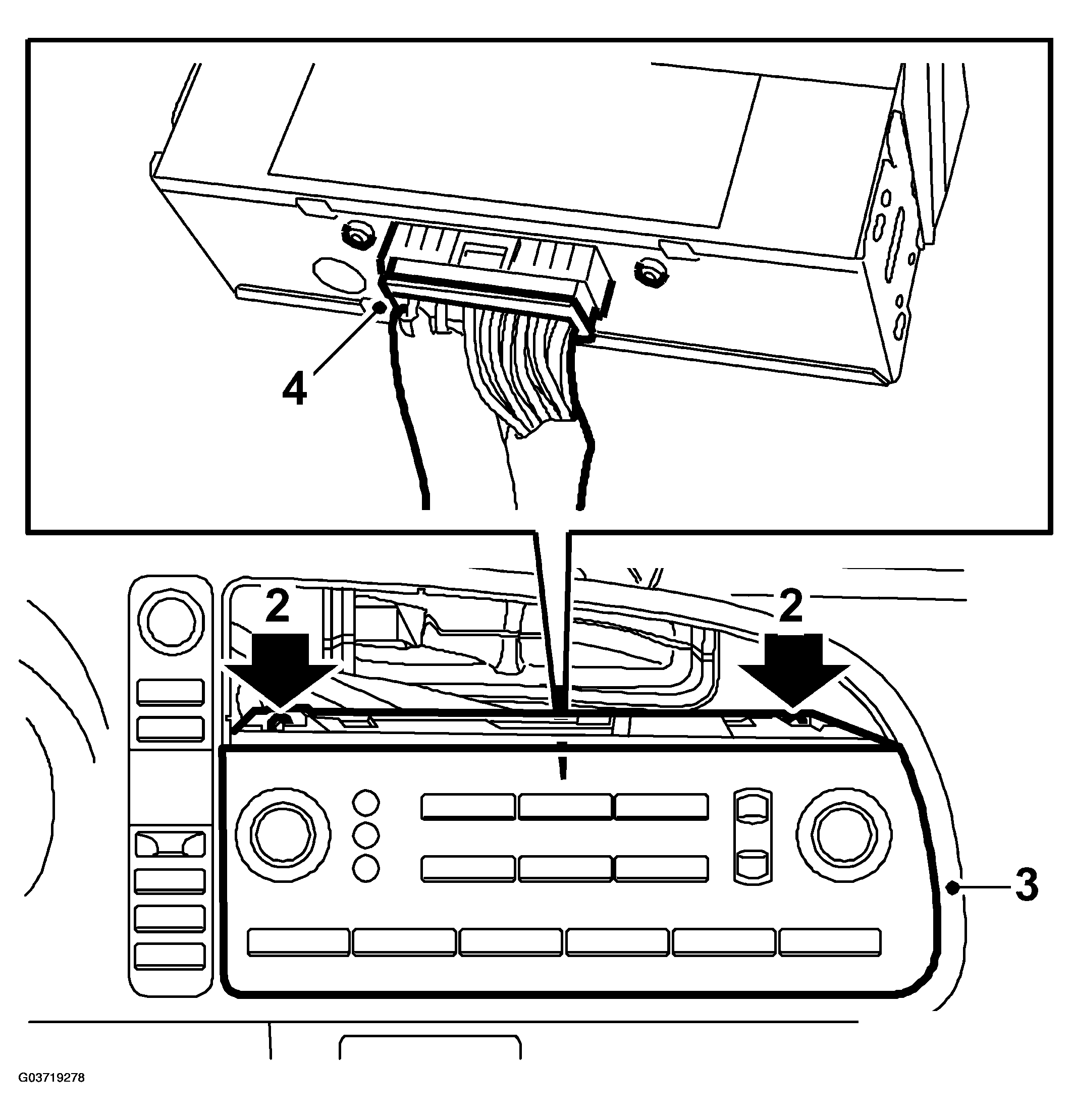

   Fig 2: Illustration For Steps 2-4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Remove the ICM unit.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
4. Unplug the connector.
