To remove

  1. Remove the lamp lens using 82 93 474 Removal tool.

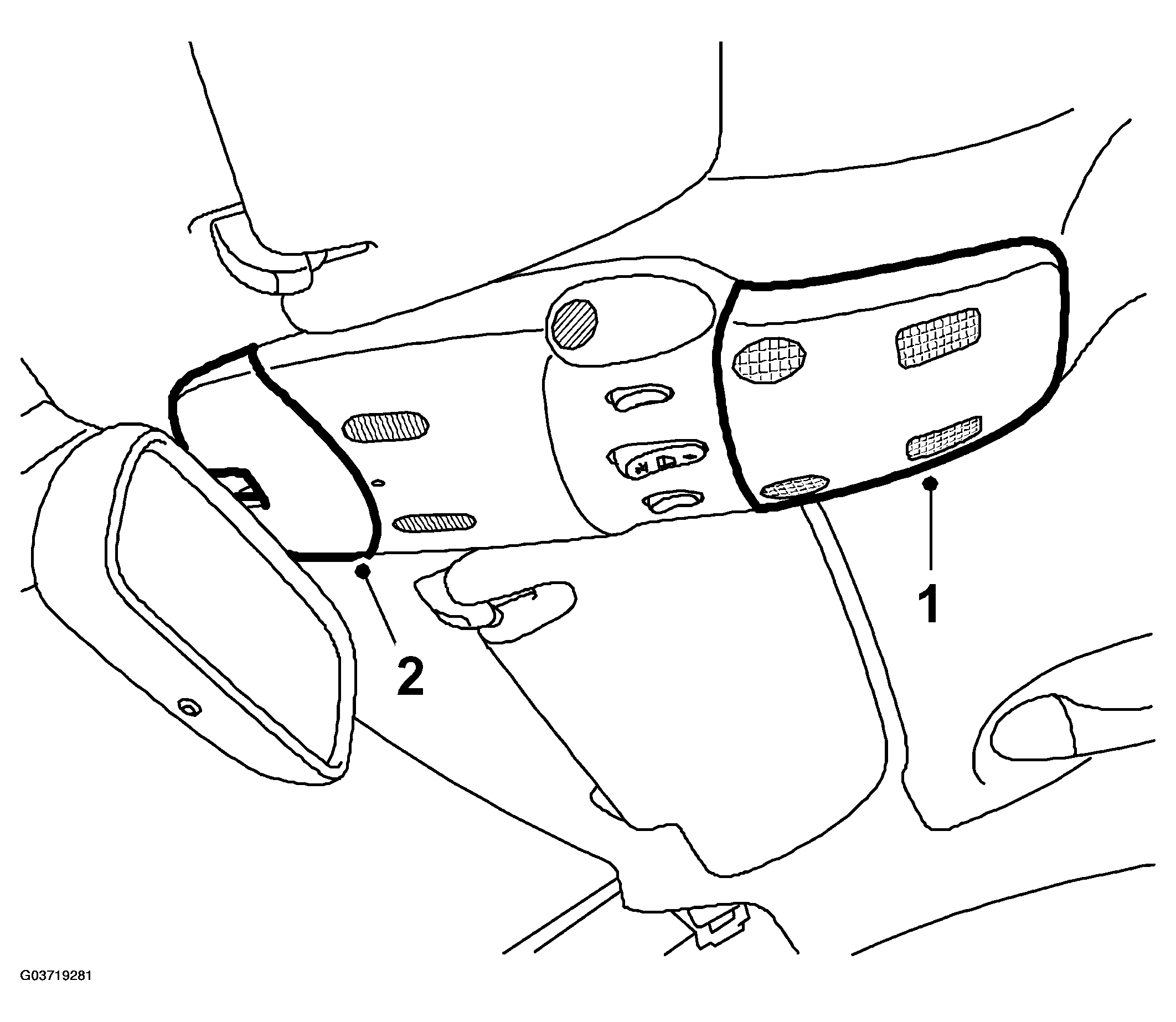

    Fig 1: Illustration For Steps 1-2
    G03719281Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the front cover using 82 93 474 Removal tool.
  3. Remove the center cover screws.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .

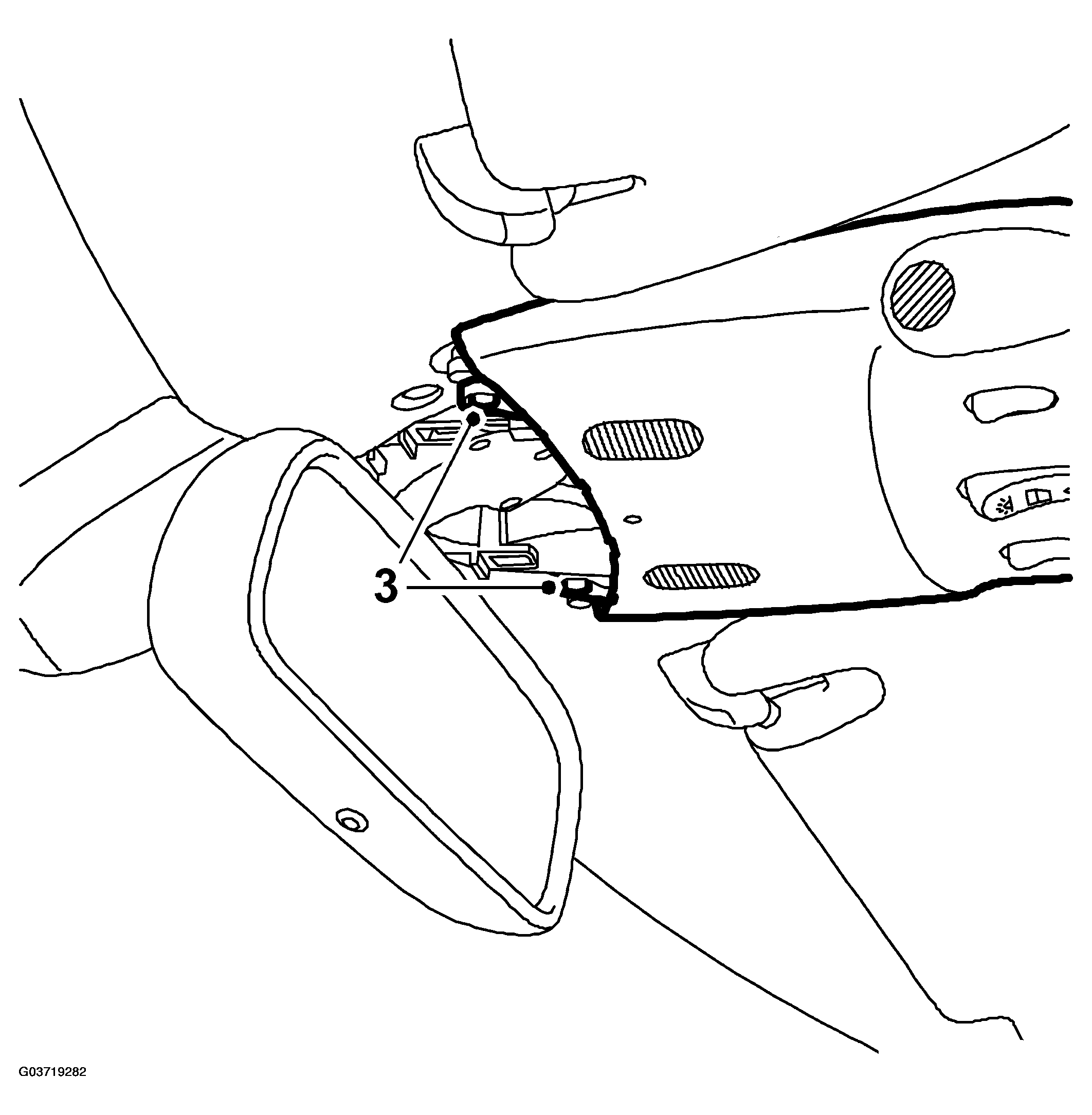

    Fig 2: Illustration For Step 3
    G03719282Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Cars with ADM:  Remove the connector from the lamp console.

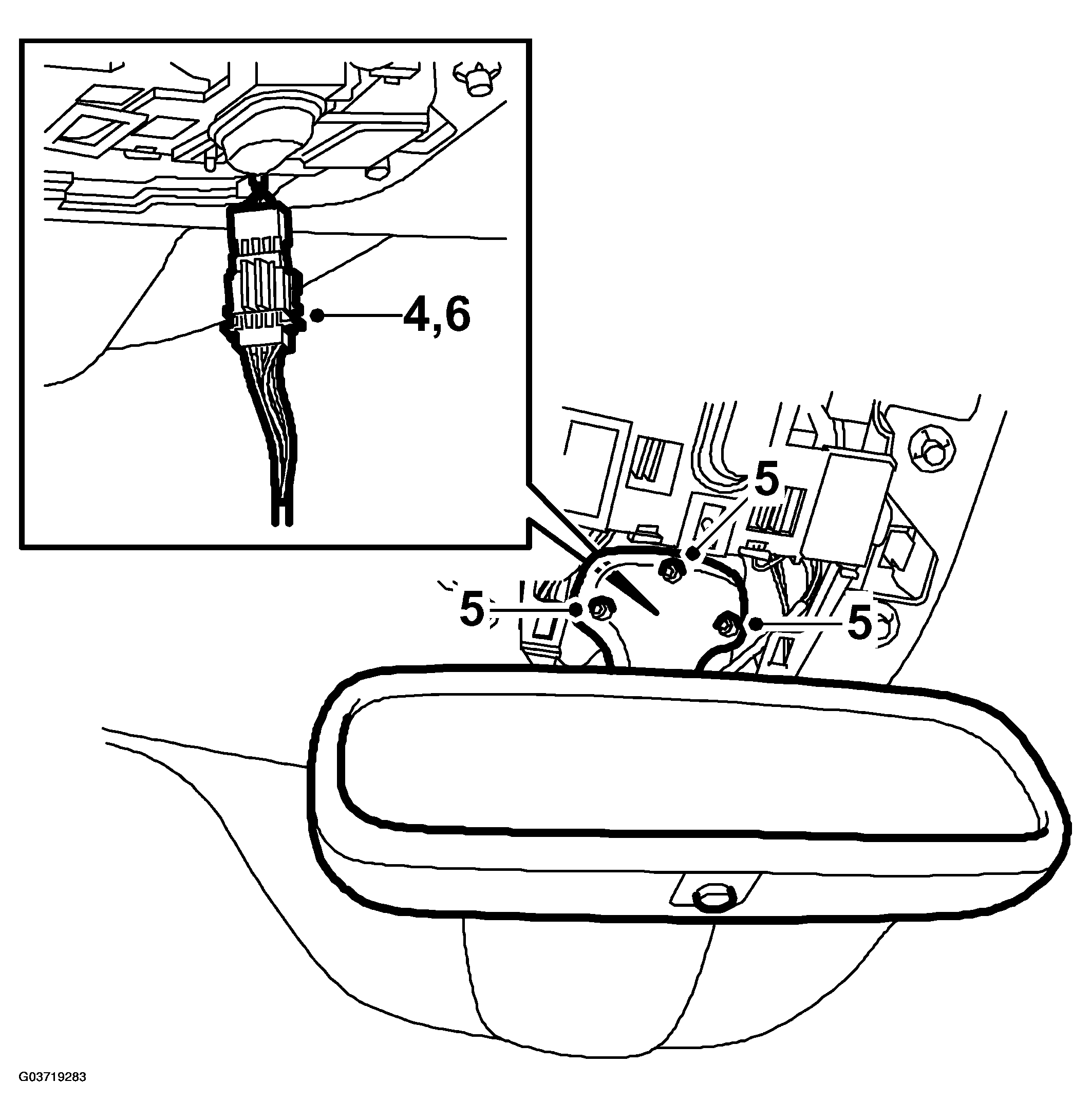

    Fig 3: Illustration For Steps 4-6
    G03719283Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the mirror screws.
  6. Cars with ADM:  Remove the connector.
  7. Lift away the rear view mirror.
