To remove

  1. Remove the MCC unit by carefully pulling it out. Use 82 93 474 Removal tool to remove the unit.

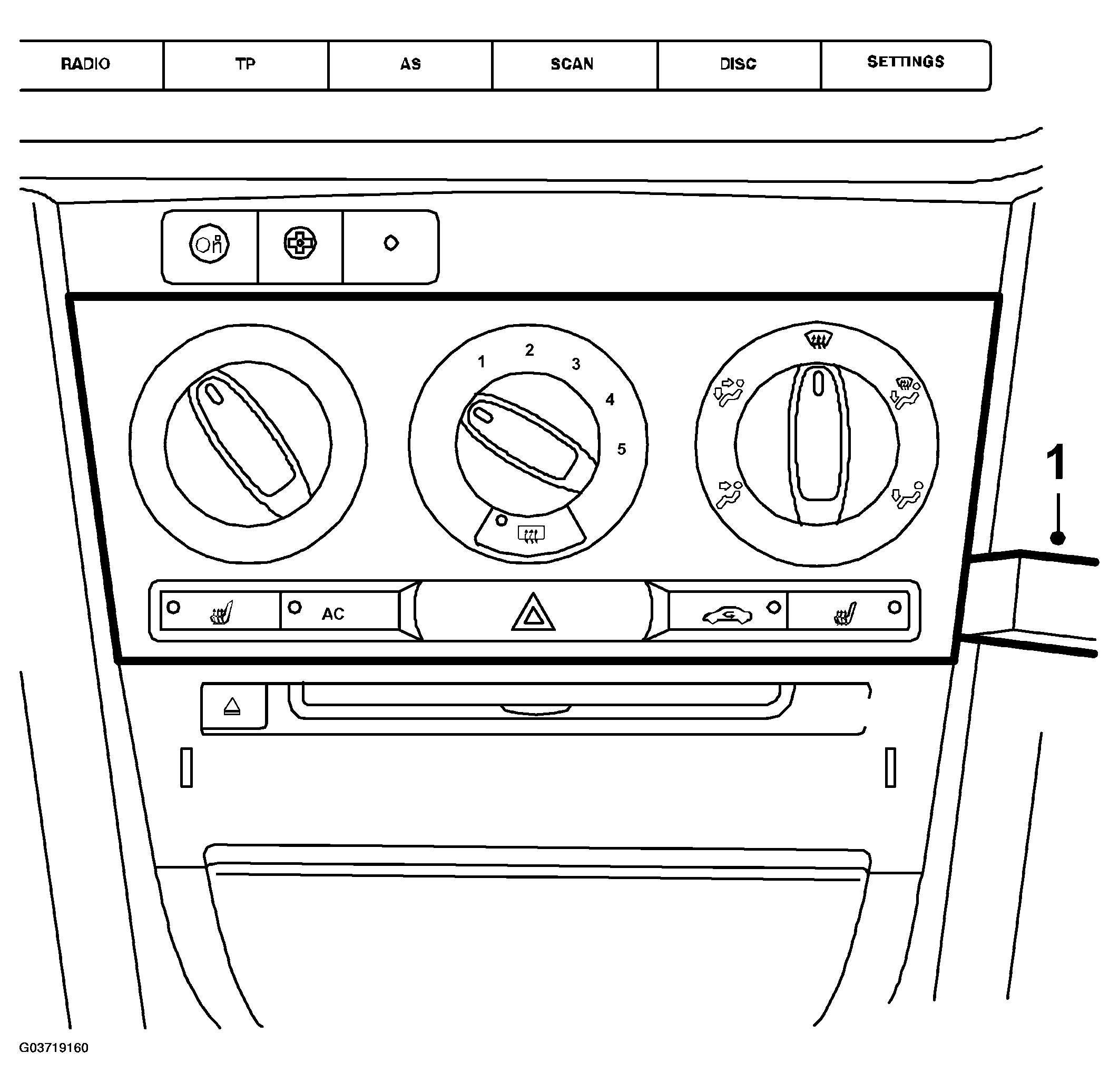

    Fig 1: Illustration For Step 1
    G03719160Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  2. Remove the MCC unit's connector.

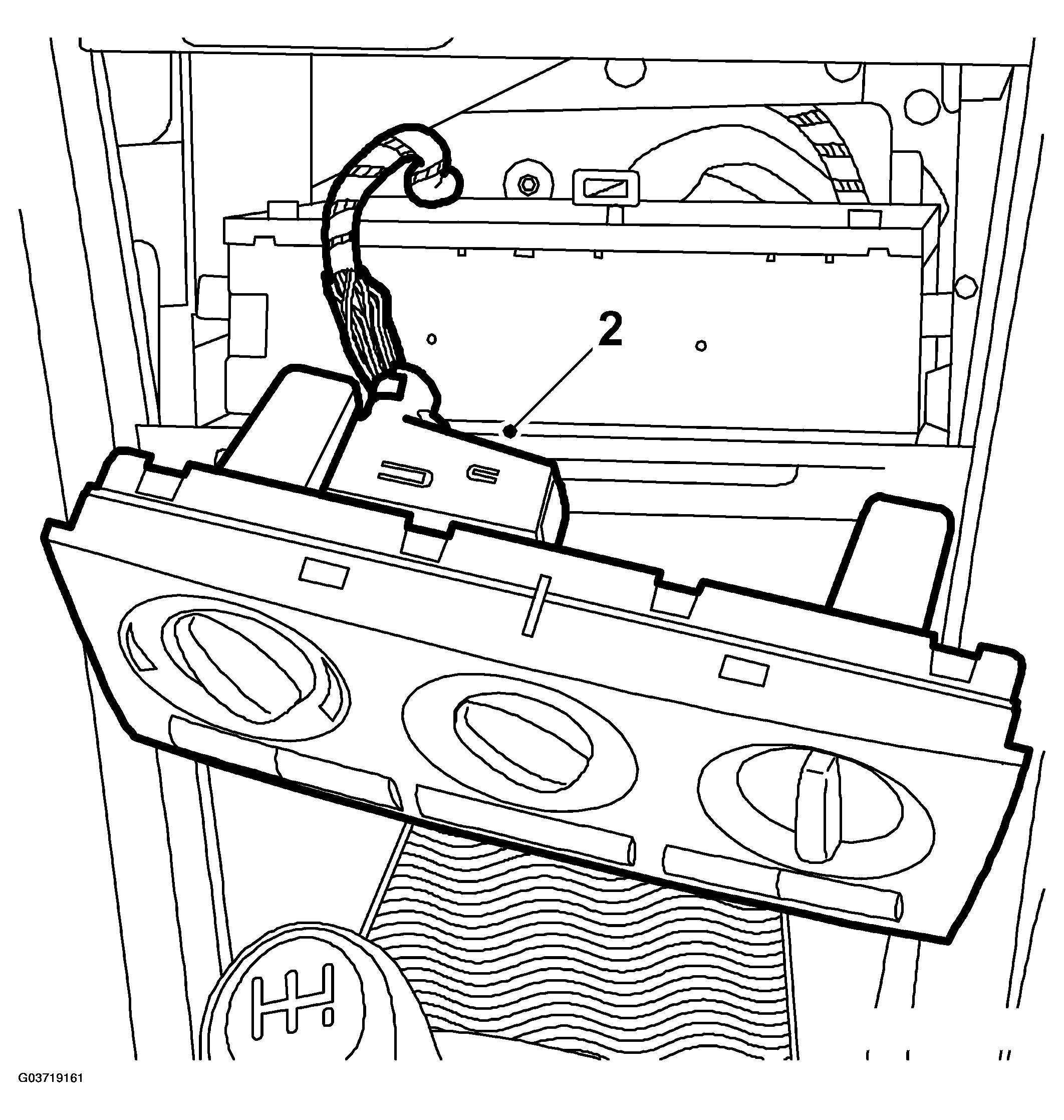

    Fig 2: Illustration For Step 2
    G03719161Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Lift out the MCC unit.
