SPA control module (630), CV: Refitting

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  1. Plug in the control module connector.

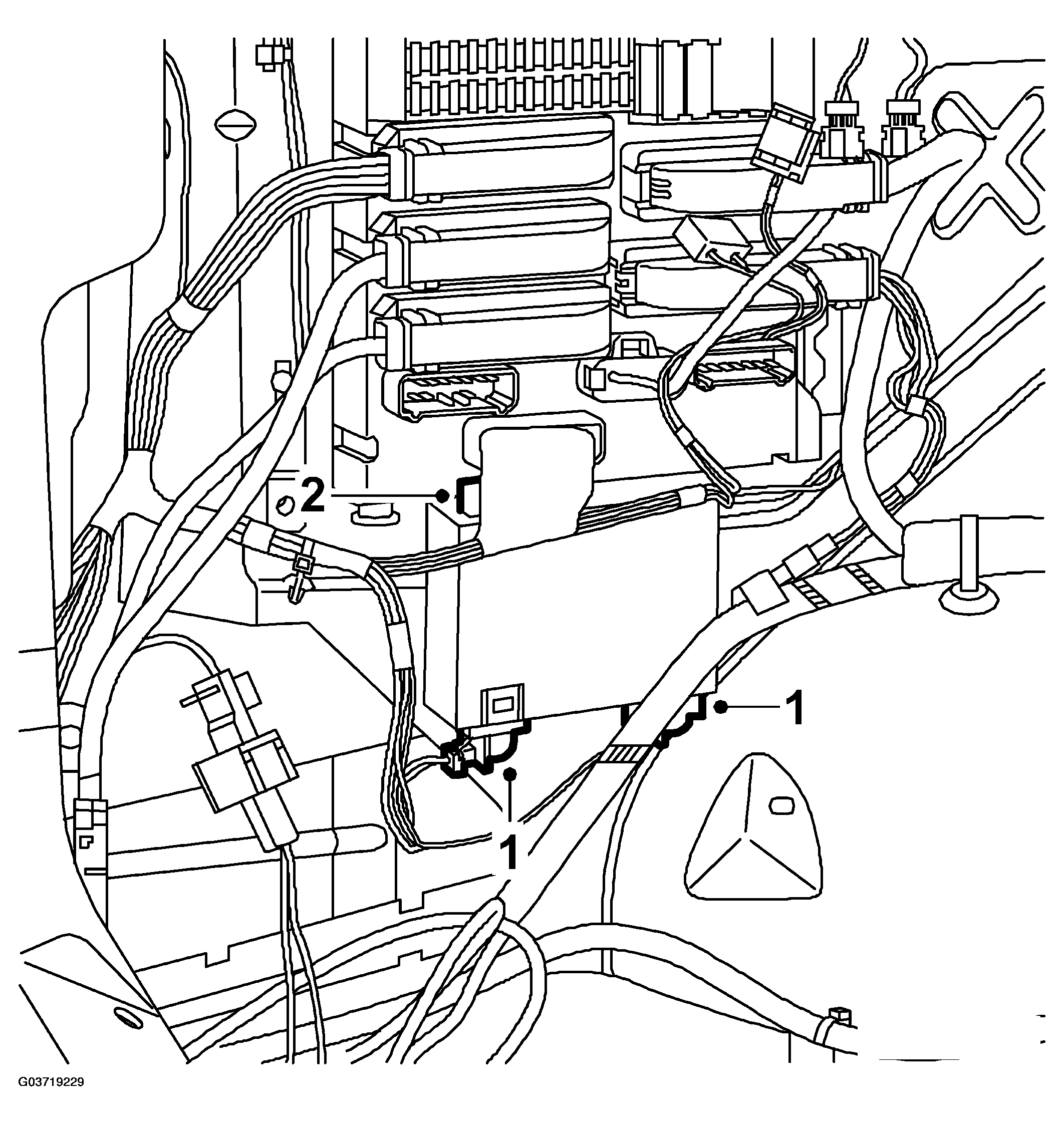

    Fig 1: Illustration For Steps 1-2
    G03719229Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press the control module onto the main fuse box.
  3. Fit the side trim on the left-hand side of the luggage compartment.
  4. Carry out procedures after changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
