To fit

  1. Fit the receiver to the holder.

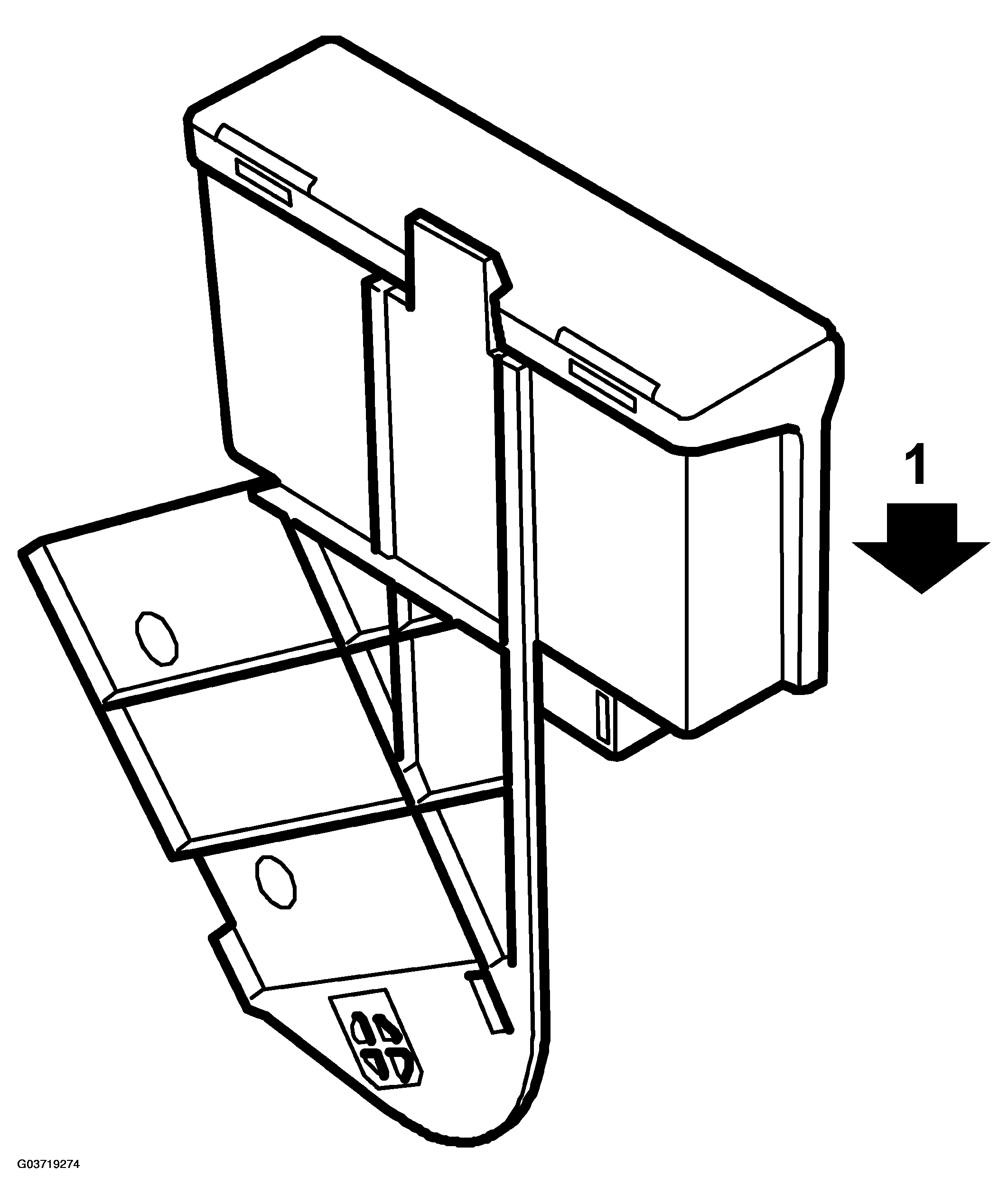

    Fig 1: Illustration For Step 1
    G03719274Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the holder with receiver.

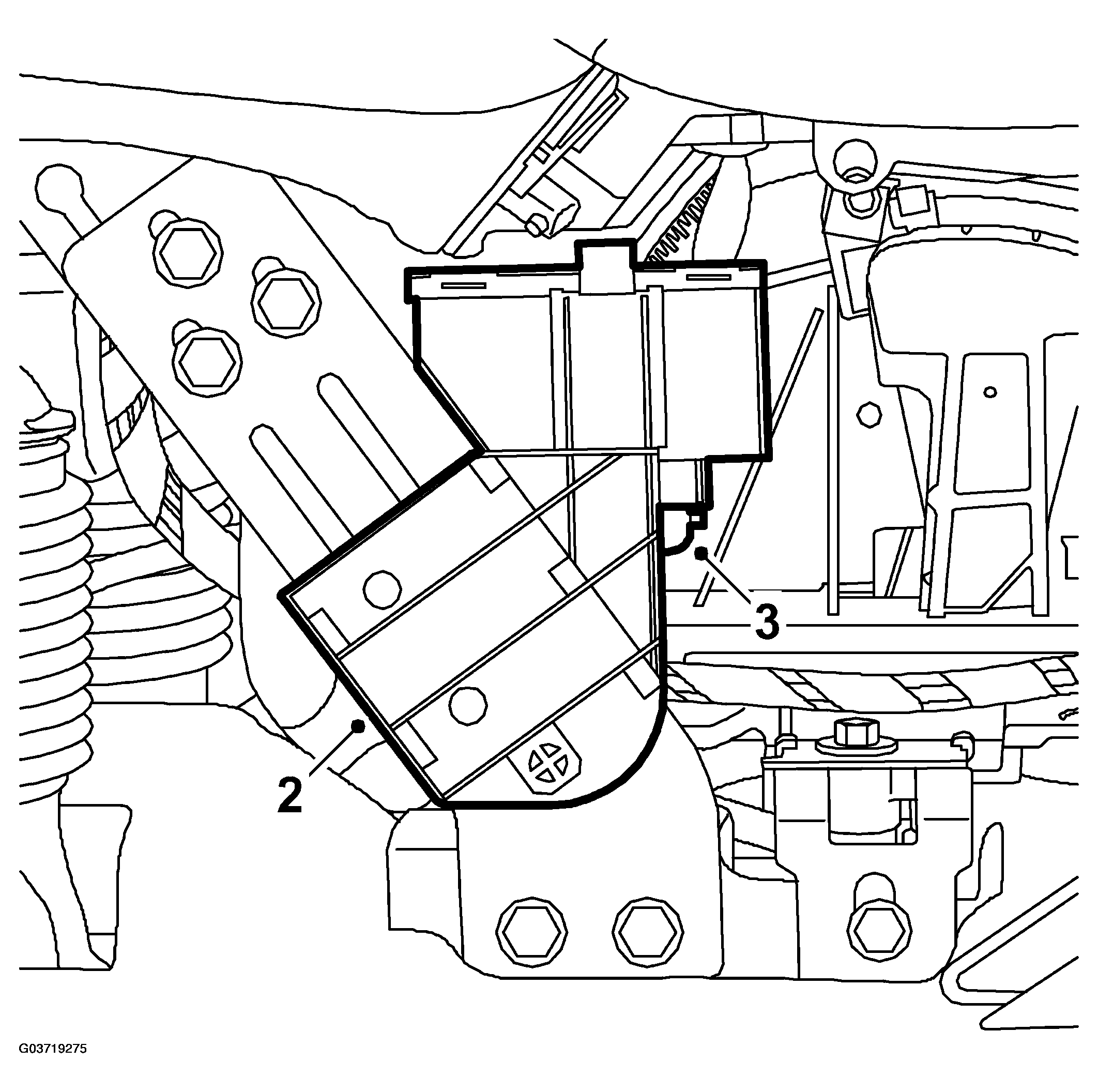

    Fig 2: Illustration For Steps 2-3
    G03719275Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  3. Plug in the connector.
    NOTE: Make sure that the switch locks properly.
  4. Fit the cover to the center console.

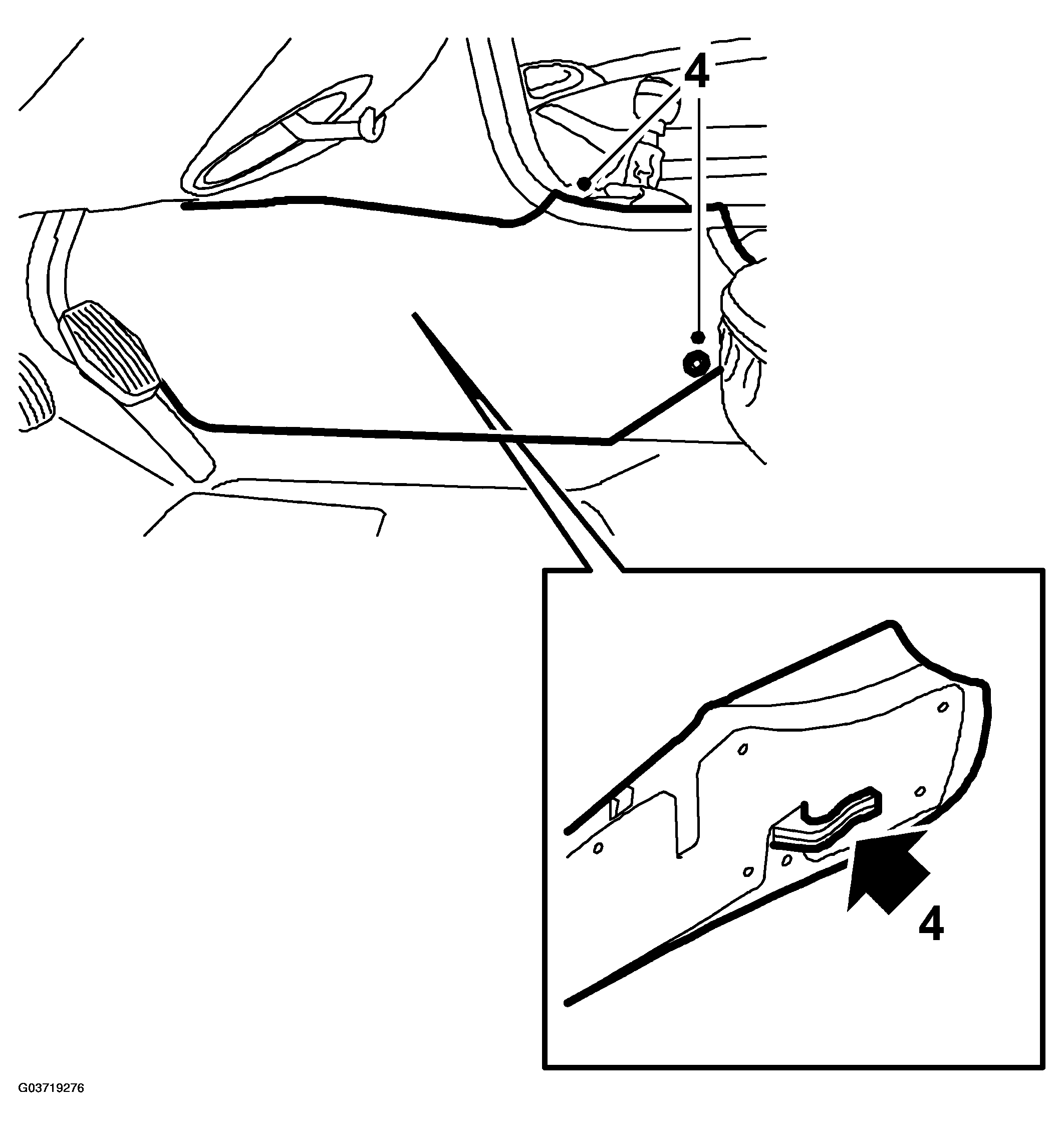

    Fig 3: Illustration For Step 4
    G03719276Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. When fitting a new control module:  Carry out procedures after fitting a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
