To remove

Before removal, see PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

1. Remove the battery cover and the battery cooling pipe.

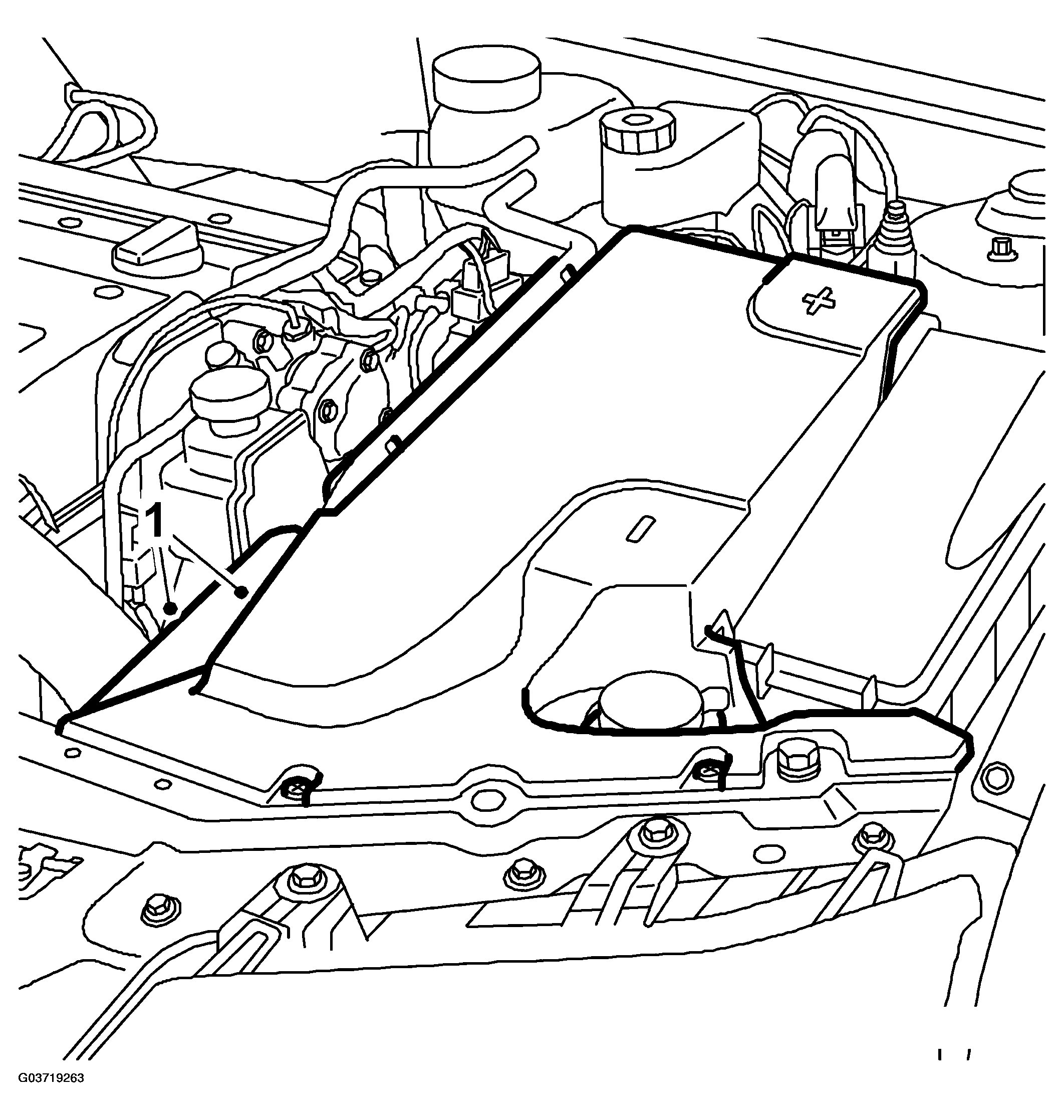

   Fig 1: Illustration For Step 1

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
2. Unplug the control module connector.

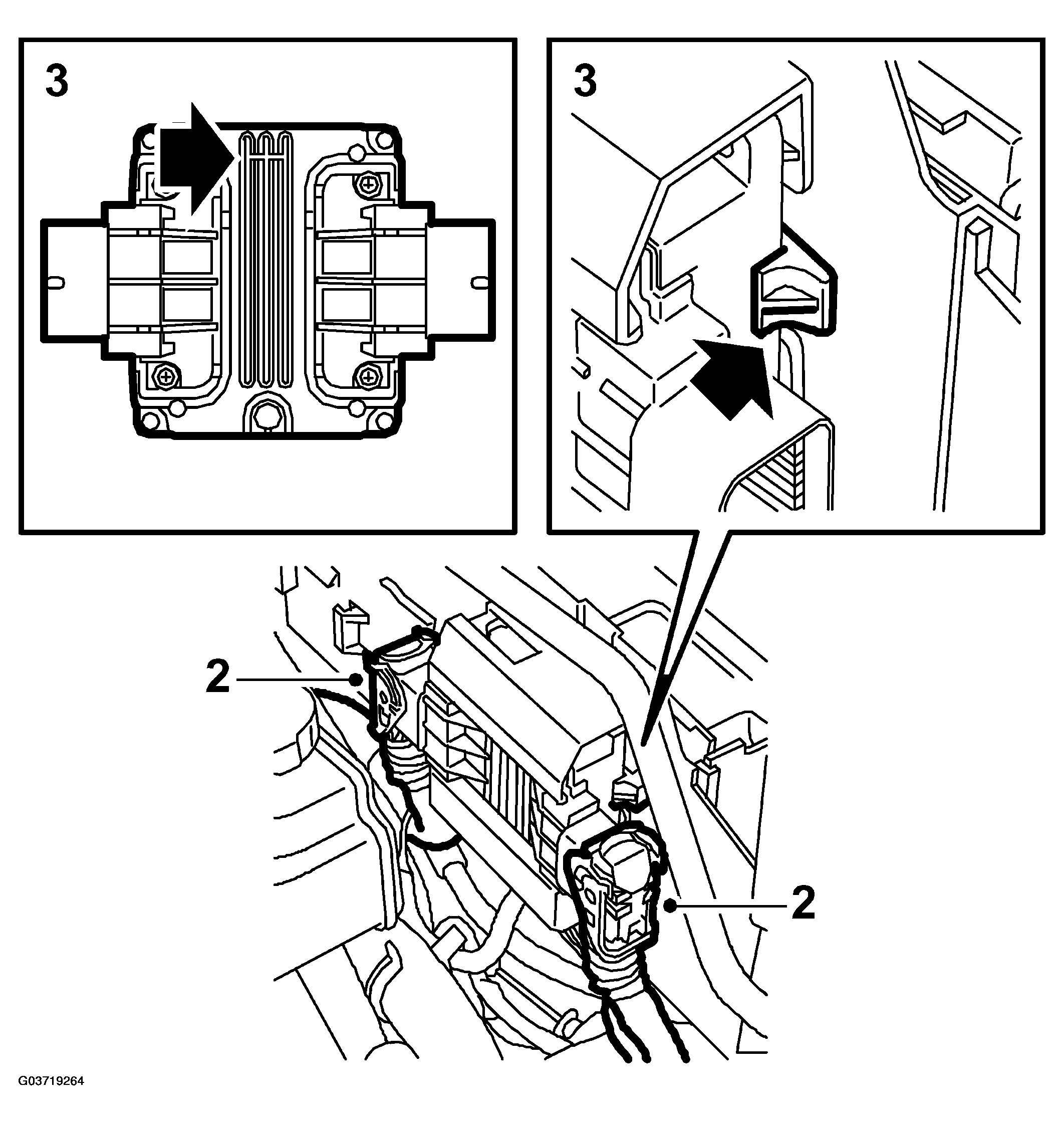

   Fig 2: Illustration For Steps 2-3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Remove the control module. Make a note of how it is mounted for correct refitting.
