Control module seat (357k): Location

Location: in the seat under the cushion

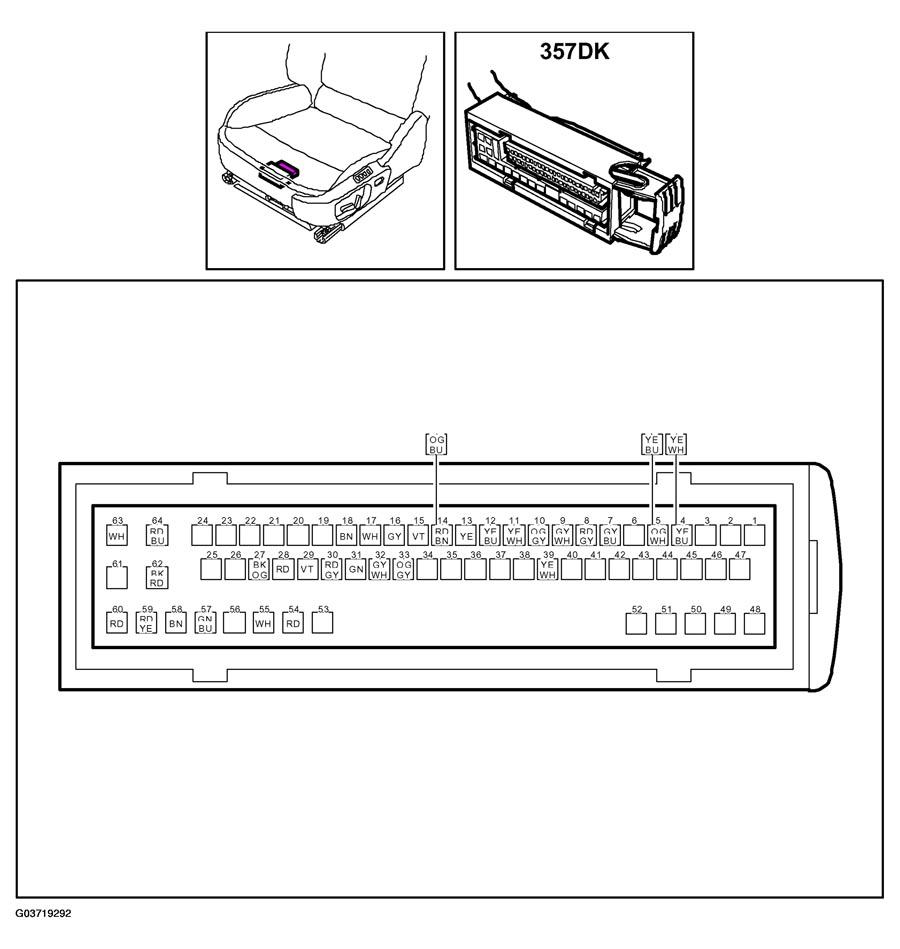

Fig 1: Identifying Control Module Seat (357K) Connector Pinouts
G03719292Courtesy of SAAB-SCANIA OF AMERICA, INC.
