Control module, STC (565): Location: K27A

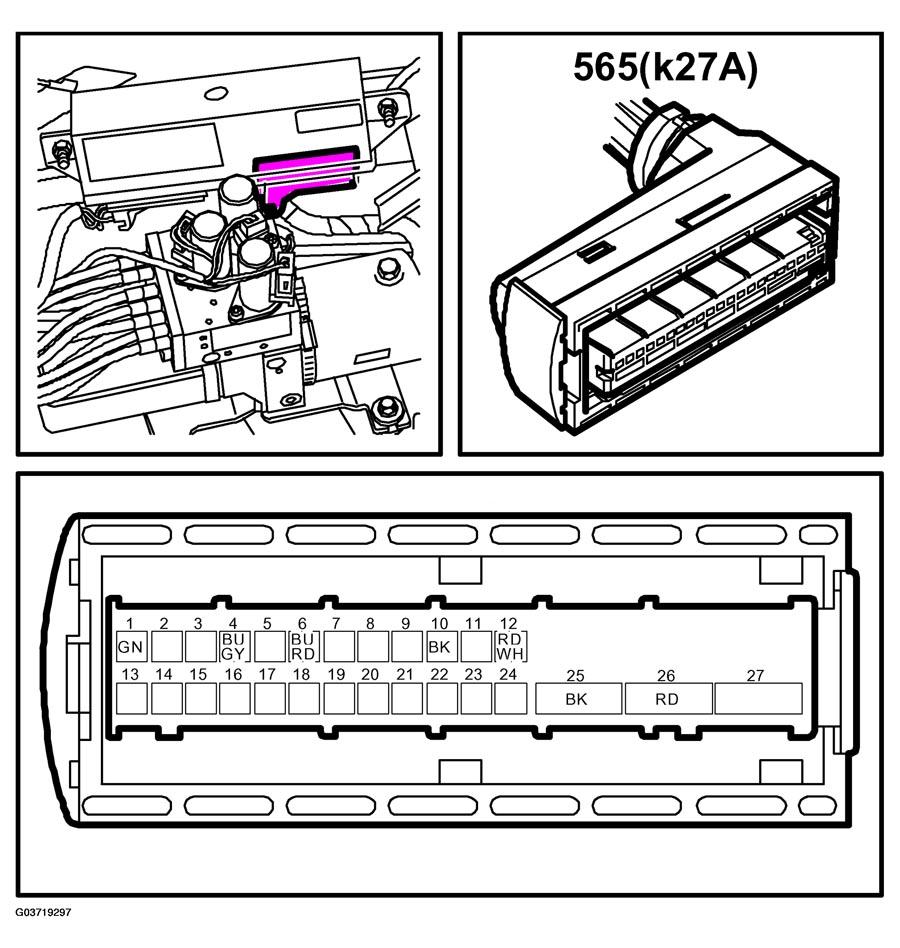

Fig 1: Identifying Control Module STC (565) Connector Pinouts
G03719297Courtesy of SAAB-SCANIA OF AMERICA, INC.
