Control module, STC (565): Location: K27B

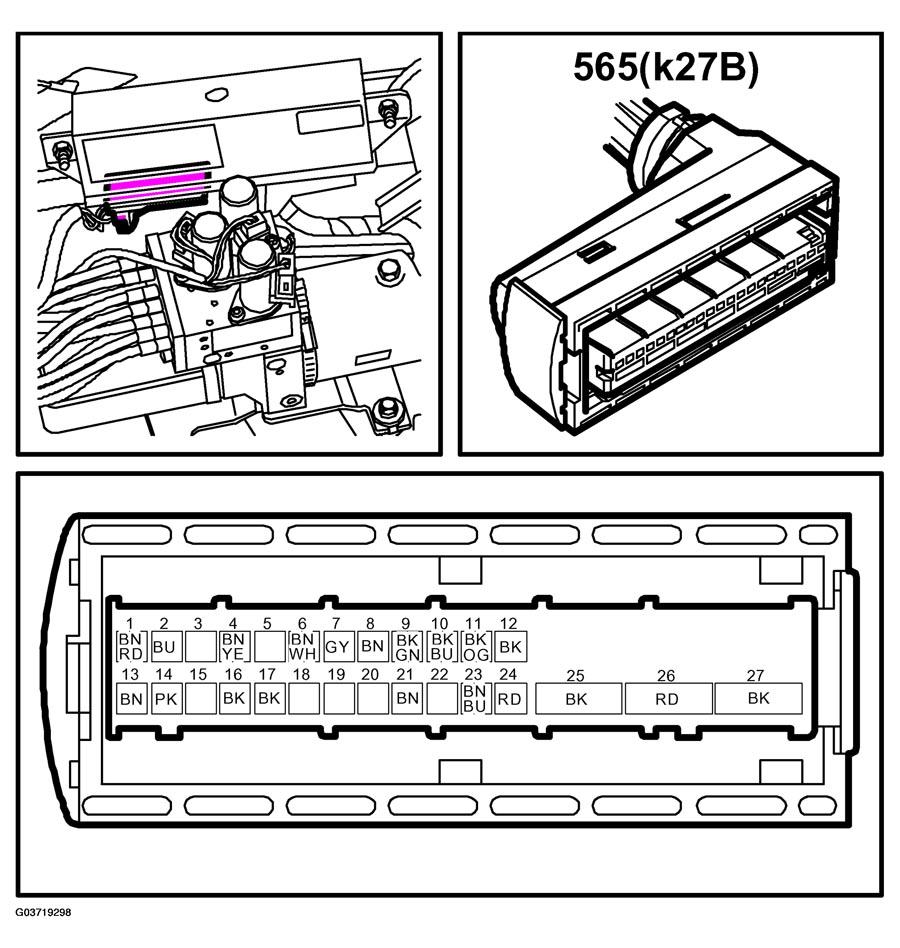

Fig 1: Identifying Control Module STC K27B Connector Pinouts
G03719298Courtesy of SAAB-SCANIA OF AMERICA, INC.
