Control module, Simtec, Z18XE, switch A (engine) (705A): Location

Location: behind/above connector on the engine control module

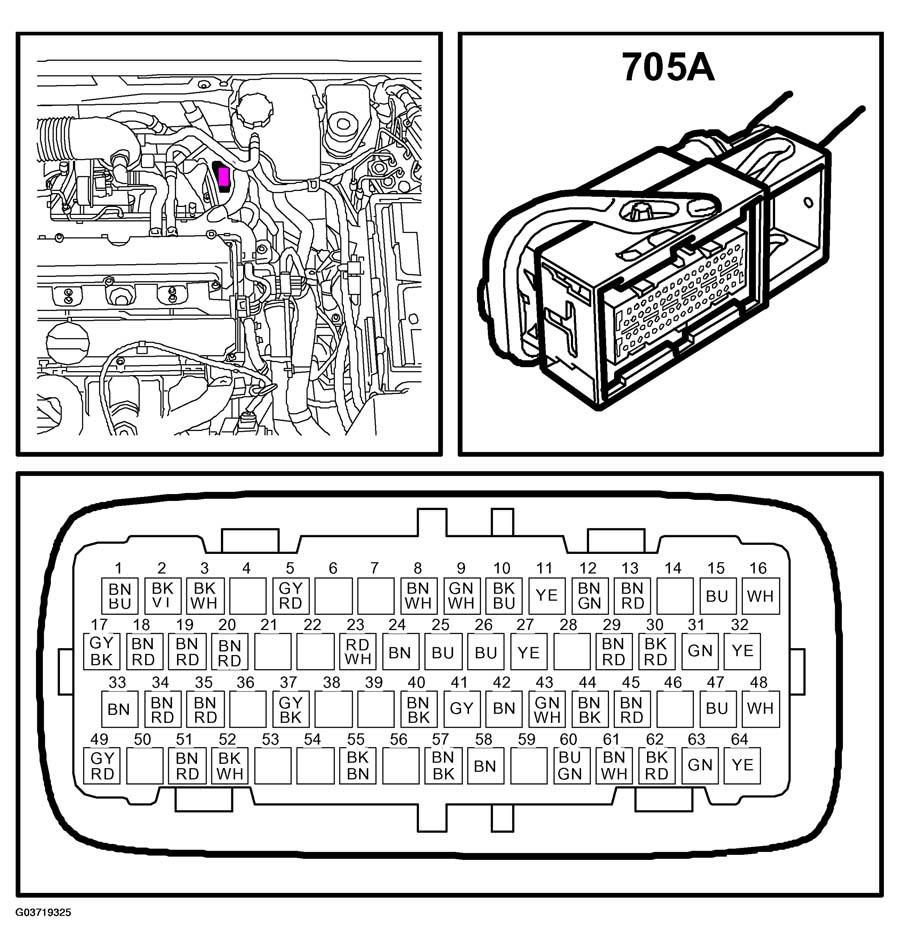

Fig 1: Identifying Simtec, Z18Xe, Switch A (Engine) (705A) Connector Pinouts
G03719325Courtesy of SAAB-SCANIA OF AMERICA, INC.
