Control module, Simtec, Z18XE, switch B (705B): Location

Location: front/lower connector on the engine control module

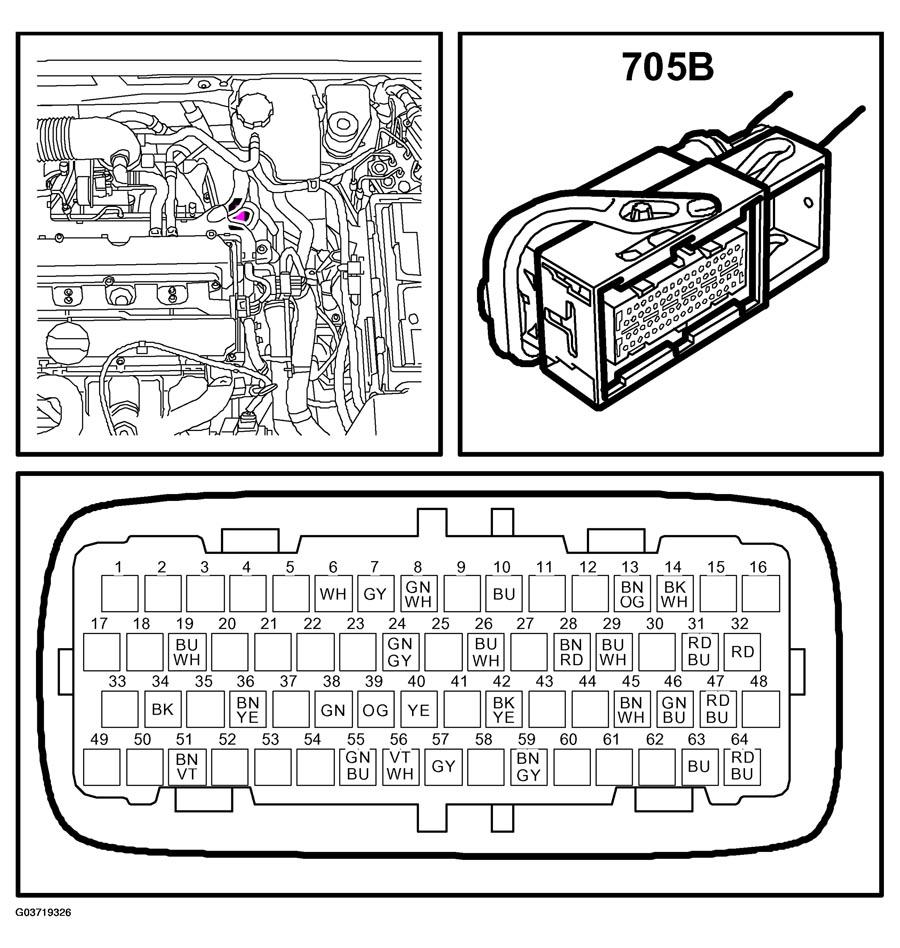

Fig 1: Identifying Simtec, Z18Xe, Switch B (705B) Connector Pinouts
G03719326Courtesy of SAAB-SCANIA OF AMERICA, INC.
