Control module, glow plug (596): Location

Location: on the battery's radiation shield

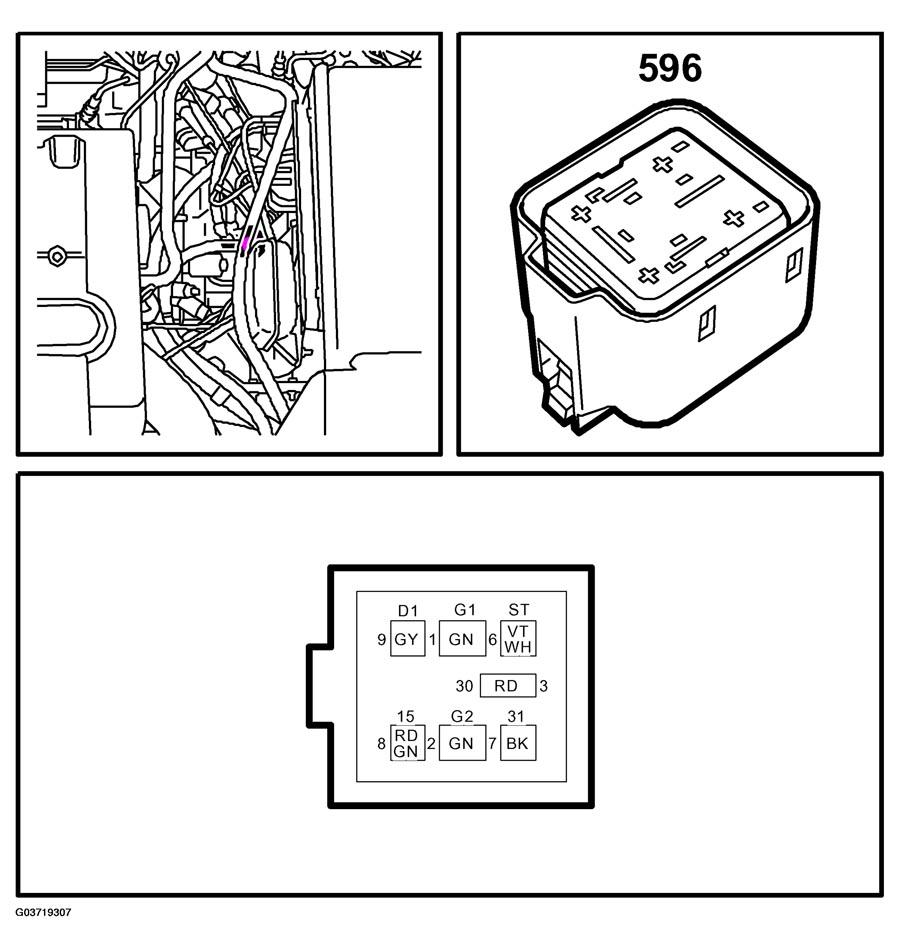

Fig 1: Control module, glow plug (596) Connector Pinouts
G03719307Courtesy of SAAB-SCANIA OF AMERICA, INC.
