Control module, rear left door (702RL): Location: J1

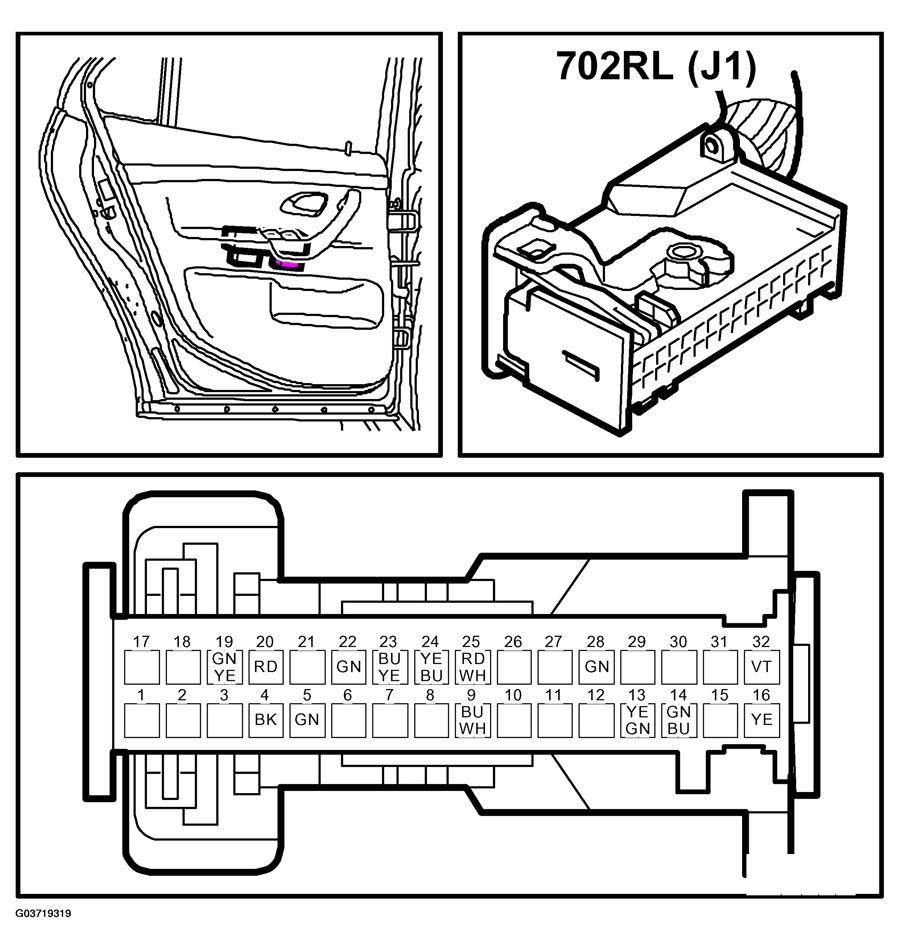

Fig 1: Control Module Rear Left Door (702Rl) J1 Connector Pinouts
G03719319Courtesy of SAAB-SCANIA OF AMERICA, INC.
