Control module, rear right door (702RR): Location

Location: in door

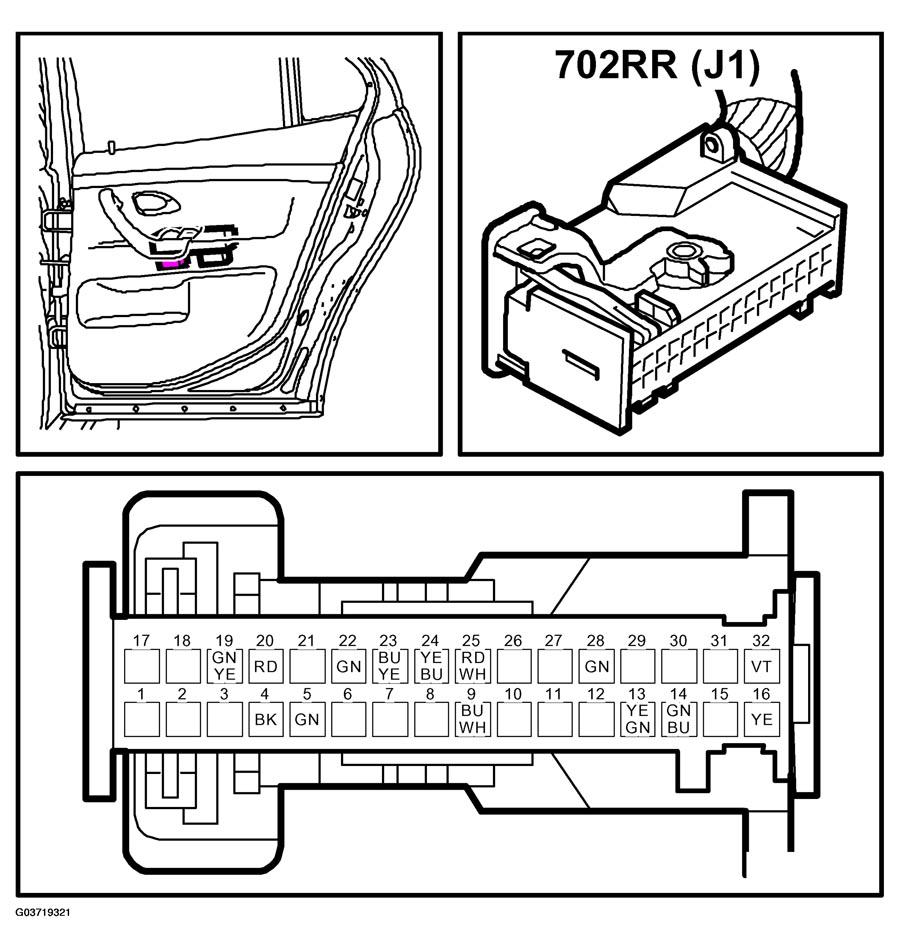

Fig 1: Identifying Control Module, Rear Right Door (702Rr)
G03719321Courtesy of SAAB-SCANIA OF AMERICA, INC.

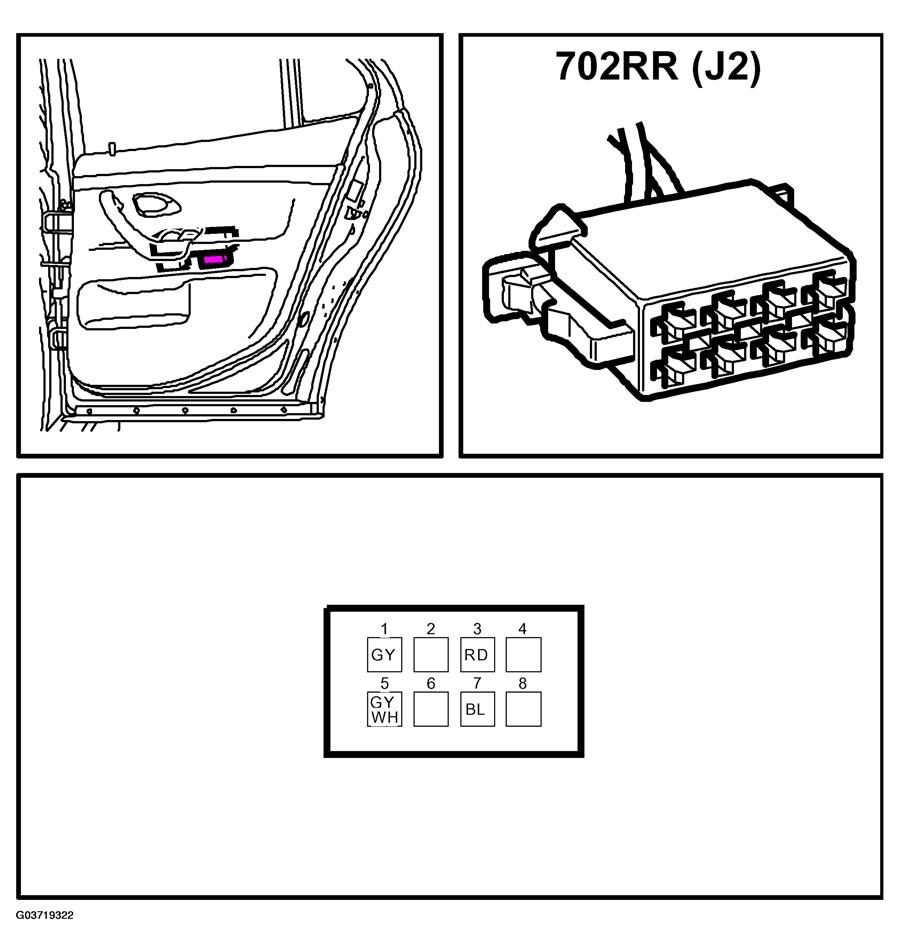

Fig 2: Identifying Control Module, Rear Right Door (702Rr) Connector Pinouts
G03719322Courtesy of SAAB-SCANIA OF AMERICA, INC.
