Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Control Module >> Component Location >> ESP control module (671) >> Location
April 5, 2026: LEMON Manuals is launched! Read the announcement.

ESP control module (671): Location

Location: Integrated in hydraulic unit behind electrical center 342 in engine bay

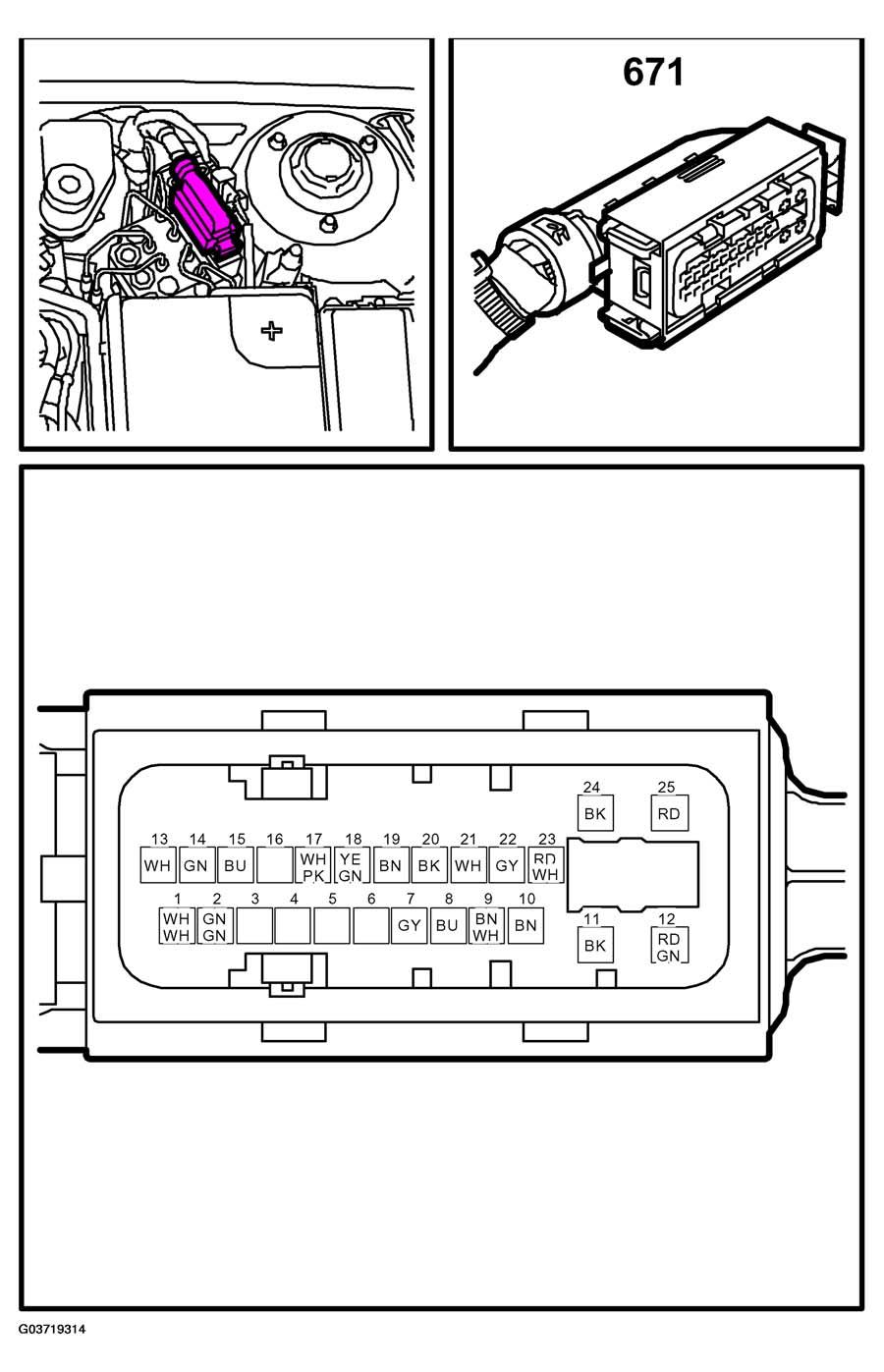

Fig 1: Identifying ESP Control Module (671) Connector Pinouts
G03719314Courtesy of SAAB-SCANIA OF AMERICA, INC.
