Infotainment control panel (736): Location

Location: Under SID

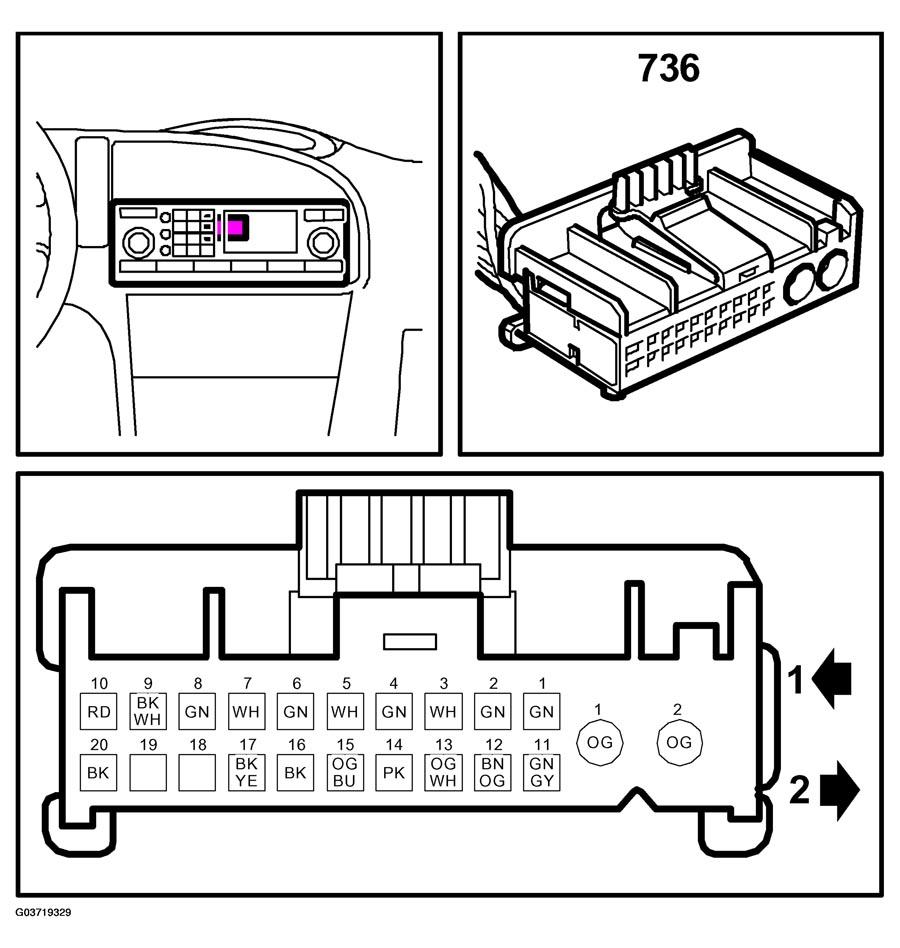

Fig 1: Identifying Infotainment Control Panel Connector Pinouts
G03719329Courtesy of SAAB-SCANIA OF AMERICA, INC.
