Ionization Detection Module (740): Location

Location: on the engine's short left side by the vacuum pump

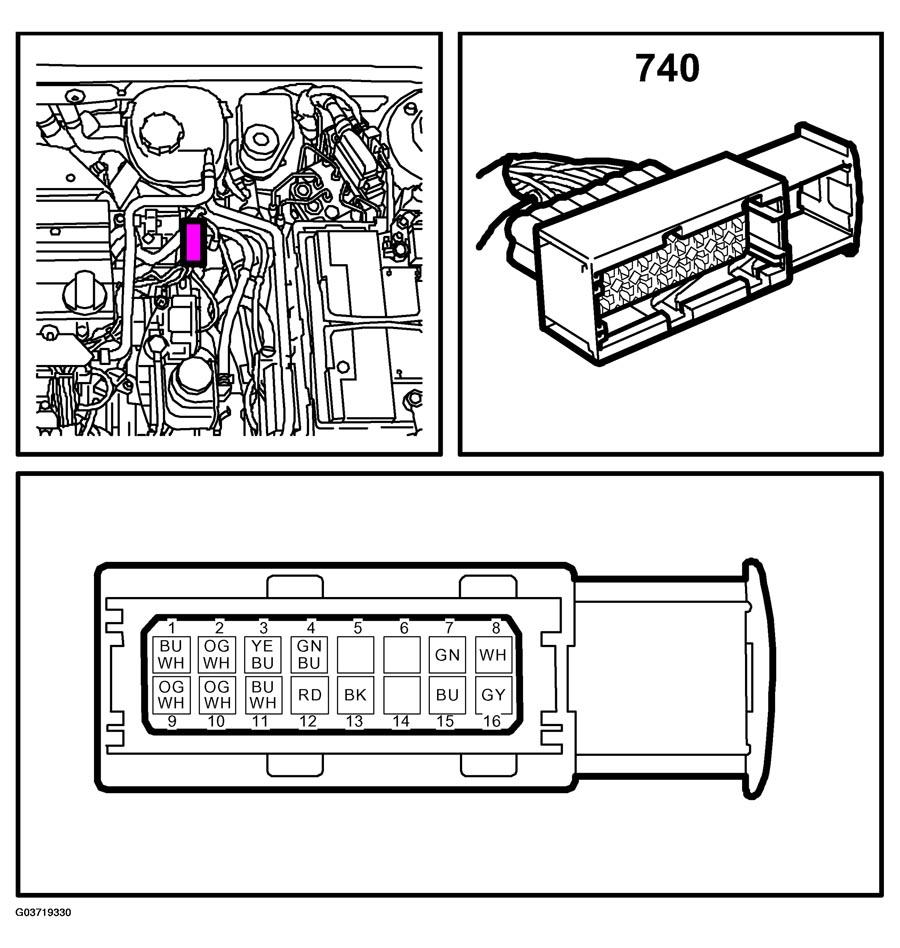

Fig 1: Ionization Detection Module Connector Pinouts
G03719330Courtesy of SAAB-SCANIA OF AMERICA, INC.
