Power steering system unit (745): Location: K5

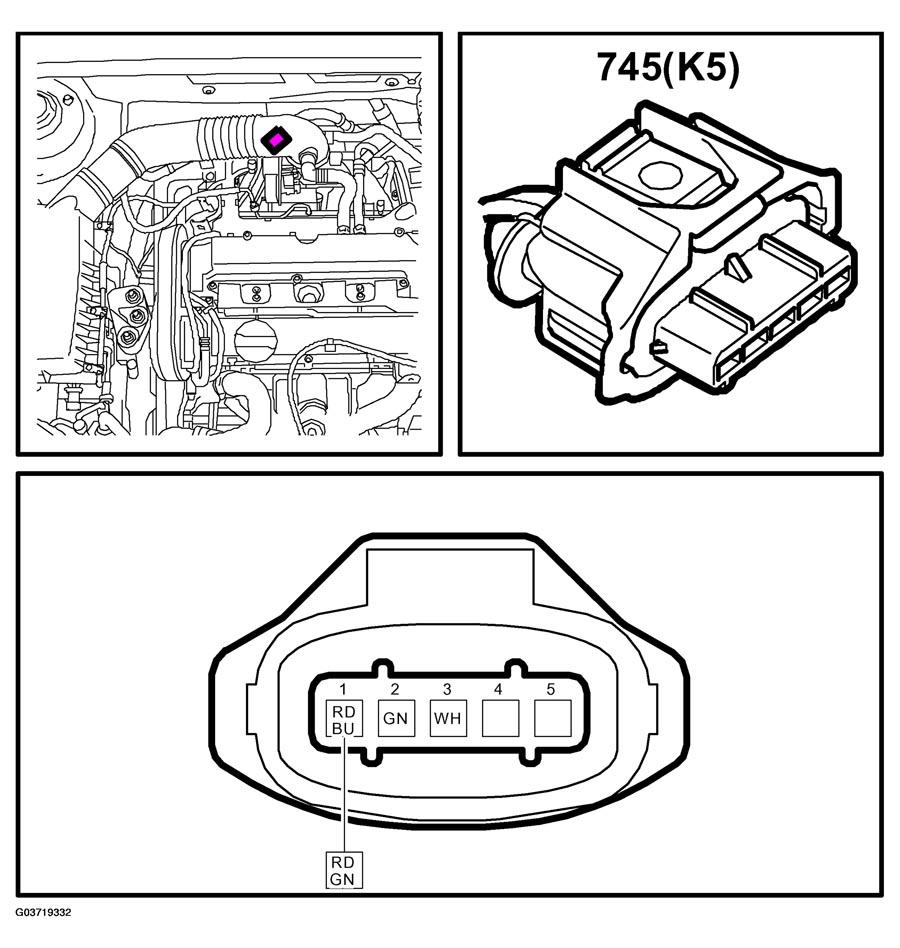

Fig 1: Power Steering System Unit Connector Pinouts (K5)
G03719332Courtesy of SAAB-SCANIA OF AMERICA, INC.
