Relay unit, radiator fans (706a): Location

Location: on top of the radiator fan cover

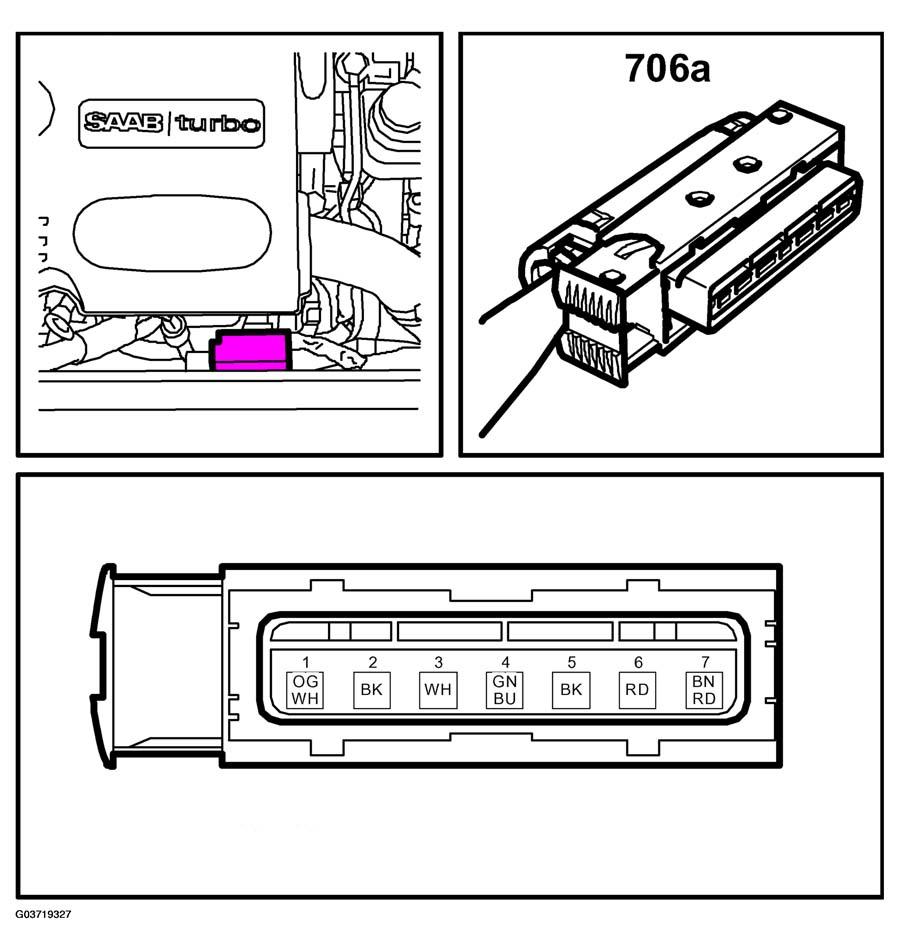

Fig 1: Identifying Radiator Fans Connector Pinouts
G03719327Courtesy of SAAB-SCANIA OF AMERICA, INC.
