TCS control module (382): Location

Location: integrated in the hydraulic unit behind the main fuse board 342 (UEC)

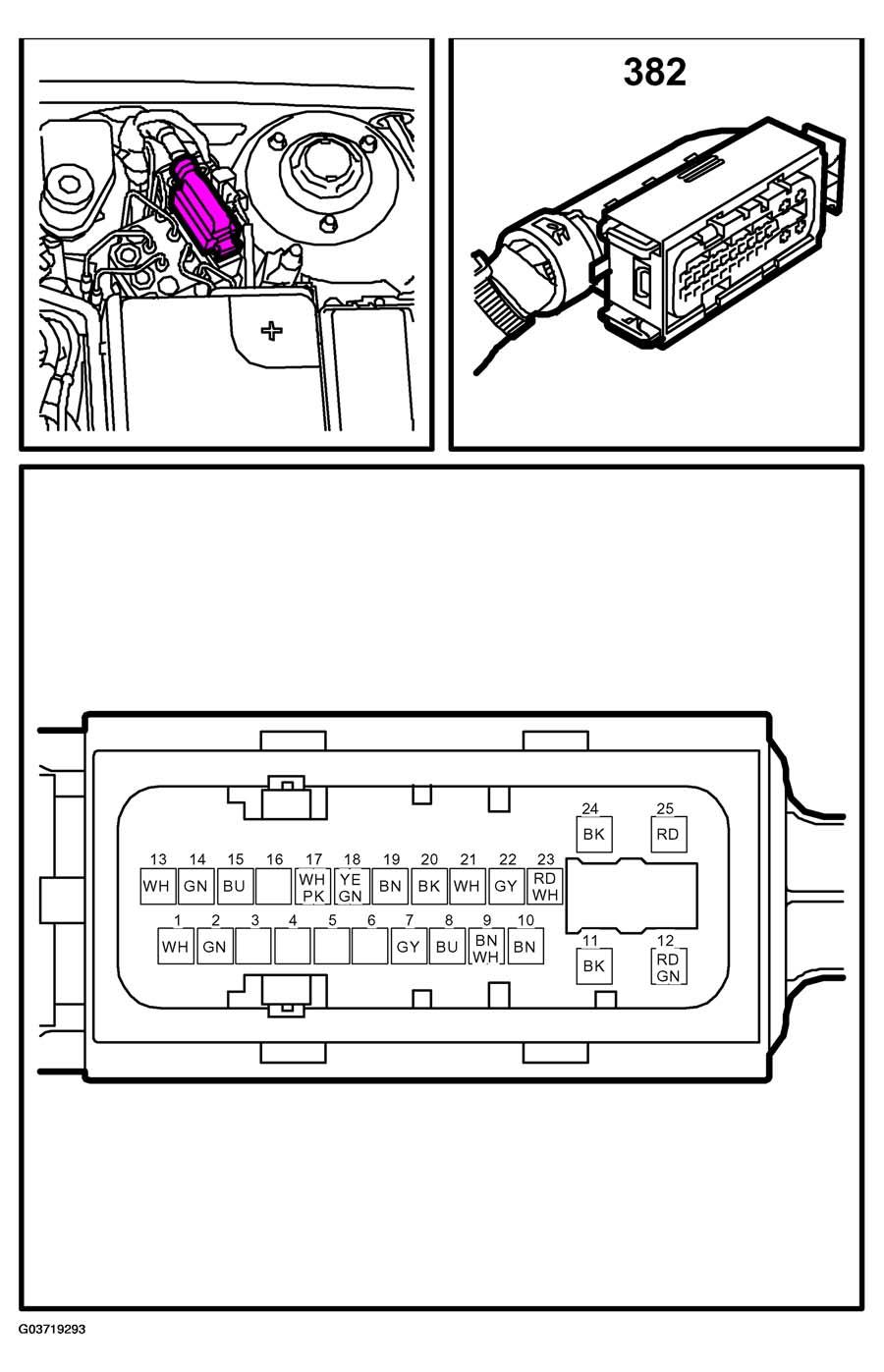

Fig 1: Identifying TCS Control Module (382) Connector Pinouts
G03719293Courtesy of SAAB-SCANIA OF AMERICA, INC.
