Trionic engine control module, 4-cyl petrol, switch B (589B): Location

Location: in front on the engine

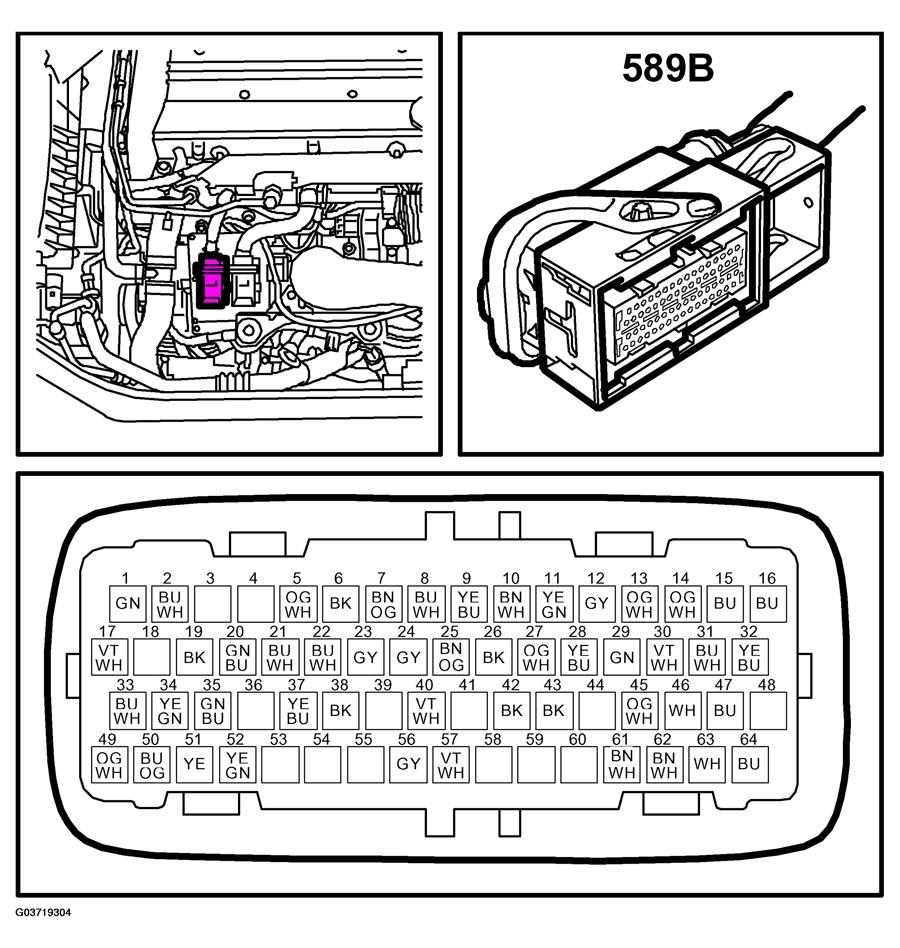

Fig 1: Identifying Trionic Engine Control Module 4-Cyl Petrol, Switch B (589B) Connector Pinouts

Courtesy of SAAB-SCANIA OF AMERICA, INC.
